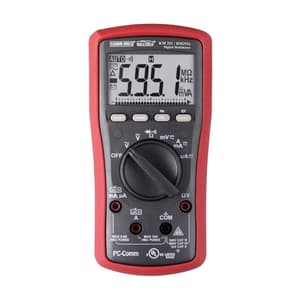

Kusam-Meco 3-5/6 Digits / 6000 Counts Digital Multimeter With EF-Detection, KM 251

• Autoranging Relative Zero Mode
• Display Hold
• 24 Segments Analog Bar-graph
• EF-Detection (NCV)
• Probe contact EF-Detection
• Low Battery Indication
• Diode & Continuity Test
• Wrong Input (test lead) warning detection (w. r. t. switch position)
• Fully Autoranging
• PC interface (optional)
• Auto Power Off
• Rugged Fire Retarded Casing
• Update Rate: 5 per second nominal (Fast Data); 40/second (24 Segments Analog Bar-graph)
• Relative Humidity: Maximum relative humidity 80% for temperature upto 31°C decreasing linearly to 50% o relative humidity at 40°C
• Temperature Coefficient: nominal 0.15x (specified accuracy) /°C @ (0°C~18°C or 28°C~40°C), or otherwise specified
• Terminals (to COM) Measurement Category: V / mAµA / A : CAT III 600V and CAT IV 300 Volts AC & DC.

Safety:

• Certified per IEC/UL/EN61010-1 Ed. 3.1, IEC/UL/ EN61010-2-033 Ed. 2.0, IEC/UL/EN61010-031 Ed. 2.0 and the corresponding CAN/CSA-C22.2 regulations to Measurement. Categories: CAT III 600V and CAT IV 300V AC & DC

E. M. C.:

• Meets EN61326-1
• In an RF field of 3V/m: Capacitance function is not specified.
• Other function ranges : Total Accuracy = Specified Accuracy + 100 digits Performance above 3V/m is not specified

Overload Protections:

• μA & mA: 0.4A/1000V DC/AC rms, IR 30kA @ 1000V DC/AC rms
• A:11A/1000V DC/AC rms, IR 20kA @ 1000V DC/AC rms
• V & AutocheckTM: 660VDC / 1100VAC rms
• mV, Ohm & others : 600V DC / VAC rms

Package Content:

• Digital Multimeter
• Test leads pair
• Carrying Case
• Batteries installed
• User's Manual
