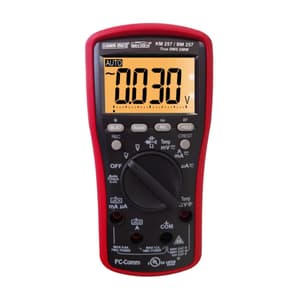

Kusam-Meco 3-5/6 Digit 6000 Counts TRMS Digital Multimeter With EF-Detection & PC Interface (20 Functions 50 Ranges), KM 257

• Autocheck V & Ω
• EF-Detection (NCV)
• Crest Mode (Peak Hold), Data Hold function
• 24 Segments Analog Bar-graph
• Backlight LCD Display
• Autoranging Relative Zero Mode
• Auto-ranging MAX/MIN record
• Wrong Input (Test Lead) warning detection (w.r. t. Switch Position)
• Auto Power Off
• Low Battery Indication
• PC interface (Optional)
• Diode & Continuity Test
• Update Rate - Fast Data: 5 per second nominal 24 Segments Analog Bar-graph: 40/second
• Relative Humidity: Maximum relative humidity is 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C
• Temperature Coefficient: nominal 0.15 x (specified accuracy)/°C @ (0°C~18°C or 28°C~40°C), or otherwise specified.

Safety:

• Double insulation per IEC61010-1 2nd Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed. & CAN/CSA C22.2 No. 61010.1-0.92 to Category II 1000V, CAT III 600V and CAT IV 300V AC & DC.
• E. M. C: Meets EN61326-1:2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11) In an RF field of 3V/m : Capacitance function is not specified. Other function ranges: Total Accuracy = Specified Accuracy + 100 digits Performance above 3V/m is not specified.
• Transient Protection: 6.5kV lightning surge (1.2/50µs)
• Terminals (to COM) Measurement Category: V - CAT II 1000 Volts and CAT III 600V and CAT IV 300 Volts AC & DC. / mAµA: CAT III 500 Volts AC and 300 Volts DC. / A: CAT III 600 Volts AC and 300 Volts DC.
• Overload Protections: µA & mA - 0.63A / 500VAC, IR 150kA, @500V AC / A: 10A / 600VAC, IR 100kA, @600VAC / V: 1050 Vrms, 1450V peak / AutoCheck, mV, Ω & Others : 600Vrms

Package Content:

• Digital Multimeter
• Test leads pair
• Carrying Case
• Batteries installed
• User's Manual
• Banana plug K-Type Thermocouple

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
