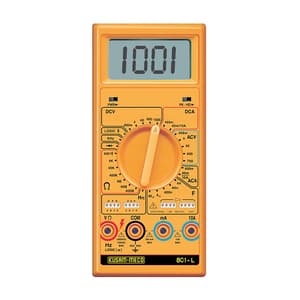

Kusam-Meco 3-3/4 Digits / 3999 Counts Large LCD Display Digital Multimeter, 801- L
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 250 g
- Display Digits: 3-3/4
- Display Counts: 3999 Counts (Max.)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,564 (Incl. of all taxes)
₹3,020 + ₹544 GST (18%)
MRP was MRP ₹3,775
Save 20%
3 Business Days
1
90303100
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
Auto range on Frequency range & measurement up to 2 MHz. Polarity - Automatic, positive implied, (-) negative polarity indication
Features & Benefits:
- Industrial Grade Rugged Digital Multimeter
- Automatic Zero adjustment
- Peak Hold Function
- Overload Protection 500V DC or AC rms
- Logic Test, Diode & Continuity Test & Transistor hFE Test.
- Low battery indication
- Low battery - The "
" sign is displayed when the battery voltage drops below the operating Voltage.
Package Content:
- Test Leads
- Carrying Case
- User's Manual & Battery
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Sensing | Average Sensing |
|---|---|
| Basic Accuracy | ±(0.5%rdg + 1dgt) |
| Display Digits | 3-3/4 |
| Display Counts | 3999 Counts (Max.) |
| Display Size | 17.5 mm |
| Display Type | Large LCD Display |
| Measurement Rate | 2.5 Measurements / Sec |
| Over Range Indication | OL |
| Operating Temperature | 0°C to 45°C; < 70%R.H. |
| Storage Temperature | -20 °C to 60 °C;< 80%R.H. (With Battery Removed) |
| Power Supply | 1 x Standard 9V Battery |
| Dimension (LxWxH) | 170 x 80 x 40 mm |
