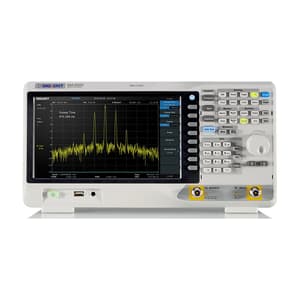

Kusam-Meco Siglent 9 kHz - 3.2 GHz Digital Storage Oscilloscopes (Spectrum Analyzer), SSA3032X
Roll over the image to zoom in
Key Features
- Product Type: Spectrum Analysers
- Frequency Range: 9 kHz - 3.2 GHz
- Amplitude Precision: < 0.7 dB
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,40,319 (Incl. of all taxes)
₹2,03,660 + ₹36,659 GST (18%)
MRP was MRP ₹2,54,575
Save 20%
3 Business Days
1
90302000
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
Siglent’s SSA3000X series of spectrum analyzers have a frequency range of 9 KHz to 2.1 GHz / 3.2 GHz. With their lightweight, small size, and friendly user interface, the SSA3000s offer a bright easy-to-read display, powerful and reliable automatic measurements, and plenty of powerful features. Applications are many but include research and development, education, production, maintenance, and many more.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- All-Digital IF Technology
- Standard Preamplifier
- Reflection Measurement Kit (Opt.)
- Advanced Measurement Kit (Opt.)
- EMI Pre-compliance Test Kit (Opt.)
Technical Data:
| Frequency | |
| Frequency range | 9 kHz - 3.2 GHz |
| Frequency resolution | 1 Hz |
| Frequency Span | |
| Range | 0 Hz, 100 Hz to 3.2 GHz |
| Accuracy | ± Span / (Number of Sweep Points - 1) |
| Internal Reference Source | |
| Reference frequency | 10.000000 MHz |
| Frequency reference accuracy | ± ((Time since last adjustment × Frequency aging rate) + Temperature stability + Calibration accuracy) |
| Initial calibration accuracy | < 1 ppm |
| Temperature stability | < 1 ppm/year, 0°C - 50°C |
| Frequency aging rate | < 0.5 ppm/first year, 3.0 ppm/20 years |
| Marker | |
| Marker resolution | Span / (number of sweep points - 1) |
| Marker uncertainty | ± (Frequency Indication × Frequency Reference Uncertainty + 1% × Span + 10% × Resolution Bandwidth + Marker Resolution) |
| Frequency counter resolution | 1 Hz |
| Frequency counter uncertainty | ± (frequency indication × frequency reference accuracy + counter resolution) |
| Bandwidths | |
| Resolution bandwidth (-3dB) | 10 Hz ~ 1 MHz, in 1-3-10 sequence |
| Resolution filter shape factor | < 4.8:1 (60 dB:3 dB), Gaussian-like |
| RBW uncertainty | < 5% |
| Video bandwidth (-3dB) | 1 Hz ~ 3 MHz, in 1-3-10 sequence |
| VBW uncertainty | < 5% |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Frequency Range | 9 kHz - 3.2 GHz |
|---|---|
| Displayed Average Noise Level (Typ.) | -161 dBm/Hz (Normalize to 1 Hz) |
| Phase Noise | < -98 dBc/Hz @ 1 GHz, 10 kHz offset |
| Amplitude Precision | < 0.7 dB |
| Resolution Bandwidth | 10 Hz ~ 1 MHz (1-3-10 sequence) |
| Tracking Generator Kit (Opt.) | Up to 3.2 GHz |
| Display | 10.1 lnch WVGA (1024 x 600mm) |
