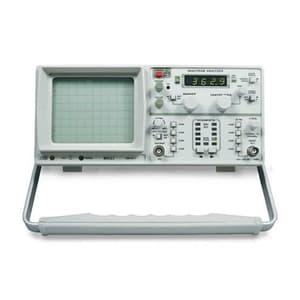

Metravi 1050MHz Spectrum Analyzer With Marker Generator, AT-5011
Roll over the image to zoom in
Key Features
- Product Type: Spectrum Analysers
- Frequency Range: 0.15 MHz - 1050 MHz
- Accuracy: ±100kHz
- Input Impedance: 50 Ohms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,05,816 (Incl. of all taxes)
₹1,74,420 + ₹31,396 GST (18%)
MRP was MRP ₹2,56,500
Save 32%
5 Business Days
1
90302000
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Frequency Range | 0.15 MHz - 1050 MHz |
|---|---|
| Accuracy | ±100kHz |
| Resolution | 100kHz |
| Frequency scan width | 100kHz/div to 100MHz/div |
| Frequency Stability | Better than 150 kHz/ hour |
| Video-Filter On | 4kHz |
| Amplitude Measurement Range | -100dBm to +13dBm |
| Input Impedance | 50 Ohms |
| Input connector | BNC |
| Display | LED |
| Input attenuator accuracy | 1dB/10 step |
| Sweep Rate | 43Hz |
| Average Noise Level | -99dBm (20 kHz BW) |
| Input attenuator | 0 to 40 dB (4x10dB steps) |
| Output Attenuator | 0 to 40dB (4 x 10dB steps) |
| Output Attenuator Accuracy | ±1dB |
| Output Impedance | 50O (BNC) |
| Frequency Response | ±1.5dB |
| Radio Frequency Interference | <20dBc |
| Sensitivity | <5dB above average noise level |
| Log scale fidelity | ±2dB (without attn.) Ref.: 250MHz |
| Output level range | -50dBm to +1dBm (in 10dB steps and var.) |
| Distortion | <-75 dBc: 2nd and 3rd harmonic, 3rd order intermod.:-70dBc |
