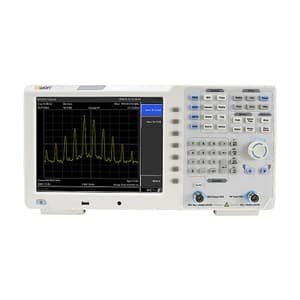

Owon 9 KHz - 7.5 GHz / 1Hz Spectrum Analyzer With Tracking Generator Kit, XSA 1075-TG
Roll over the image to zoom in
Key Features
- Product Type: Spectrum Analysers
- Frequency Range: 9 kHz - 7.5 GHz
- Frequency Resolution: 1Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,32,180 (Incl. of all taxes)
₹4,51,000 + ₹81,180 GST (18%)
MRP was MRP ₹5,50,000
Save 18%
5 Business Days
1
–
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available

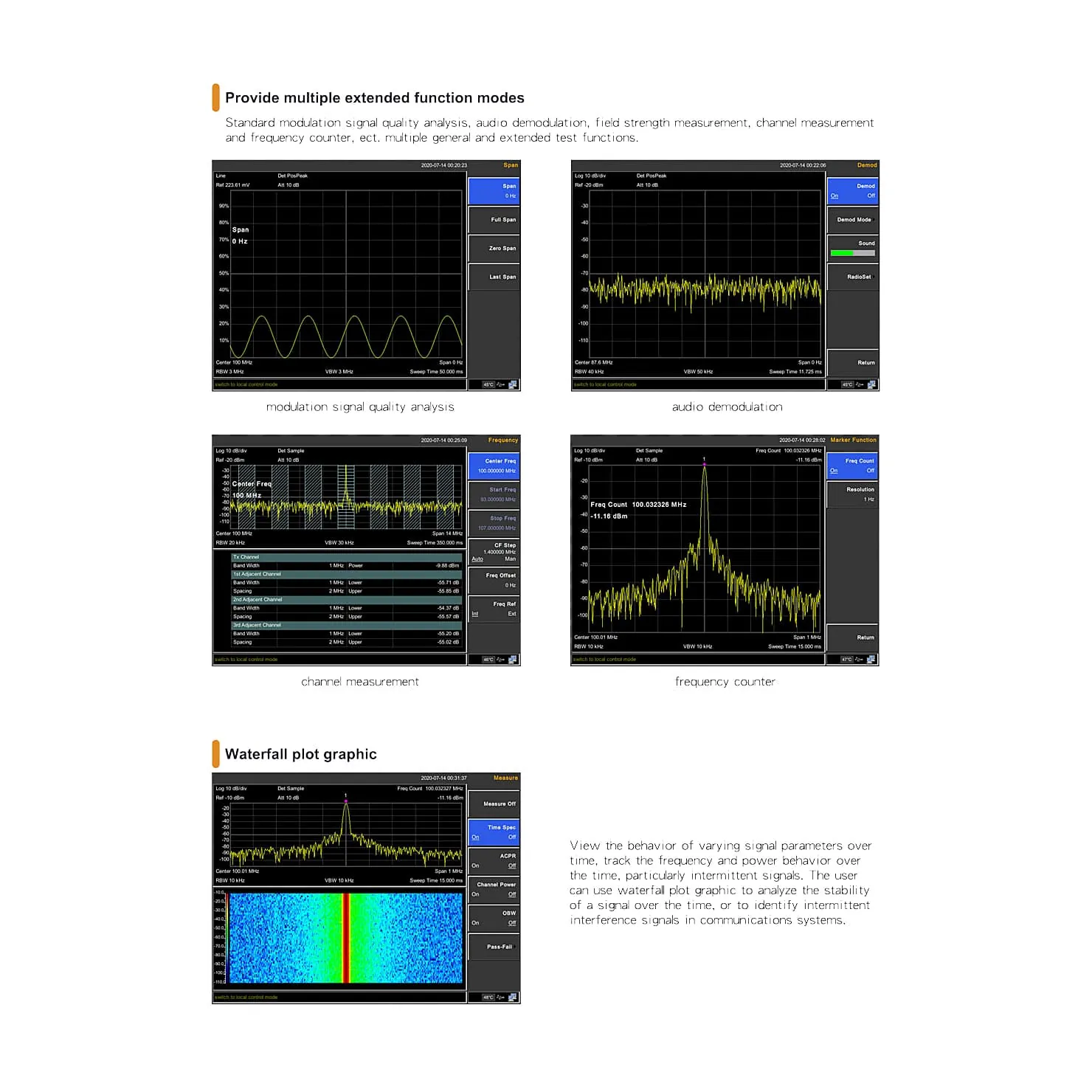

Highlights

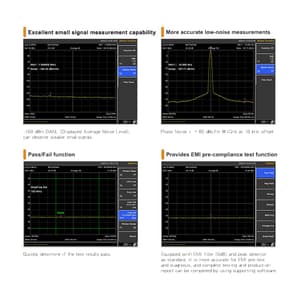

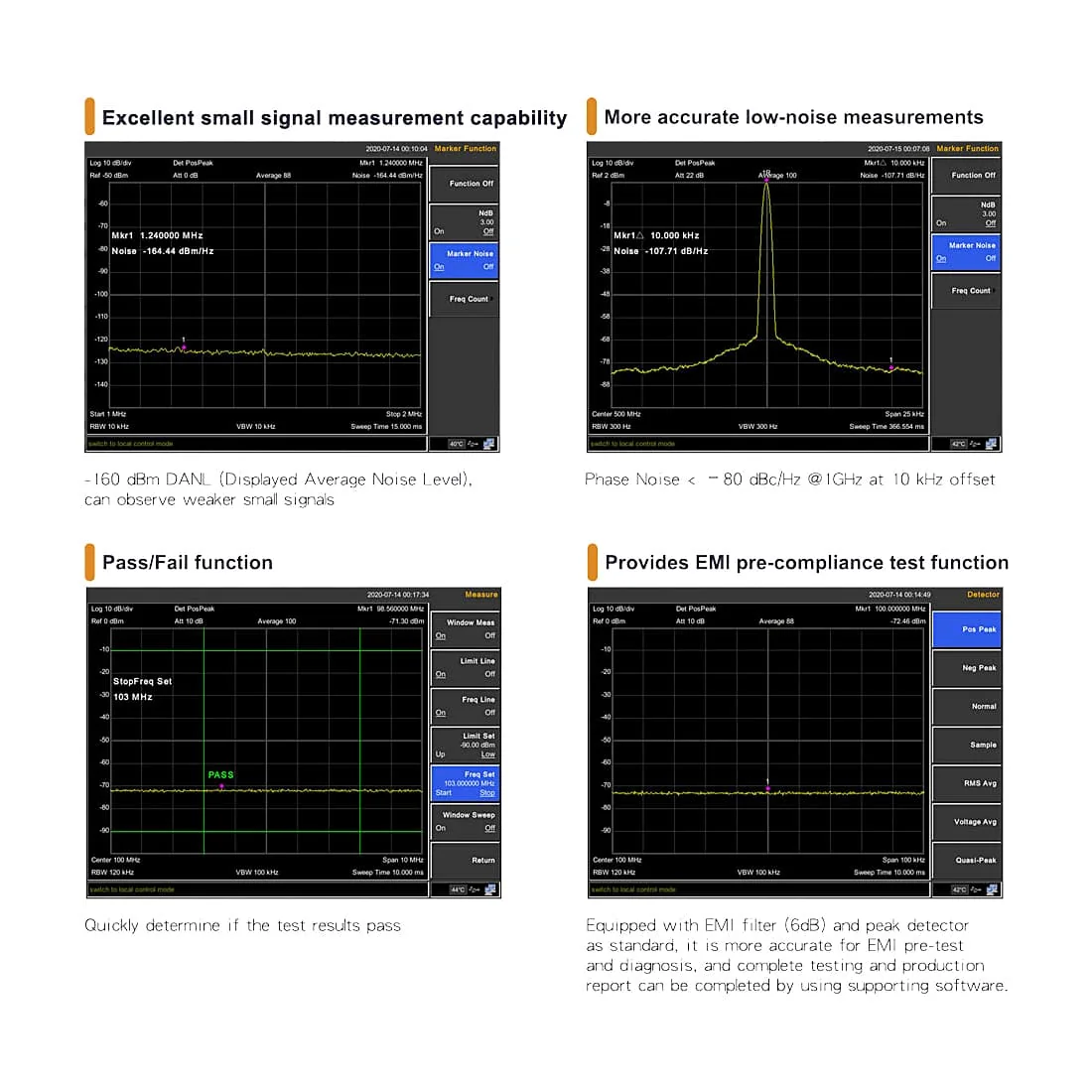

- -160dBm Displayed Average Noise Level
- Phase Noise -98dBc/Hz @1Gz and offset at 10KHz
- Total Amplitude Accuracy <1.5dB
- 10Hz Minimum Resolution Bandwidth (RBW)

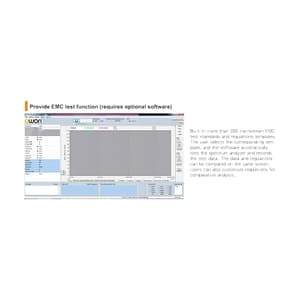

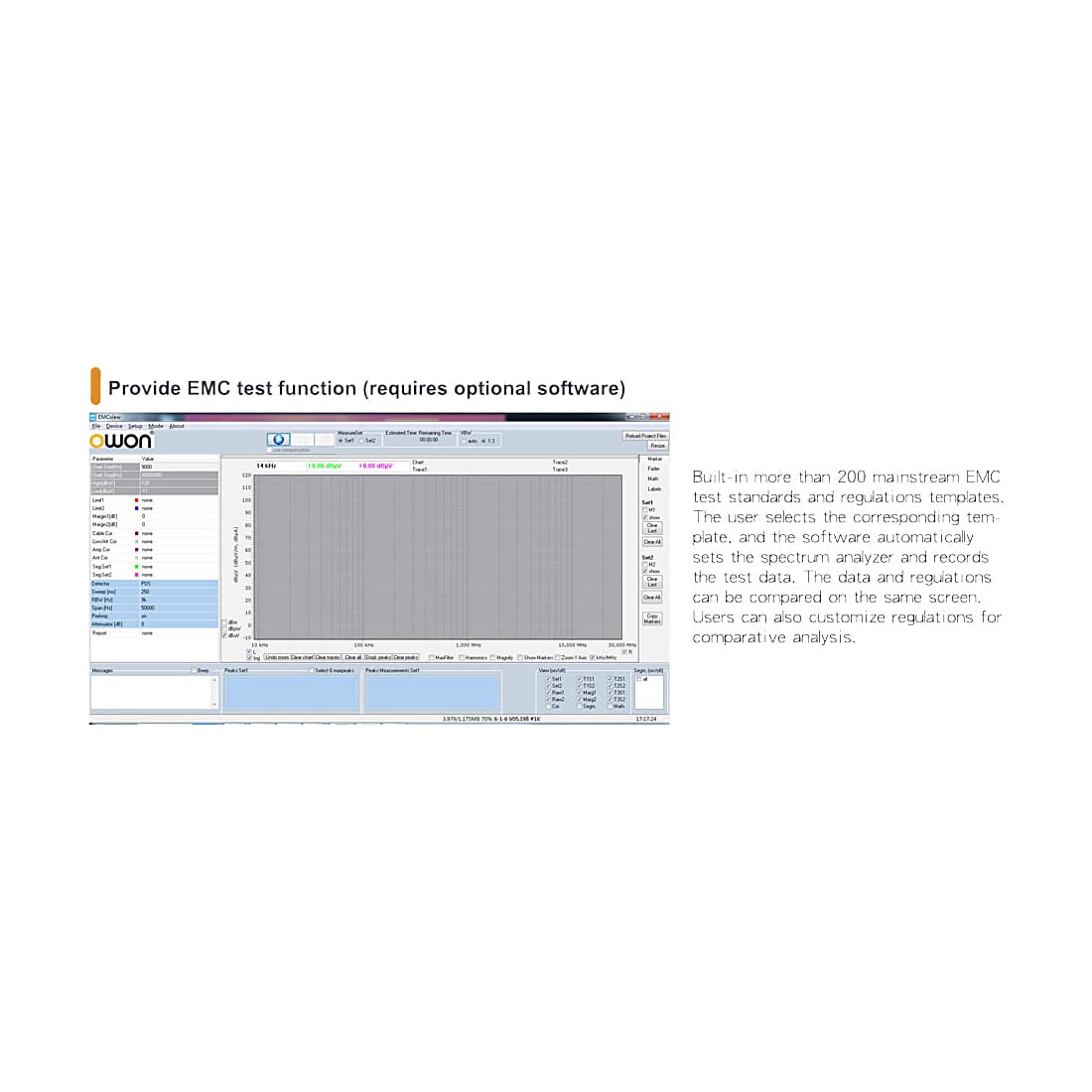

- EMI Pre-compliance Test Kit, optional EMC test software
- Standard Pass/Fail on-site test alert ability
- Up to 7.5 GHz Tracking Generator Kit
Technical Data for Amplitude:
| Amplitude and electric level | |
| Amplitude measurement range | DANL to +20 dBm, close the preamplifier |
| Reference electric level | -80 dBm to +30 dBm,0.01dBm steps |
| Preamplifier | 20 dB, nominal |
| Input attenuator range | 0~50 dB, 1 dB steps |
| Max input DC voltage | 50 VDC |
| Max continuous power | +30dBm, average continuous power |
| Displayed average noise level (DANL) Input attenuation 0 dB, 1Hz resolution bandwidth | |
| Preamp off | 1 MHz~10 MHz -140dBm (nominated) |
| 10 MHz~1GHz -140dBm (nominated) | |
| 1GHz~3.6GHz -138dBm (nominated), 4GHz~5GHz,-133dBm (nominated), 5GHz~6GHz,-128dBm (nominated), 6GHz~7GHz-123dBm (nominated), 7GHz~7.5GHz,-118dBm (nominated) | |
| Preamp on | 1 MHz~10 MHz -160dBm(nominated) |
| 10 MHz~1GHz -160dBm(nominated) | |
| 1GHz~4GHz -158dBm (nominated ); 4GHz~5GHz -153dBm (nominated); 5GHz~6GHz -148dBm (nominated); 6GHz~7GHz -143dBm (nominated); 7GHz~7.5GHz -138dBm (nominated) | |
| Phase noise | 20°C ~ 30°C,fc=1 GHz |
| Phase noise | <-98 dBc/Hz @10 kHz offset |
| <-100 dBc/Hz @100 kHz offset | |
| <-110 dBc/Hz @1 MHz offset | |
| Level display range | |
| Log scale coordinate | 1dB ~255dB |
| Linear scale coordinate | 0 to reference level |
| level unit | dBm, dBuW, dBpW, dBmV, dBuV, W,V |
| Points | 201~1001 |
| Number of traces | 5 |
| Detectors | Positive-peak, negative-peak, sample, normal, RMS |
| Trace functions | Clear write, Max Hold, Min Hold, View, Blank, Average |
| Frequency response | |
| 20°C ~30°C, 30% ~ 70% relative humidity, 20 dB input attenuation, reference 50 MHz | |
| Preamp off | ±0.8 dB |
| Preamp on | ±0.9 dB |
| Accuracy | |
| Input Attenuation Switching Uncertainty | 20°C ~30°C, fc=50 MHz, Preamplifier Off, 20dB RF attenuation, input signal 1~40 dB ±0.5 dB |
| Absolute Amplitude Uncertainty |
|
| Uncertainty | input signal range 0dbm~-50dbm |
| ±1.5 dB | |
| VSWR | input 20 dB,1 MHz~7.5GHz |
| <1.5,nominal | |
| Distortion and spurious response | |
| Second harmonic distortion | fc ≥ 50 MHz,Preamp off, signal input -30 dBm, 0 dB RF attenuation, 20 to 30°C |
| -65dbc | |
| Third-order intermodulation | fc ≥ 50 MHz |
| +10dBm (NSA1075) | |
| 1 dB Gain Compression | fc ≥ 50 MHz, 0 dB RF attenuation, Preamp off , 20 to 30°C |
| +2 dBm, nominal | |
| Residual response | connect 50 Ω load at input port,0 dB input attenuation,20 to 30°C |
| <-85dBm, nominated | |
| Input related spurious | -30 dBm signal at input mixer, 20 to 30°C |
| <-60 dBc | |
| Sweep time and triggering | |
| Span range |
|
| Mode | Continue, single |
| Trigger | Free run, video |
| Tracking generator | |
| Output frequency range | 100 kHz~7.5 GHz(Tracking generator) |
| Output power level range | -40 dBm ~ 0 dBm |
| Output power level resolution | 1dB |
| Output flatness | +/-3 dB |
| Maximum safe reverse level | Average total power: +30 dBm,DC: ±50 VDC |
| Inputs and Outputs | |
| Front panel RF input connector | 50Ω, N-type female |
| Front panel track generator output | 50Ω, N-type female |
| 10 M reference input | 50Ω, N-type female |

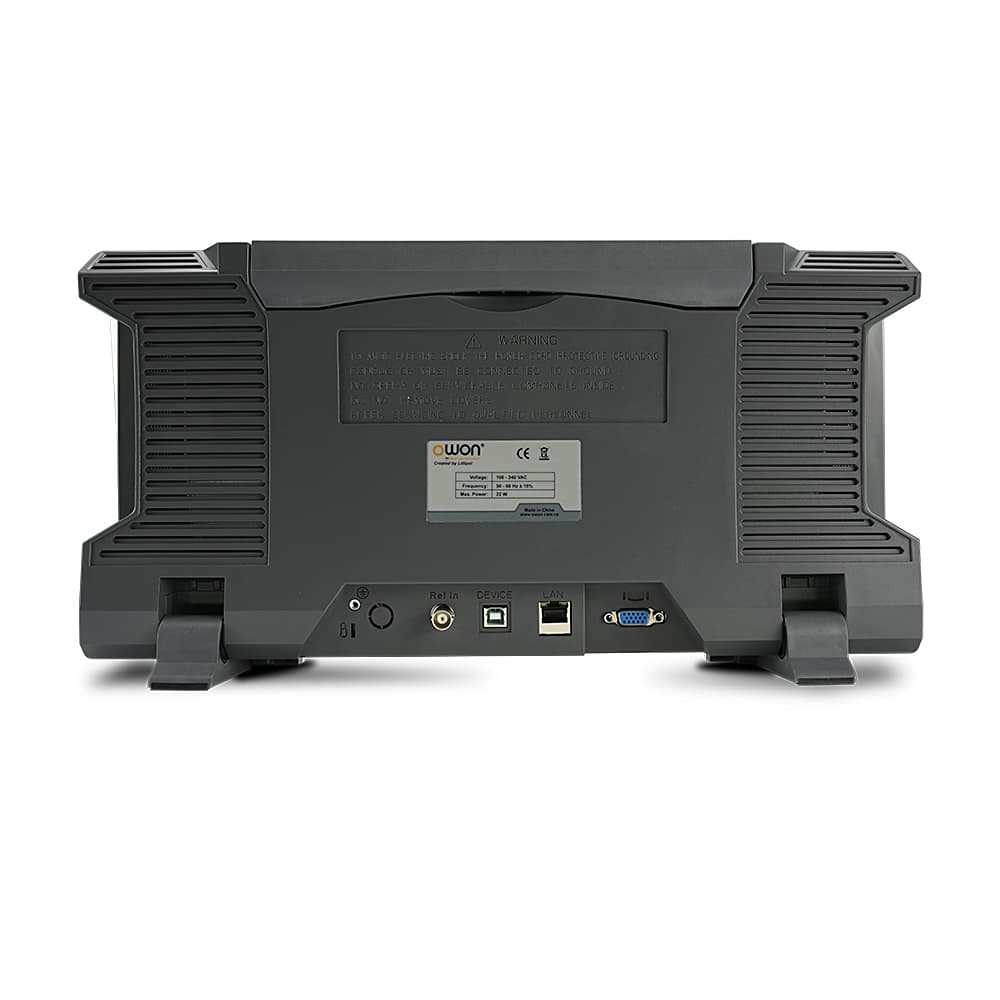

| Communication port | USB HOST, USB DEVICE, LAN, earphone port, REF and VGA |
What's Included In This Package:
- Spectrum Analyzer
- Power Cord
- CD Rom
- Quick Guide
- N-SMA Adaptor
- N-BNC Adaptor
- N-N Cable (optional)
- N-SMA Cable (optional)
- SMA-SMA Cable (optional)
- SMA Adaptor (optional)
- Near Field Probe (optional)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Frequency Range | 9 kHz - 7.5 GHz |
|---|---|
| Frequency Resolution | 1Hz |
| Frequency Span Range | 0 Hz, 100 Hz to maximum frequency of device |
| Frequency Span Accuracy | ± Span / (swept points -1) |
| Reference Frequency | 10.000000 MHz |
| Reference Frequency Accuracy | ±(days from last calibrate × freq aging rate) + temperature stability + initial accuracy |
| Temperature Stability | <1ppm (15 to 35°C) |
| Aging Rate | <1ppm/year |
| Marker Frequency Resolution | Span/ (The number of sweep points -1) |
| Uncertainty | ± (freq indication × freq reference uncertainty +1%× span +10%× resolution bandwidth + Marker Frequency Resolution) |
| Frequency Counter Resolution | 1 Hz, 10 Hz, 100 Hz & 1 kHz |
| Frequency Counter Accuracy | ± (marker freq × freq reference uncertainty + counter resolution) |
| Resolution Bandwidth (-3 dB) | 10Hz to 500kHz (in 1 to 10 Sequence), 1MHz, 3MHz |
| Resolution Filter Shape Factor | <5: Nominal (Digital implement, similar to Gauss Pattern) |
| Bandwidth Accuracy | <5% Nominal |
| Video Bandwidth (-3 dB) | 10Hz to 3MHz |
| Display | TFT LCD, 10.4 inches |
| Working Temperature | 0 ~ 40°C |
| Storage Temperature | -20 to +60°C |
| Power | 100V ~ 240V 50/60Hz |
| Dimension (W × H × D) | 421 × 221 × 115 (mm) |
