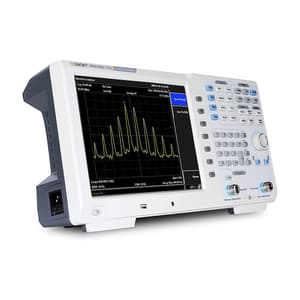

Owon 9 KHz - 3.6 GHz / 1Hz Spectrum Analyzer With Tracking Generator Kit, XSA 1036-TG
Roll over the image to zoom in
Key Features
- Product Type: Spectrum Analysers
- Frequency Range: 9 KHz - 3.6 GHz
- Frequency Resolution: 1Hz
- Aging Rate: <1ppm/year
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,45,770 (Incl. of all taxes)
₹2,08,280 + ₹37,490 GST (18%)
MRP was MRP ₹2,54,000
Save 18%
5 Business Days
1
90302000
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available
Highlights
The Owon XSA1036TG Spectrum Analyzer, 9KHz-3.6GHz, with Tracking Generator Kit offers a minimum bandwidth of 10Hz, allowing excellent signal resolution when separation of closely spaced signals is required. This model also offers a DANL (displayed average noise level) down to -130 dBm, which is able to measure smaller signals. 3.6GHz., Tracking Generator, Coloured LCD 10.4", VGA, PhoneJack, USB+Software.

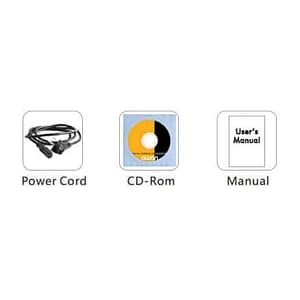

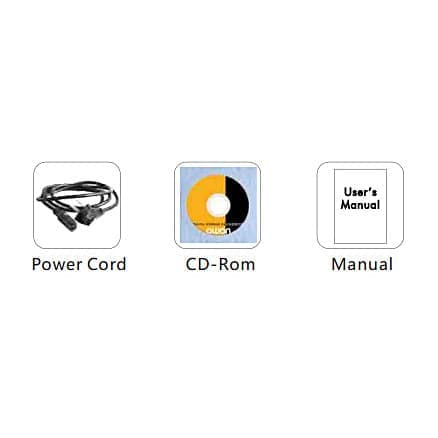

What's Included In This Package:
- Power Cord
- CD-Rom
- Manual
Features:
|
|
|
XSA1015TG Series Spectrum Analyzer
|
|

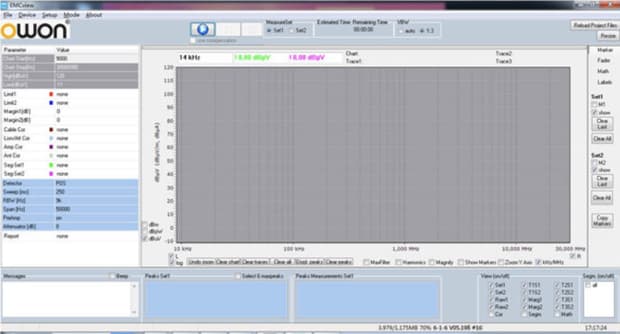

Provide EMC test functionWith the more then 200 mainstream Built-in EMC test standards and regulations templates. The user selects the corresponding template, and the software automatically sets the spectrum analyzer and records the test data. The data and regulations can be compared on the same screen. Users can also customize regulations for comparative analysis. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Frequency Range | 9 KHz - 3.6 GHz |
|---|---|
| Frequency Resolution | 1Hz |
| Aging Rate | <1ppm/year |
| Resolution Bandwidth(-6db) | 200Hz,9kHz,120KHz |
| Video Bandwidth(-3db) | 10Hz-3MHz,1-3-10 step |
| 100kHz-1MHz | -150dBm(typ.) |
| 1MHz-5MHz | -150dBm(typ.) |
| 5MHz-1.5GHz | -148dBm(typ.) |
| Level Measurement Uncertainty | < 1.5db(nom.) |
| TG Frequency Range | 100kHz-1.5GHz |
| TG Output Level Range | -30dBm-0dbm |
| SSB Phase Noise(fc=1GHz) | <-85dbc/Hz@10kHz offset / <-100dBc/Hz@100kHz offset(typ.) |
| Resolution Bandwidth(-3db) | 10Hz -500kHz, 1-10 step; 1MHz-3MHzMHz |
| Units of Level Axis | dBm, dBpW, dBμW, W, dBμV, dBmV,V |
| Trace Detectors | position-peak, negative-peak, sample, normal, RMS |
| Trace Functions | Clear write, max hold, min hold, view, blank, average |
| Displayed Average Noise Level(DANL) | PA on, RBW=VBW=100Hz, sample detector, trace average = 50, tracking generator off, normalized to 1Hz |
| TG Output Level Resolution | 1dB |
| Interfaces | LAN, USB, VGA, phone jack |
