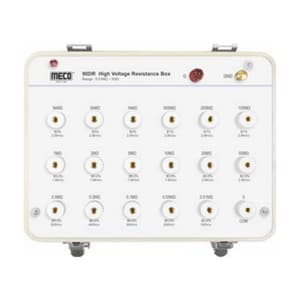

Meco 100V - 2.5kV High Voltage Resistance Box, 90DR
Roll over the image to zoom in
Key Features
- Product Type: Process Calibrators
- Weight: 3.6 kg
- Resistance Range: 0.01M ohms ~ 5G ohms
- Working Temperature: 20 ± 5°C (Typical) / 20 ± 5°C (Reference)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,02,267 (Incl. of all taxes)
₹86,667 + ₹15,600 GST (18%)
MRP was MRP ₹1,01,961
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
- Checking of HV Insulation Testers
- Research Laboratories
- Factories
- School & Institute
- Accreditation Laboratories
- Certification Agencies
Features:
- 17 Selectable Fixed Resistance Values: 0.01MΩ, 0.05MΩ, 0.1MΩ, 0.2MΩ, 0.5MΩ, 1MΩ, 2MΩ, 5MΩ, 10MΩ, 20MΩ, 50MΩ, 100MΩ, 200MΩ, 500MΩ, 1kMΩ, 2kMΩ, 5kMΩ
- Accuracy: ±0.2%, ±0.2%, ±0.2%, ±0.2%, ±0.2%, ±0.2%, ±0.2%, ±0.2%, ±0.5%, ±0.5%, ±0.5%, ±1%, ±1%, ±1%, ±2%, ±2%, ±2% (respectively)
- Voltage Range (DC): 100V, 200V, 300V, 400V, 500V, 1kV, 1kV, 1kV, 1kV, 2.5kV, 2.5kV, 2.5kV, 2.5kV, 2.5kV, 2.5kV, 2.5kV, 2.5kV (respectively)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Resistance Range | 0.01M ohms ~ 5G ohms |
|---|---|
| Working Temperature | 20 ± 5°C (Typical) / 20 ± 5°C (Reference) |
| Storage Temperature | -10 ~ 40°C, < 75% RH |
| Humidity | 25% ~ 75% (Typical) / 30% ~ 60% (Reference) |
| Insulation Resistance between Circuit and Housing | > 500G ohms |
| Maximum With Stand Voltage Between Circuit and Housing | 2000V AC For < 60 Seconds |
| Dimension | 310 x 240 x 160 mm |
