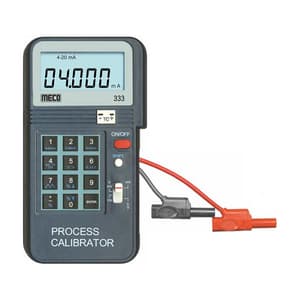

Meco 24V / 24 mA Multifunction Process Calibrator, 333
Roll over the image to zoom in
Key Features
- Product Type: Process Calibrators
- Weight: 330 g
- Frequency: 1 - 62500 Hz
- DC Current: 0.025% (Basic Accuracy)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹50,642 (Incl. of all taxes)
₹42,917 + ₹7,725 GST (18%)
MRP was MRP ₹50,490
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Multifunction Process Calibrator - Provides Standard Output for mA, mV, V, Frequency, K, J, E and T Thermocouples
Features:
- 4 - 20mA (1KΩ Load, 24V Loop Supply) with1mA Resolution
- 0 -100.00mV, 0-1.0000V, 0-12.000V
- K, J, E & T Thermocouples (°C and °F)
- Easy Key Pad Number Operation
- Easy Step and Auto Ramp Functions
- 0-20mA & 0-24mA Selectable
- 0-100% Output (mA, mV, V)
- Beeper Warning when Output is Open (mA) or Short (mV, V)
Battery Type:
-
9V Eveready Type 216 or Equivalent & External Battery Pack (6 x 1.5 V AA Batteries)
Accessories:
- Alligator Test Leads x 1 Pair
- External Battery Pack Holder 1.5V 'AA' Battery x 6 Pcs
- 9V Battery x 1 Pc
- Instruction Manual x 1 Pc
- Carrying Case x 1 Pc
- K Type Thermocouple Connector x 1 Pc
Electrical Specification:
- 23°C ± 5°C, 10 minutes after power is on):
| mA DC Current (1KV max. Load, 24V Loop Supply) | ||
| Range | Resolution | Accuracy |
| 4-20 mA, 0-20 mA, 0-24 mA | 1 mA | ± 0.025%rdg ± 3mA |
| mV, V DC Voltage (1mA Supply Current) | ||
| Range | Resolution | Accuracy |
| 0-100.00 mV | 10 mV | ± 0.05%rdg ± 30mV |
| 0-1.0000 V | 100 mV | ± 0.05%rdg ± 300mV |
| 0-12.000 V | 1 mV | ± 0.05%rdg ± 3mV |
- Beeper Warning when Output is short and specified Voltage Output >10mV:
| Frequency (1KV Load Min.) | ||
| Range | Resolution | Accuracy |
| 1-125 Hz | 1 Hz | ± 0.04 Hz |
| 126-62500 Hz | 1 Hz | ± 0.01% ± 0.04 Hz |
- Beeper Warning when Output is Open and specified Current Output >1mA:
| K, J, E and T Type Thermocouples (1° C, 1° F Resolution, 1K ohms Load Min.) | |||
| Range (°C) | Accuracy (°C) | Range (°F) | Accuracy (°F) |
| K: -200 to -100 | ± 2.0 | K: -328 to -148 | ± 3.6 |
| K: -100 to 0 | ± 1.1 | K: -148 to 32 | ± 1.8 |
| K: 0 to 1370 | ± 0.8 | K: 32 to 2400 | ± 1.5 |
| J: -100 to 0 | ± 0.9 | J: -148 to 32 | ± 1.6 |
| J: 0 to 760 | ± 0.7 | J: 32 to 1400 | ± 1.2 |
| E: -100 to 0 | ± 0.9 | E: -148 to 32 | ± 1.6 |
| E: 0 to 700 | ± 0.7 | E: 32 to 1292 | ± 1.2 |
| T: -200 to 0 | ± 1.0 | T: -328 to 32 | ± 1.8 |
| T: 0 to 400 | ± 0.8 | T: 32 to 752 | ± 1.5 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Frequency | 1 - 62500 Hz |
|---|---|
| DC Current | 0.025% (Basic Accuracy) |
| Operating Environment | 0° to 50° C (32 to 122°F), RH <85% |
| Storage Environment | -20° C to 60° C (-4 to 140° F), RH <85% |
| Dimensions | 88 x 168 x 38 mm |
| Display | 4 and 5 Digits LCD Display with Annunciator |
