Metravi 0.001 - 1.999mm p-p Displacement Digital Portable Vibration Meter, 908
Roll over the image to zoom in
Key Features
- Product Type: Vibration Meter
- Weight: 137 g
- Display: Backlit LCD
- Power Source: Battery Operated
- Displacement: 0.001 - 1.999mm p-p
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,381 (Incl. of all taxes)
₹17,272 + ₹3,109 GST (18%)
MRP was MRP ₹25,400
Save 32%
5 Business Days
1
90308990
Download Metravi CatalogueNot available
Highlights
The Metravi 908 Portable Vibration Meter measures velocity, acceleration and displacement along with the temperature, comes complete with the magnetic Base.
This product adopts piezoelectric effect of artificial polarized ceramic for design. It is suitable for monitoring of all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement. It also measures temperature of the object under test.
Features:
- LCD displays measurement result and conditions directly
- Measures acceleration (m/s2 peak), velocity (mm/s RMS) and displacement (mm p-p)
- Selective vibration characteristic
- Uses hi- sensitive vibration sensor for accurate measurements
- Equipped with two probes (SHORT and LONG) to adapt to the different measurement requirements
- Magnetic probe is provided, to be used for holding the sensor in un-easy conditions
- Low battery indication
- Auto Power Off
- Backlit LCD Display
- Maximum value Hold function
- Measures Temperature in °C /°F

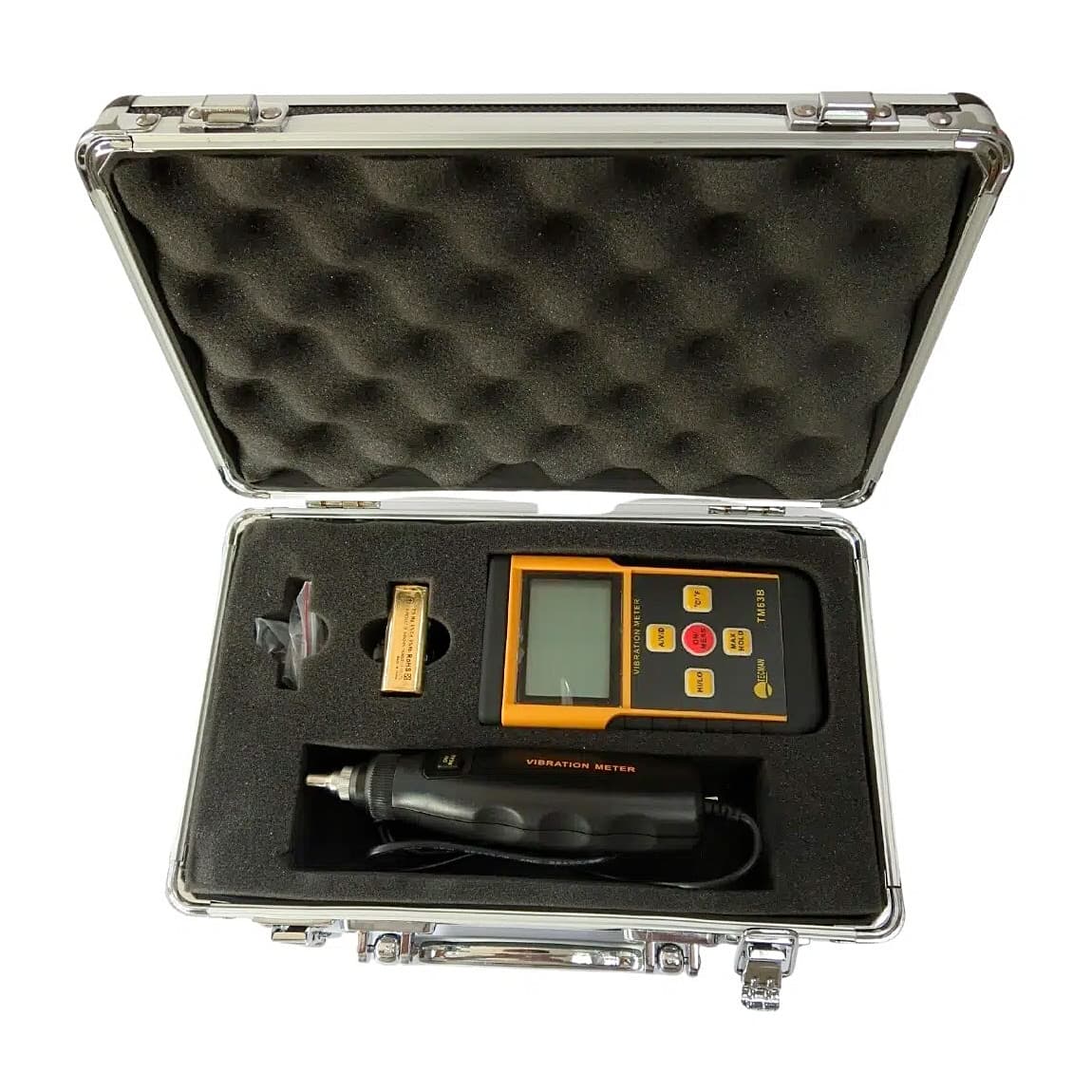

- Packed in Hard Carrying Case
- Weight is 137 gms (not including battery)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Colour | Yellow - Black |
|---|---|
| Display | Backlit LCD |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| Acceleration Range | 0.1 - 199.9m/s2 peak |
| Velocity | 0.1 - 199.9mm/s rms |
| Displacement | 0.001 - 1.999mm p-p |
| Accuracy | ±5% |
| Frequency Range | 10Hz - 1KHz |
| Temperature Range | -10°C - 80°C |
| Temperature Accuracy | ±2°C |
| Display Update Cycle | 1 Sec |
| Stand-by Current | <15μA |
| Operating Current | <25μA |
| Sensor Type | Vibration Sensor |
| Probe Type | Magnetic Probe |
| Vibration Transducer | Piezo Electric type Accelerometer |
| Length x Width x Height (mm) | 150 x 70 x 30 |
