Metravi 0 - 200 mm/s RMS 3-in-1 Vibration Tester With Bearing Condition Analyser, VT-150
Roll over the image to zoom in
Key Features
- Product Type: Vibration Meter
- Accuracy: < ±5%
- IR Temperature Range: -20°C to 120°C
- Laser Guide: <1mW. IEC 60825-1 compliant, Red
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,43,729 (Incl. of all taxes)
₹2,06,550 + ₹37,179 GST (18%)
MRP was MRP ₹3,03,750
Save 32%
5 Business Days
1
90318000
Download Metravi CatalogueNot available
Highlights

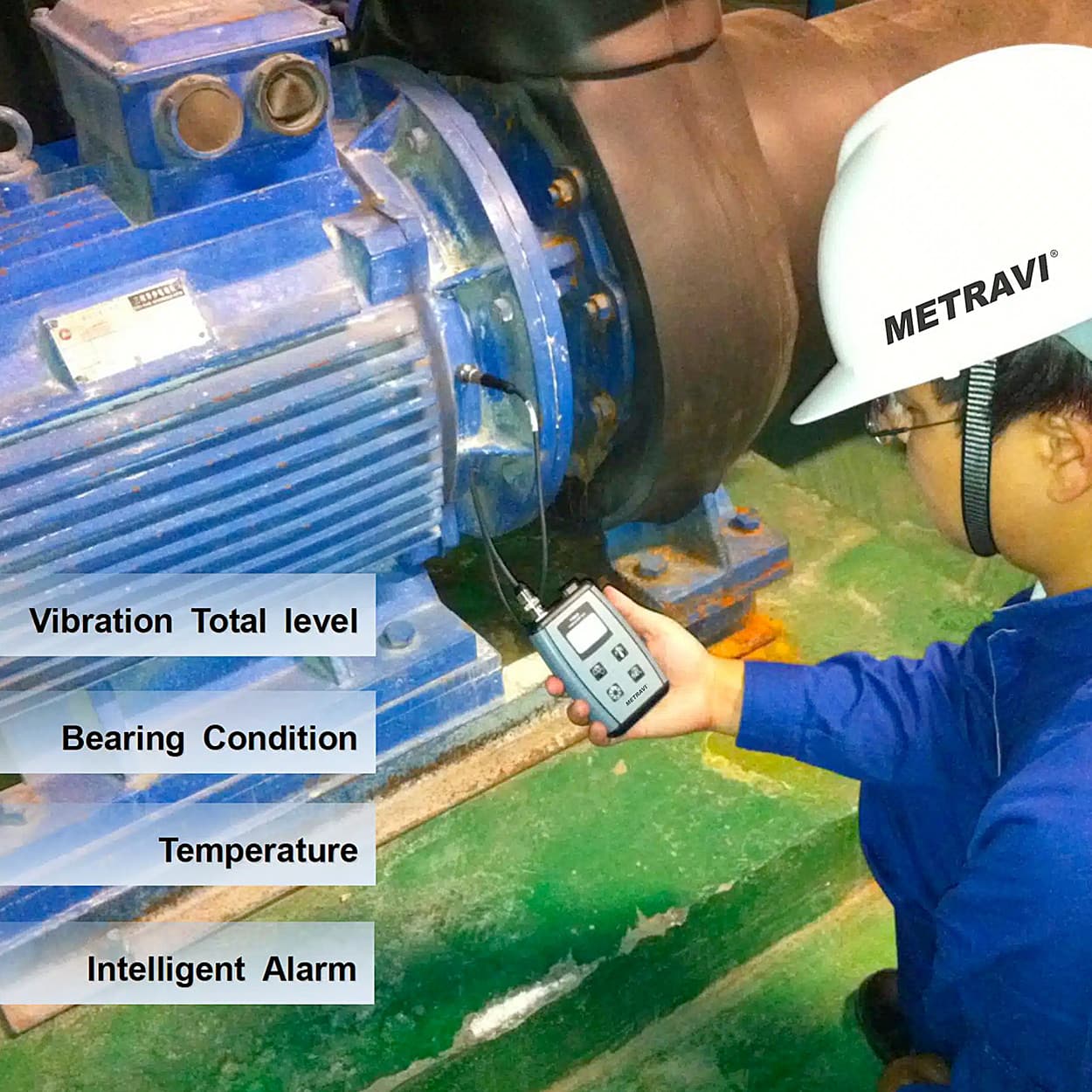

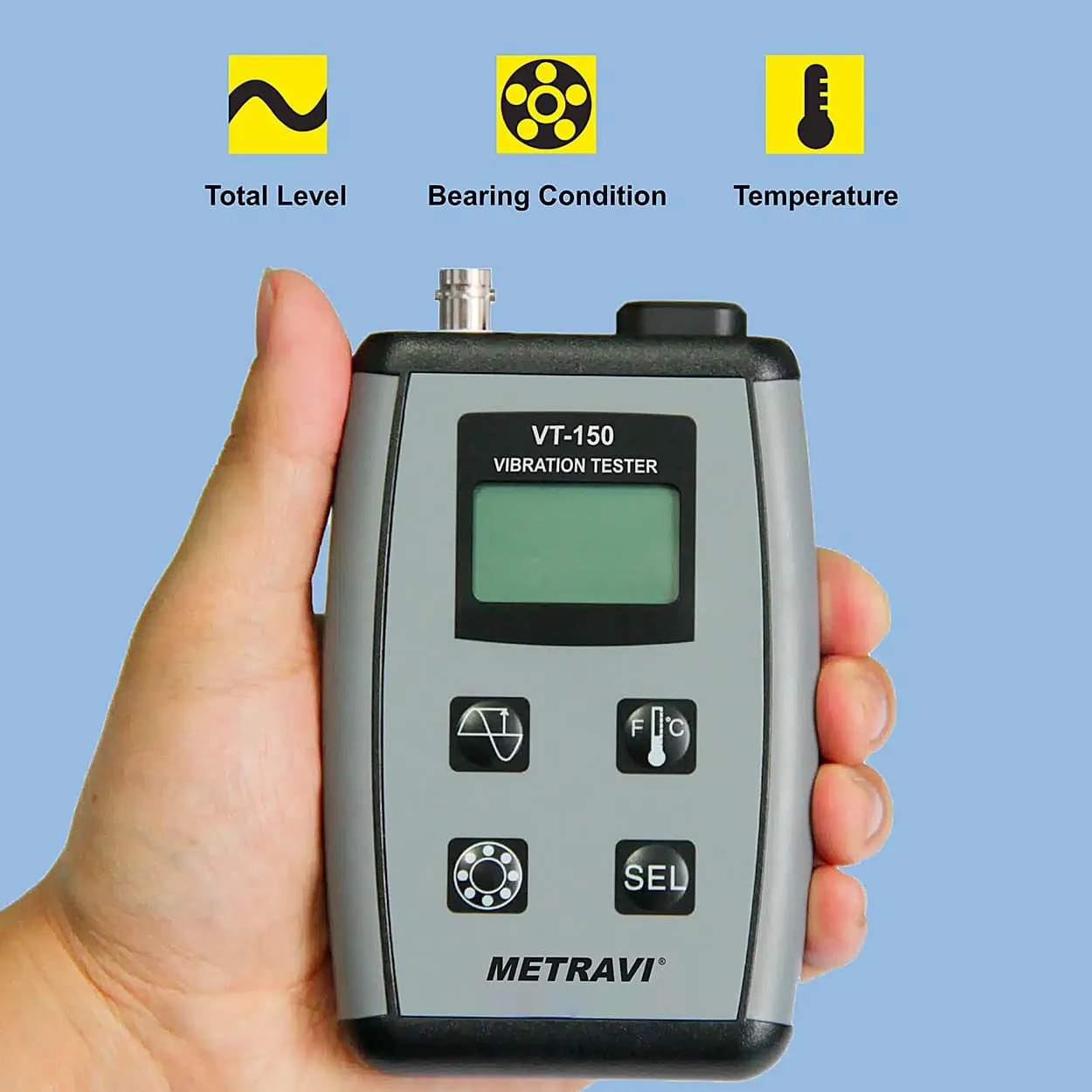

The Metravi VT-150 Vibration Meter is a reliable and easy to use, hand-held, condition inspection instrument; a fundamental tool of predictive maintenance on the plant floor. It provides Vibration measurement, Bearing Condition checks, and a built-in Infrared Thermometer, along with Machine Alarm indications as well.
The Metravi VT-150 enables plant maintenance technicians to monitor their machines, find potential problems in advance, to prevent failures & breakdowns and ensure machine reliability.
Features:
- Alarm Indication
- Built-in analysis function.
- Analysis results displayed on the screen at the press of a button.
- With ISO standard analysis function.
- Large buttons that are easy to press even with gloves on.
- Practical, easy-to-use vibrometer with diagnosis function.
- Three measurement modes such as acceleration, speed and displacement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | Monochromatic LCD |
|---|---|
| Sensors | 100mv/g, BNC Connector, IEPE Accelerometer, Integral 80 cm Cable |
| Accuracy | < ±5% |
| Vibration Acceleration Range | 0-20g, Peak Frequency 10-12kHz |
| Vibration Velocity Range | 0-200mm/s RMS, Frequency 10Hz-1kHz |
| Vibration Displacement Range | 0-2000μm, Peak-Peak Freq. 10Hz-1kHz |
| IR Temperature Range | -20°C to 120°C |
| IR Temperature Accuracy | ±2°C |
| IR Temperature Resolution | 1°C |
| Laser Guide | <1mW. IEC 60825-1 compliant, Red |
| Distance to Sighting Ratio | 8:1 |
| Power Supply | Battery |
| Battery Type | Li-Ion Rechargeable, 3.6V 1700 mAh |
| Reharge Time | 3 hours approx |
| Operation Time | >50 hours continuous |
| Mains Charger | 4.2 V DC 600 mA output, 50/60 Hz input, AC 100-240 V |
| In-Car Charger | 4.2V DC 600mA output, DC 12-24V input |
| Operating Temperature Range | -10°C to +50°C |
| Storage Temperature Range | -20°C to +60°C |
| Ingress Protection | IP64 – Dust-tight, splash-resistant |
| Electromagnetic Compatibility | 2004/108/EC |
