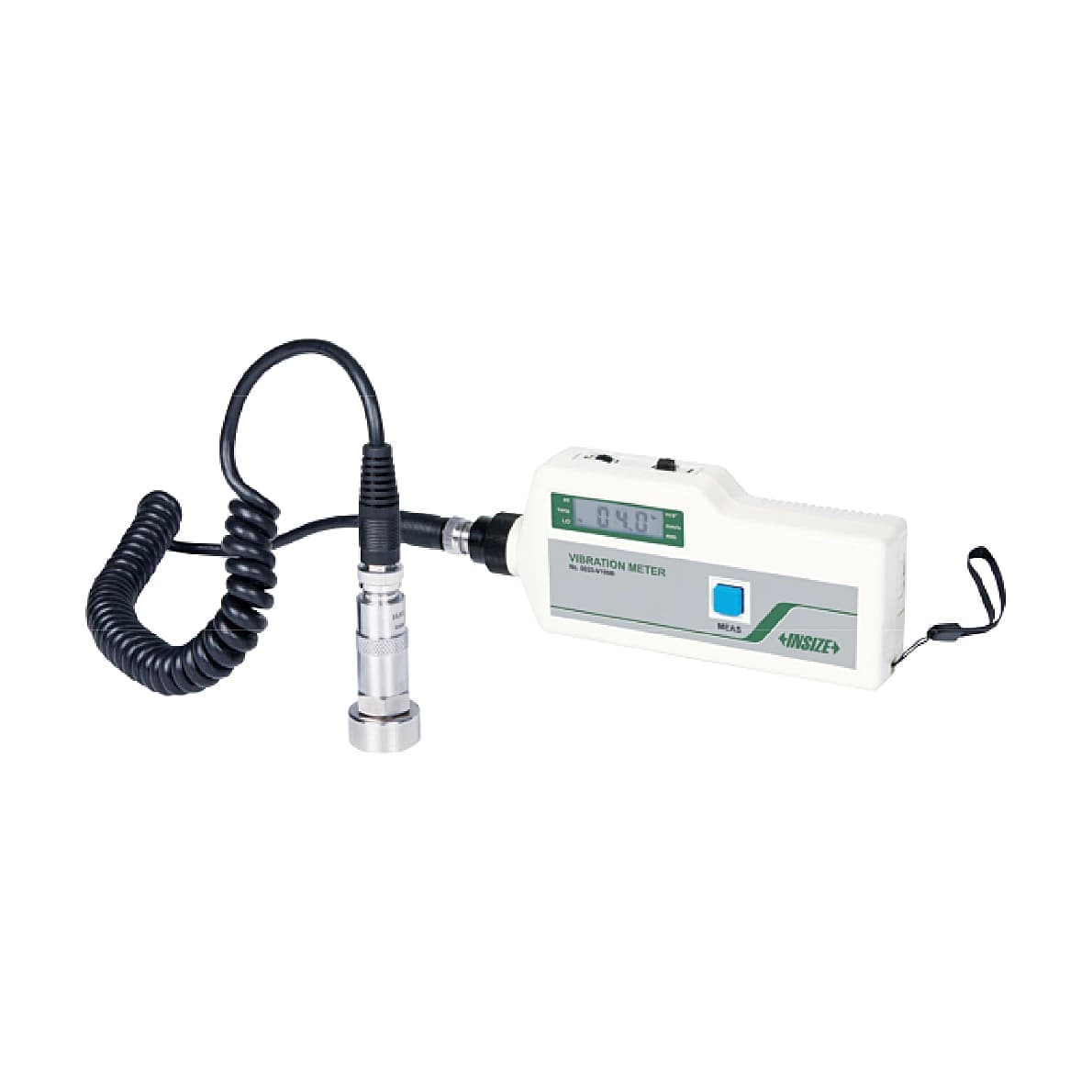

Insize 0.1 - 199.9 m/s2 Basic Type Digital Vibration Meter (Integrated), 0023-V199A
Roll over the image to zoom in
Key Features
- Product Type: Vibration Meter
- Weight: 228 g
- Measuring Acceleration Range: 0.1 - 199.9m/s2 (Peak Value)
- Measuring Velocity Range: 0.1 - 199. 9mm/s (Virtual Value)
- Measuring Displacement Range: 0.001 - 1.999 mm (Peak-peak Value)
- Sensor Type: Integrated
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹45,416 (Incl. of all taxes)
₹38,488 + ₹6,928 GST (18%)
MRP was MRP ₹56,600
Save 32%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Applied to the environment, machinery manufacturing, electric power, chemical industry and other fields of all kinds of rotating machinery and equipment condition monitoring and fault diagnosis.
- Acceleration, velocity and displacement can be tested
- Data hold function
- Automatic power off
What's Included In This Package:
| 1x Vibration Meter |
| 2x Probe Rod (Short & Long Probe Rod) |
| 1x 9V Battery |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring Acceleration Range | 0.1 - 199.9m/s2 (Peak Value) |
|---|---|
| Measuring Velocity Range | 0.1 - 199. 9mm/s (Virtual Value) |
| Measuring Displacement Range | 0.001 - 1.999 mm (Peak-peak Value) |
| Frequency Acceleration Range | 10 Hz - 1 kHz (Lo) / 1kHz - 5kHz (Hi) |
| Frequency Velocity Range | 10 Hz - 1 kHz (Lo) |
| Frequency Displacement Range | 10 Hz - 500 Hz (Lo) |
| Frequency Response | ±(5% + 2dgts) (>20 Hz) / -20% ~ +10% (<20 Hz) |
| Linearity | ±(5%+2dgts) |
| Display | 3-1/2 Count Display |
| Sampling Time | 1s |
| Automatic Power Off | 60s |
| Operation Environment | 0 - 50°C (Temperature) / <90%RH (Humidity) |
| Power Supply | 1x 9V Battery (25 Hours Working) |
| Dimensions (L x W x H) | 174 x 73 x 75 mm |
| Sensor Type | Integrated |
