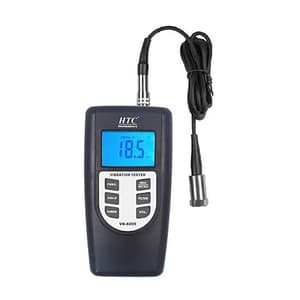

HTC 0.1 - 400.0 m/s2 Vibration Meter, VB-8205
Roll over the image to zoom in
Key Features
- Product Type: Vibration Meter
- Power: AAA 1.5V X 4
- Frequency: 1~20KHz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,991 (Incl. of all taxes)
₹13,552 + ₹2,439 GST (18%)
MRP was MRP ₹16,940
Save 20%
5 Business Days
1
90318000
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Measure Accelerator / Velocity / Displacement with RPM & Frequency.
- Metric / Imperial Measurement.
- AC output socket for headphones and recording.
- Optional Headphones for use as electronic stethoscope.
- Optional RS-232 Communication (Advanced Software Program for all windows)
Package Contents:
- Magnet,
- Accelerometer,
- Stinger Probe (Cone),
- Stinger Probe (Ball),
- Hard Carrying Case,
- Manual.
Technical Data:
| Basic Functions | Metric | Imperial | |
| Acceleration | 10Hz~1KHz (Mode 1) | 0.1 ~ 400.0 m/s2 | 0.3~ 1312 ft/s2 |
| 10Hz~10KHz (Mode 10) | |||
| Velocity | 10Hz~1KHz | 0.01~400 mm/s True RMS |
0.000~16.00 Inch/s |
| Displacement | 10Hz~1KHz | 0.001~4.000mm | 0.04~160.0 mi |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power | AAA 1.5V X 4 |
|---|---|
| Frequency | 1~20KHz |
| Revolution / min RPM | 60~99.990r/min (rdg. Should be multiplied by 10 if the displays show 10) |
| Dimension | 124 (H) x 62 (W) x 30 (D) mm |
