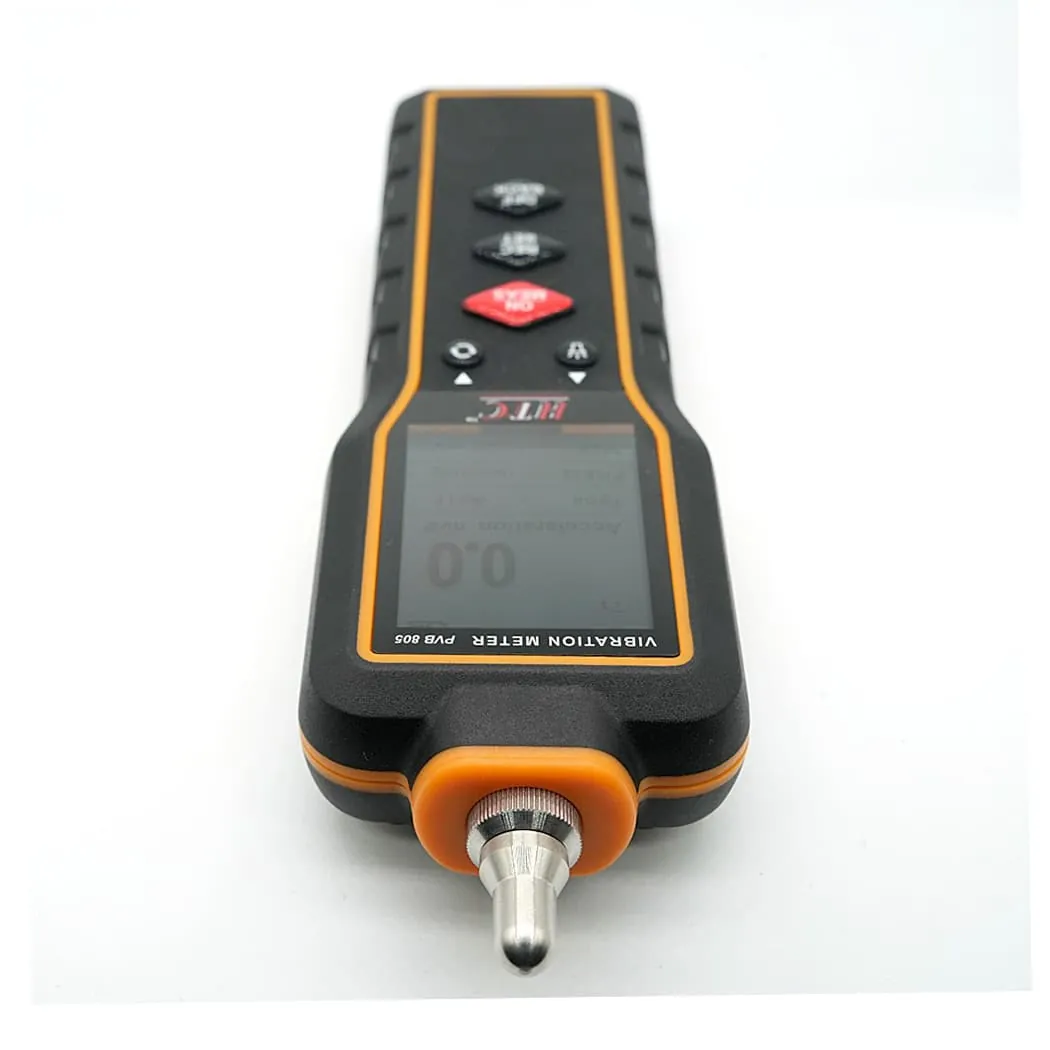

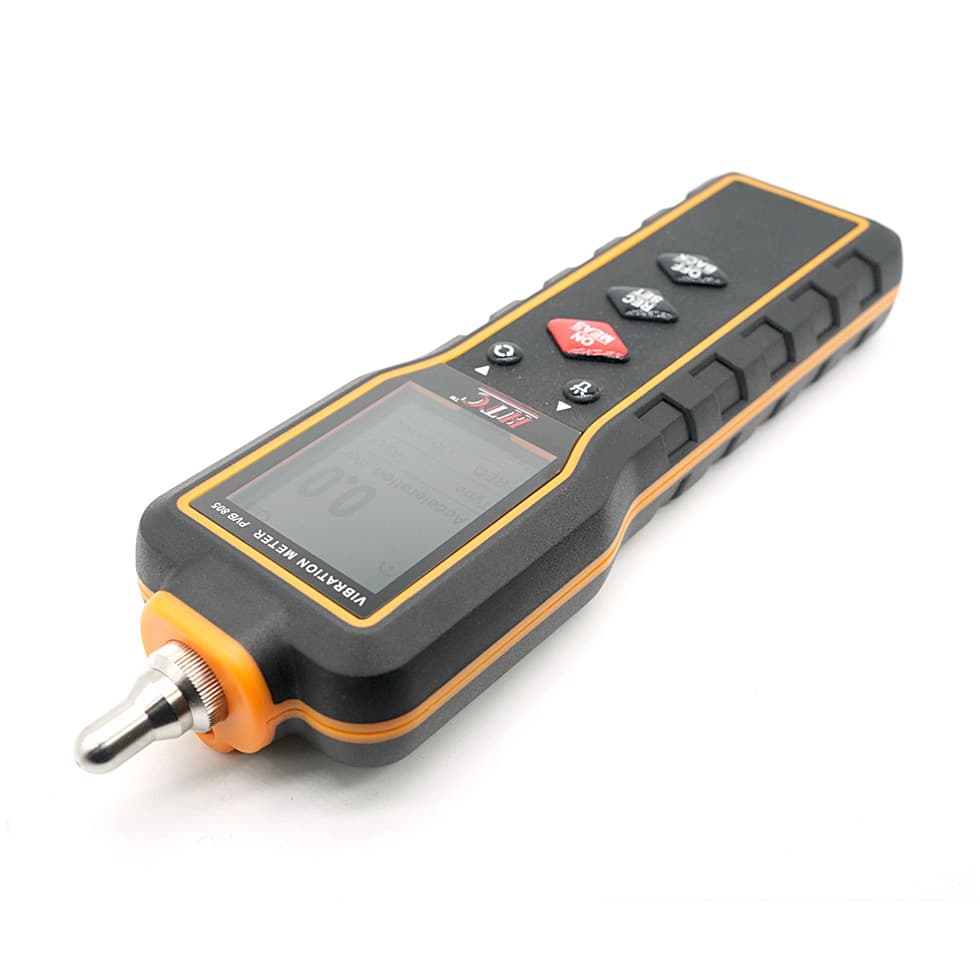

HTC 10Hz - 10KHz Frequency Range Pen Vibration Meter, PVB-805
Roll over the image to zoom in
Key Features
- Product Type: Vibration Meter
- Weight: 121 g
- Sensor: Piezoelectric Accelerated Sensor
- Power: 1.5V AAA battery
- Data Refresh Time: 500ms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹12,045 (Incl. of all taxes)
₹10,208 + ₹1,837 GST (18%)
MRP was MRP ₹12,760
Save 20%
5 Business Days
1
90318000
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Frequency Range-10Hz~10KHz.
- Short and Long Probes are for displacement, velocity and acceleration.
- Auto Power Off (APO).
- User Can Check historical data view on screen.
Package Contents:
- PVB-805 Vibration Meter,
- 2x 1.5V AAA batteries.
Functions:
| Acceleration Measurement Range | 0.1~199.9m/s2 (peak value) |
| Velocity Measurement Range | 0.1~199.9mm/s(real-time valid value) |
| Displacement Measurement Range | 0.001~1.999mm(peak-peak value) |
| Accuracy | ±(5%+2dgts) |
| Low Frequency Acceleration Measuring Frequency Range | 10Hz~1KHz |
| High Frequency Acceleration Measuring Frequency Range | 1KHz~10KHz |
| Velocity Measuring Frequency Range | 10Hz~1KHz |
| Displacement Measuring Frequency Range | 10Hz~500Hz |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Sensor | Piezoelectric Accelerated Sensor |
|---|---|
| Power | 1.5V AAA battery |
| Data Refresh Time | 500ms |
| Storage Capacity | 200 sets |
| Battery Working Life | beyond four hours without breaks |
| Working Temperature | 0°C~50°C |
| Working Humidity | 20%RH~80%RH |
| Storage Temperature | -20°C~60°C |
| Storage Humidity | 20%RH~80%RH |
| Height Above Sea Level | <2000 |
| Dimensions (LxWxH) | 176 mm x 54 mm x 25 mm |
