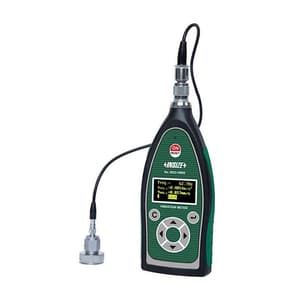

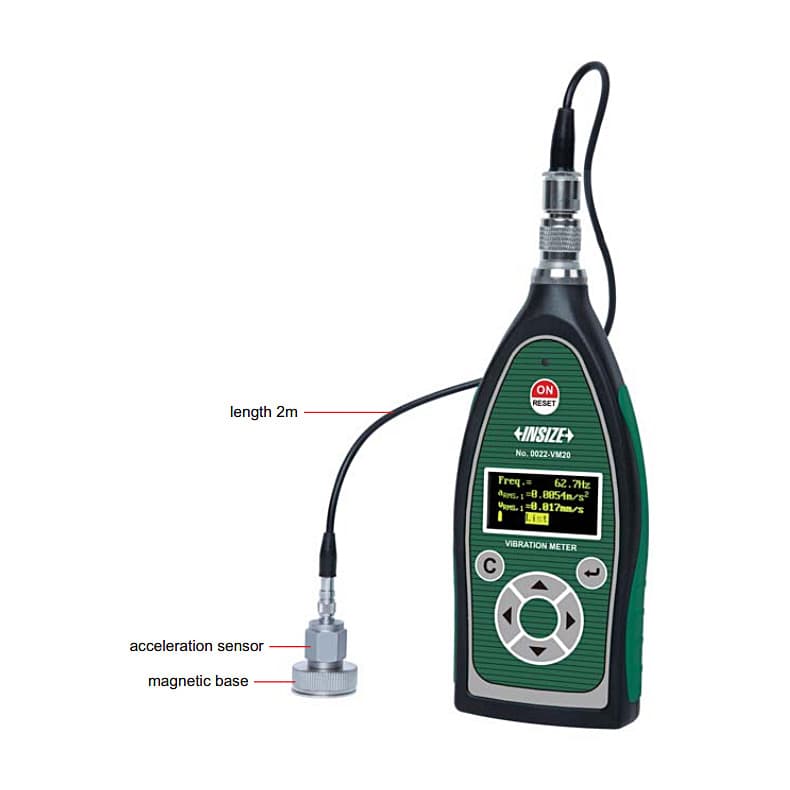

Insize 0.01 - 200m/s2 Digital Vibration Meter With Three Parameters, 0022-VM20
Roll over the image to zoom in
Key Features
- Product Type: Vibration Meter
- Weight: 240 g
- Language: Chinese, English, Portuguese
- Power: <80mA/5V
- Adaptor: AC/DC adapter: 5V/2A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹46,275 (Incl. of all taxes)
₹39,216 + ₹7,059 GST (18%)
MRP was MRP ₹64,289
Save 39%
5 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Can measure vibration frequency
- Can measure virtual value/peak value/peak-peak value of acceleration, velocity and displacement
- Software is included: on-line monitoring, data storage
- Suitable for factory inspection, status monitoring and fault diagnosis of mechanical equipments such as motors, pumps, fans, household appliances, compressors, smoke machines, generators, gearboxes, etc.
What's Included In This Package:
- 1x Main Unit
- 1x Software
- 1x Accelerometer (including cable)
- 1x Magnetic base
- 1x M5 screw
- 1x AC/DC adapter
- 4x Battery (AAA)
Functions:
| Measuring Parameter | Acceleration (virtual/peak/peak-peak value) aRMS,1, aPeak,1, ap-p,1, aPeak', aP-P' |
Velocity (virtual/peak/peak-peak value) vRMS,1, vPeak,1, vp-p,1, vPeak', vP-P' |
Displacement (virtual/peak/peak-peak value) dRMS,1, dPeak,1, dp-p,1, dPeak', dP-P' |
| Measuring range | 0.01-200m/s2 (peak value) | 0.1-200mm/s (virtual value) | 0.01-2mm (peak-peak value) |
| Frequency range | 10Hz-5kHz | 10Hz-1kHz | 10Hz-500Hz |
| Amplitude Frequency response | ±5% | ||
| Amplitude linearity | ±5% | ||
| Frequency accuracy | ±0.5% | ||
| Cut-off frequency (Second-order high-pass filtering) |
8kHz sampling frequency: 3.16Hz, 10.00Hz, 31.60Hz, N/A (adjustable) 32kHz sampling frequency: 12.64Hz. 40.00Hz. 126.4Hz, N/A (adjustable) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 1.96" 128x64 dot matrix OLED screen |
|---|---|
| Language | Chinese, English, Portuguese |
| Power | <80mA/5V |
| Power supply | 4x AAA batteries: 6.0V/1000mAh |
| Adaptor | AC/DC adapter: 5V/2A |
| Operation temperature | -10°C-50°C / humidity: 25%RH~90%RH, non-condensing |
| Operating pressure | 65kPa~108kPa |
| Dimensions | 172 mm x 69 mm x 26 mm |
