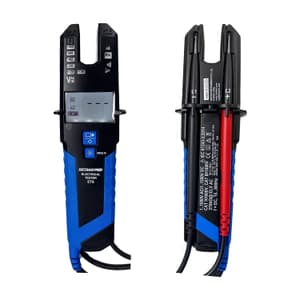

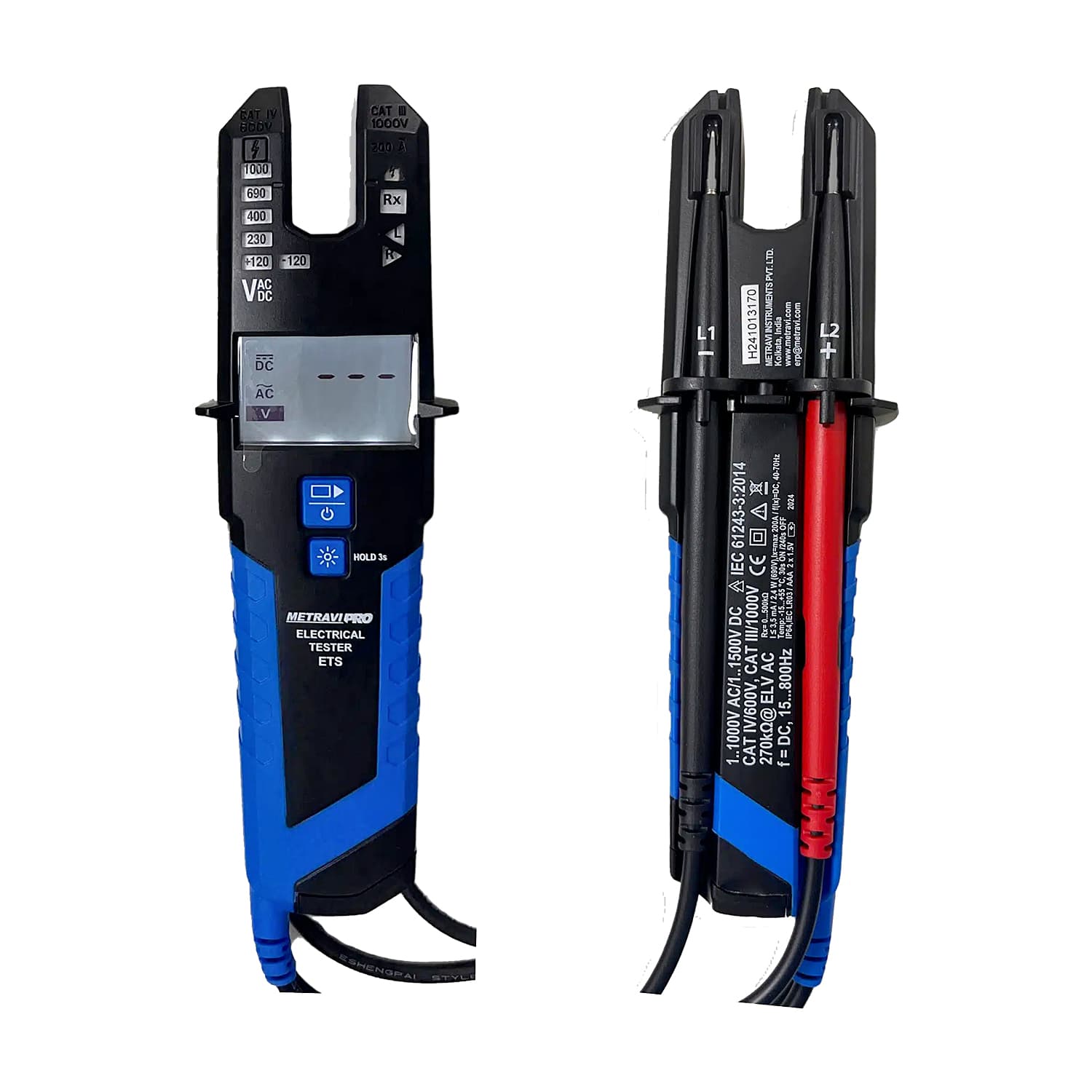

Metravi 0 - 1000V AC Voltage Smart Electrical Tester, PRO ETS

The Metravi PRO ETS Smart Electrical Tester is everything that the electrician needs on the job site, in a size that fit even in cargo pant pockets. It is a professional voltage tester with LED chain, certified according to EN-61234, and allows you to measure AC current through the open jaw! It is an Universally applicable tester for Voltage, AC Current, Continuity and Rotary Field testing with various additional features. The Metravi PRO ETS Smart Electrical Tester is made in GERMANY according to the latest safety regulations and guarantees safe and reliable working. It complies with the standards for two pole voltage testers, EN61243-3:2014.

Features:

• Designed to meet international safety standards, EN61243-3:2014
• Measurement category CAT IV 600V and CAT III 1000V
• T-RMS Measurements

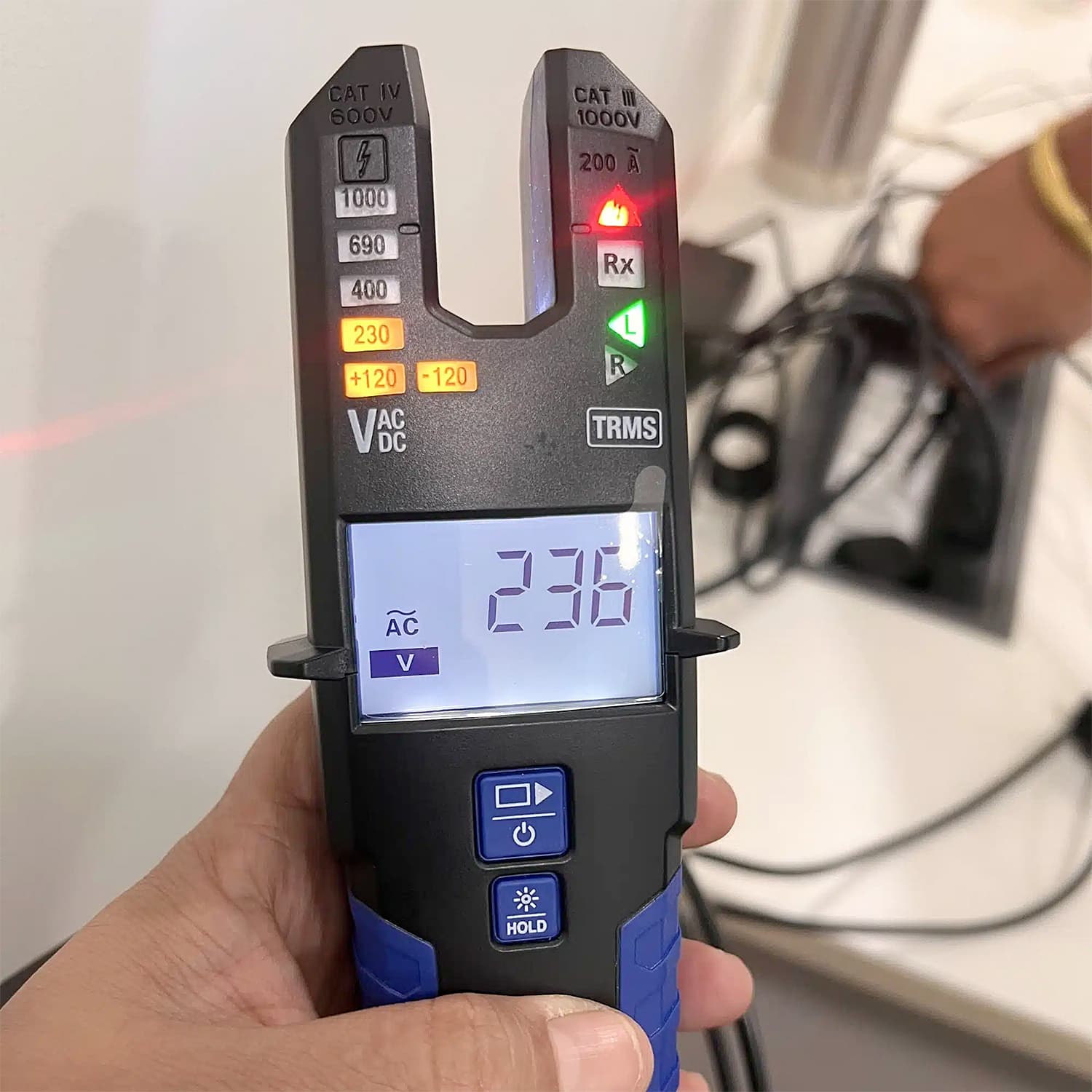

• Voltage test up to 1000V AC and DC with LEDs
• Current test up to 200A AC
• Voltage test up to 1000V AC and up to 1500V DC with LCD
• Open Jaw Size 16mm
• Impact and shock proof due the robust design with IP64 protection

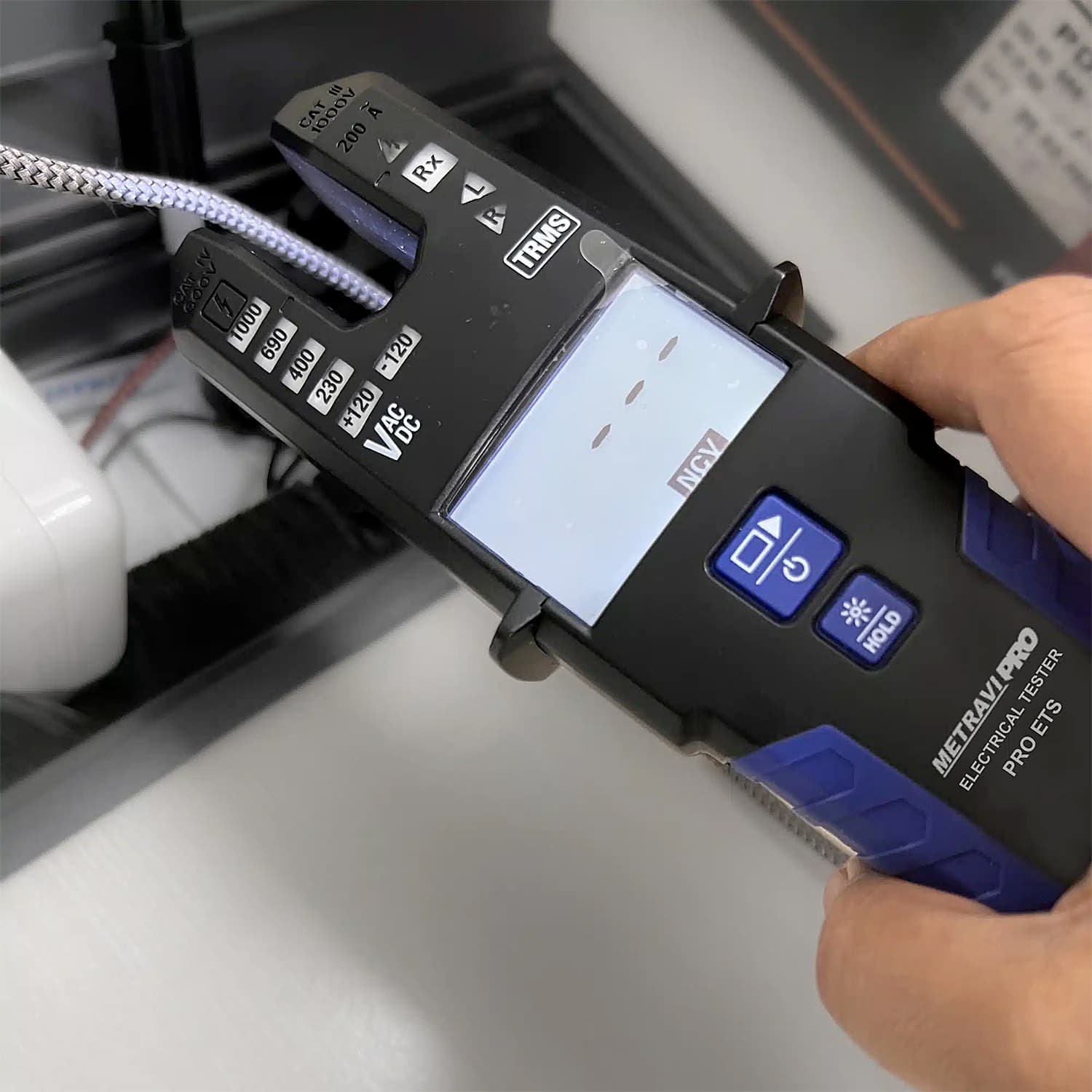

• Cable break test using Non-contact Voltage detection (NCV)
• Polarity indication
• Single-pole Phase test
• Phase Rotation test
• Continuity & Diode tests
• Resistance measurement
• Frequency measurement
• Buzzer Alarm
• Auto-power ON / OFF

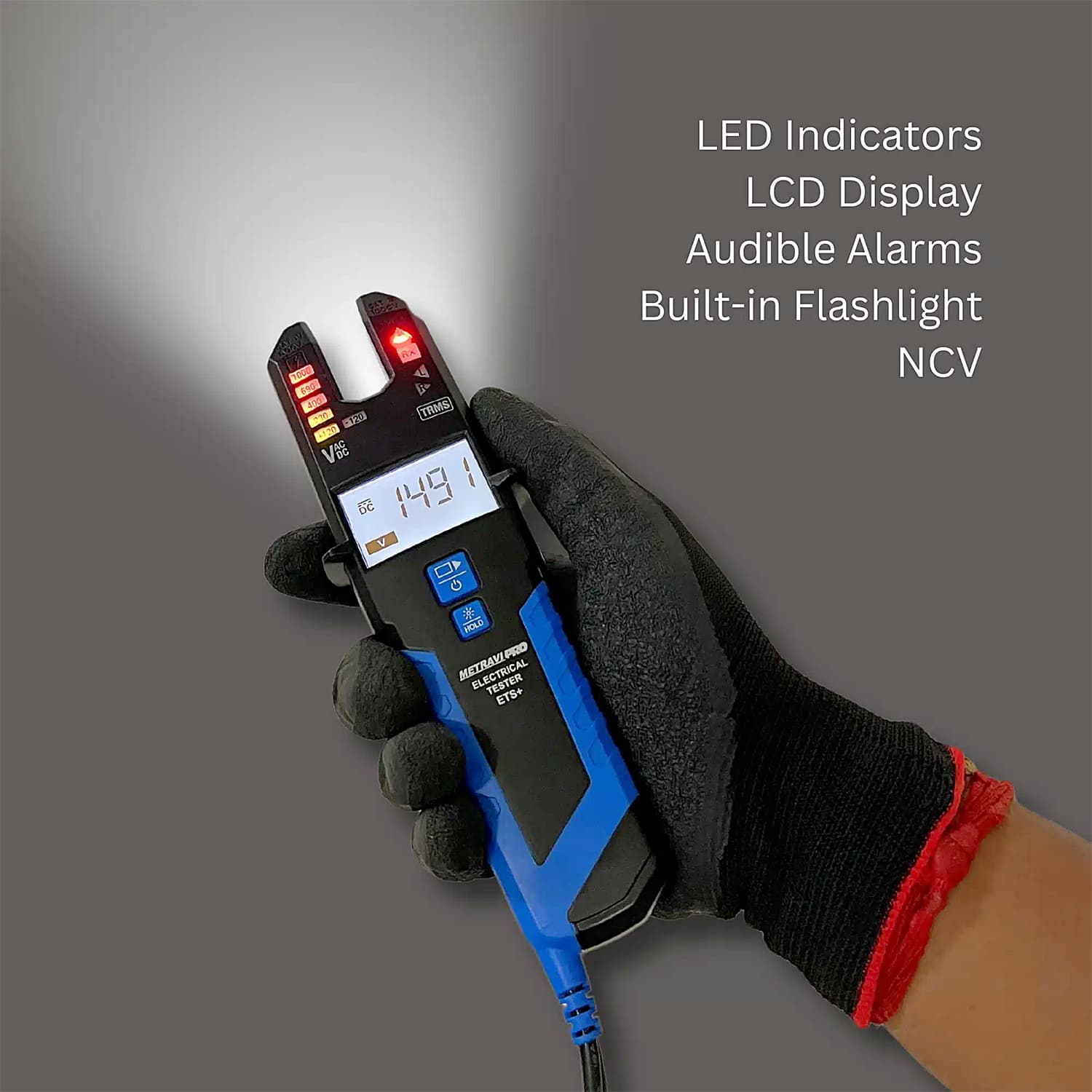

• Built-in Flashlight

Technical Data:

• LCD Range : 0 – 1000V AC (15-800Hz), 0 -1500V DC (±0.1V)
• LCD Resolution : 0.1V (1- 29.9V), 1V (30 – 1500V)
• LCD Accuracy : ±3% ±1.5 V (1- 29.9V), ±3% ±3dgt (30 – 1500V)
• LCD Over-range Indication : “OL”
• Current Test : 0.1- 200A AC (+/-3%+5dgt), Resolution 0.1A, Frequency 45 – 65Hz
• Safety Current : Is <3.5mA at 1000V AC; <6mA at 1500V DC
• Measurement Duty : 30s ON, 240 s OFF
• Internal Battery Consumption : Approx. 120mA
• Single-Pole Phase Test Voltage Range : 170 – 1000V phase-to-phase
• Phase Rotation Test : AC 40 – 70Hz
• Continuity Test : 0 – 500Ω + 50
• Resistance Measurement : 0 – 100 kΩ; Accuracy: ±5% ±10dgt @25°C; Resolution: 1Ω (1-2000Ω), 1kΩ (2-100 kΩ)
• Frequency Measurement : 1 – 800Hz ±5% ±5dgt; Resolution: 1Hz
• NCV Test : 100 – 1000V AC (50/60 Hz)
• Data Hold
• Zero function
• Battery : 3V (IEC LR03 1.5 V x 2)
• Standards : EN/IEC 61243-3:2014, CAT IV 600V, CAT III 1000VProtection : IP64 Dust & Splash Proof

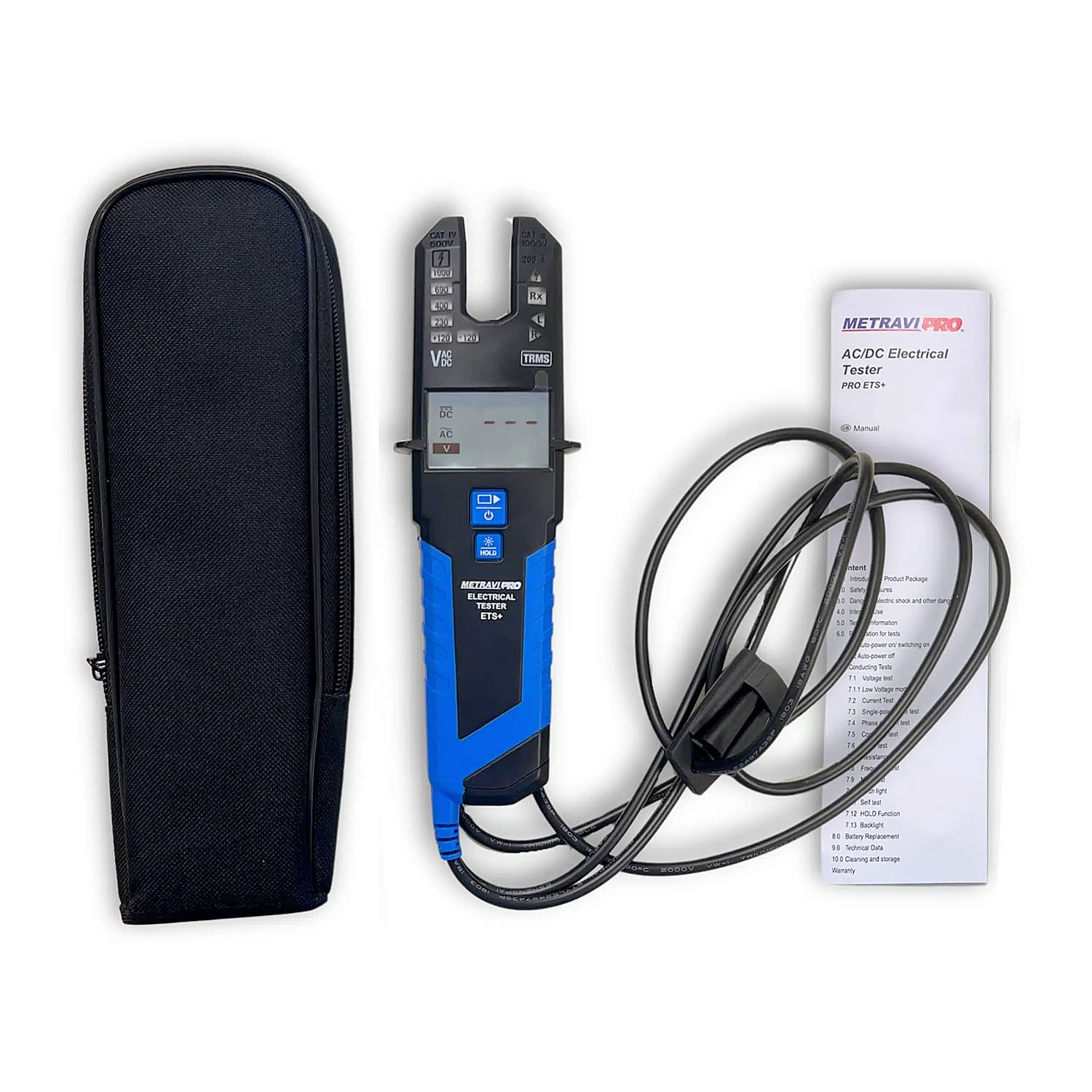

Package Content:

• Electrical Tester
• Probe-tip Protection,
• 2 x GS 38 Caps,
• 2 x 4mm Tip Extensions,
• 2 x AAA 1.5V Battery,
• User Manual
