Metravi 1mV - 40V Battery Impedance Tester With 9999 Memory, TM-6002
Roll over the image to zoom in
Key Features
- Product Type: Electrical Testers
- Weight: 0.7 kg
- A/D conversion: Dual slope method
- Sampling rate: 2 seconds
- Operating attitude: Max 2000 meters above level
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,07,241 (Incl. of all taxes)
₹90,882 + ₹16,359 GST (18%)
MRP was MRP ₹1,33,650
Save 32%
5 Business Days
1
90308990
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The Metravi TM-6002 Battery Impedance Tester is used to check Internal Resistance, Voltage, Current and Temperature for batteries. It is designed for measuring the internal impedance and open circuit voltage of the secondary batteries, including Nickel-metal Hydride (NiMH), Nickel-cadmium (NiCd), Lithium-ion (Li-ion), Alkaline and Lead-acid batteries.
With quick response time, it simultaneously displays the results of Battery Impedance and Voltage measurements. Features a built-in comparator function to rate the conditions as pass, warning or fail. The Metravi TM-6002 is an ideal tester for Automotive applications, UPS maintenance and Telecommunication applications.
Features:
- Measures internal impedance and open circuit voltage of the secondary batteries, including Nickel-metal Hydride (NiMH), Nickel-cadmium (NiCd), Lithium-ion (Li-ion), Alkaline and Lead-acid batteries.

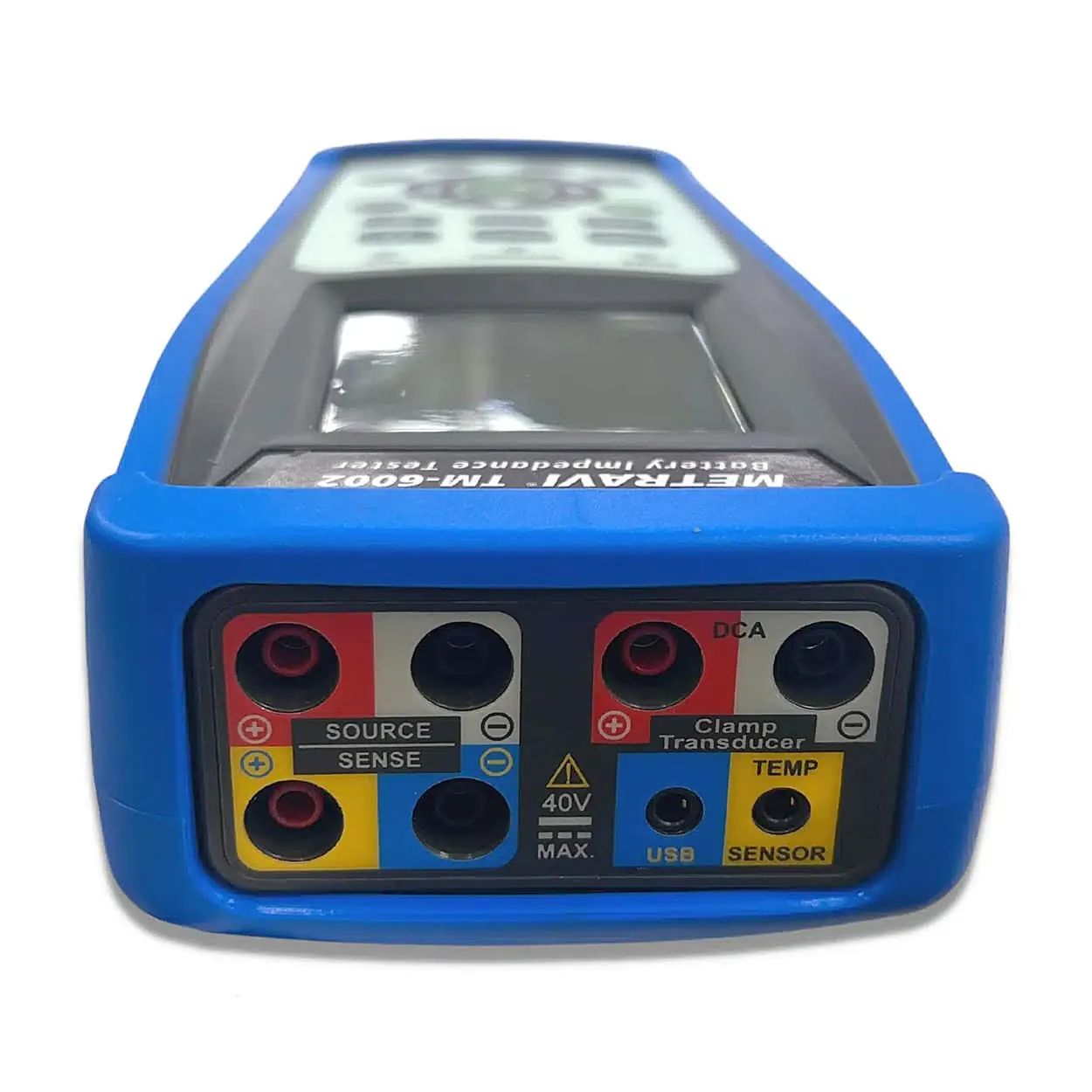

- AC four-terminal method to measure the internal impedance by eliminating lead impedance and contact impedance to get accurate results.
- Multi-display to show the internal impedance, voltage and clock of the battery simultaneously.
- It has 99 sets of composite comparator function, which can be set at impedance and voltage values to reliably detect battery deterioration.
- 9999 sets of data memory.
- Pin type leads, which can easily contact the battery electrodes are supplied as standard accessory and helps get more accurate 4-terminal measurements.

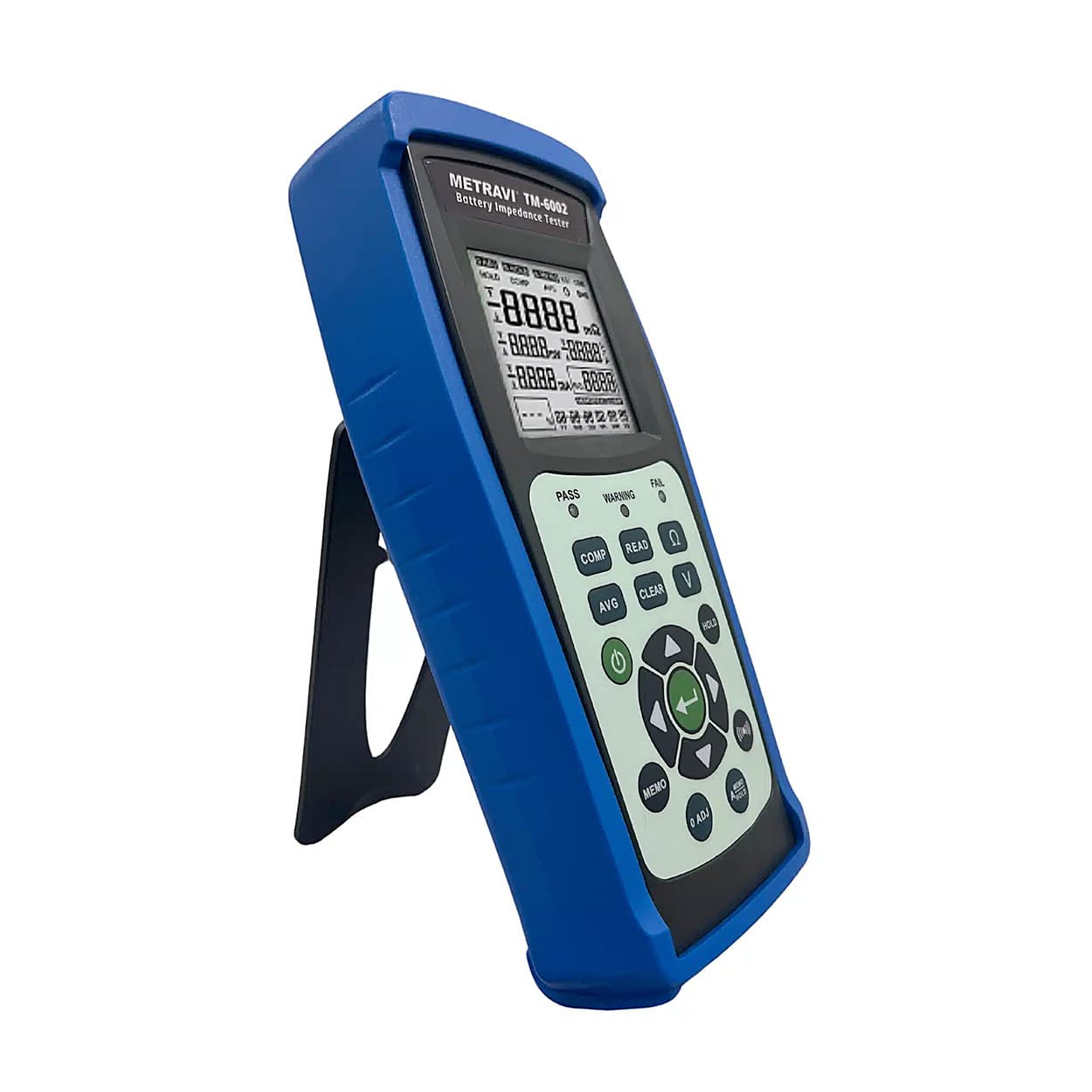

- Large Backlit LCD Display
- An ideal tester for automotive, UPS maintenance and telecommunication applications.
- Resistance Measurement: 10uΩ to 40Ω
- Voltage Measurement: 1mV to 40V
- Temperature Measurement: -20° to 60°C
- DC Current Measurement: 0.6A to 700A DC

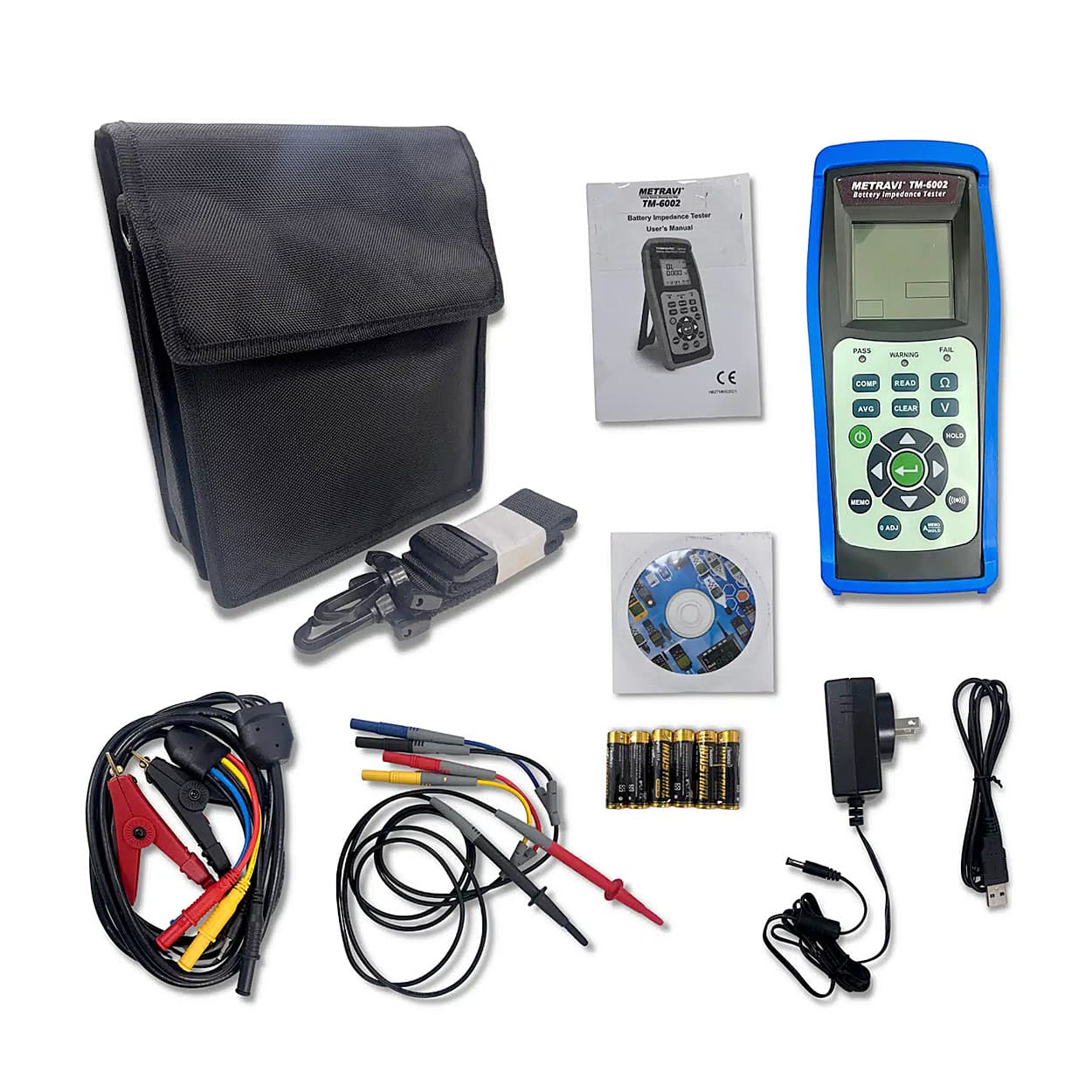

What’s Included In This Package:
- One set of Testing Clips
- Instruction Manual
- Batteries
- Software CD
- USB Cable
- Carrying Case
Electrical Specifications:
To ensure accuracy the ambient temperature should be 23ºC ± 5ºC with a humidity of 80% RH (maximum) non- condensing. In addition, perform a Zero adjustment after each range change.Resistance measurements
- Temperature coefficient : (±0.1%rdg ±0.5digits)ºC
- Measurement current frequency : 1KHZ ±30HZ.
- Measurement open-circuit terminal voltage : 7Vp-p
| Range | Resolution | Measurement current | Accuracy |
| 40m Ω | 10 µΩ | 100mA approx | (±0.8% reading ±10 digits) |
| 400m Ω | 100 µΩ | 15mA approx | |
| 4 Ω | 1m Ω | 1.5mA approx | |
| 40 Ω | 10m Ω | 150 µA approx |
Voltage Measurements
Temperature coefficient : (±0.1%rdg ±0.5digits)ºC
| Range | Resolution | Accuracy |
| 4V | 1mV | (±0.8% reading ±6 digits) |
| 40V | 10mV |
Temperature measurement
| Measurement Range | Resolution | Accuracy |
| -20ºC ~ 60ºC (-4ºF ~ 140ºF) | 0.1ºC (0.1ºF) |
±1.0ºC ±1.8ºF |
DC Current (DCA) measurement
| Range | Sensitivity | Resolution | Accuracy |
| 700A | 0.6A ~ 700.0A | 0.1A | (±2.0% reading ±5 digits) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring method | Impedance (AC four-terminal method) |
|---|---|
| A/D conversion | Dual slope method |
| Display | LCD display and LEDs (comparator output) |
| Sampling rate | 2 seconds |
| Open-Circuit terminal voltage | 7.0 Vp-p max. |
| Input over range | Screen displays "OL" |
| Low power of delection | Screen displays |
| Auto power off | The meter turns off automatically after about 15 minutes of inactivity; allows user to set the inactive time (01~99 minutes) |
| Comparator settings | High and Low limits of the comparator impedance and voltage |
| Number of comparator settings | 99 sets |
| Manual and auto continuous Data logging | 9999 sets |
| Operation temperature and R.H. value | 5oC to 40oC, 80%RH or less (non-condensation) |
| Operating ambience | In-door use, under environmental Pollution Grade II |
| Operating attitude | Max 2000 meters above level |
| Power supply | AC input Voltage is 100Vac to 240Vac 1.0A with input frequency of 60 HZ or 50HZ, Free Voltage DC output is 9VDC (8~11VDCMax) Supply current : > 1.0ADC. Socket : pin Ground Casing Positive External Diameter 3.5mm internal Diameter 2.0mm. |
| Dimensions | 240mm (L) x 100mm (W) x 45mm (H) / 0.5A/250V, 3.6 x 10mm |
