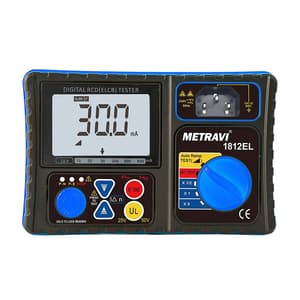

Metravi 3-1/2 Digits / 500mA Current Rating Digital RCD / ELCB Tester, 1812 EL
Roll over the image to zoom in
Key Features
- Product Type: Electrical Testers
- Operating Voltage: 230V
- Trip Time: 200ms to 1000ms
- Allowable Altitude: <2000 mts
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,374 (Incl. of all taxes)
₹9,639 + ₹1,735 GST (18%)
MRP was MRP ₹14,175
Save 32%
Out of Stock
5 Business Days
1
90308990
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
Metravi 1812EL ELCB Tester in a new avatar with Current Rating up to 500mA, Trip Test, Fault Trip Time, DC Test, Auto Ramp Test, Self Powered, verifies wiring connection, 1000mS readout for testing latest ELCBs.
Features:
- DC Test
- Auto Ramp Test
- Uses Voltage supplied from electrical system for power, no battery required
- Displays measurement results & condition directly on LCD
- Automatic wiring check
- Voltage Overload indication
- Overheating indication & auto off
- Selective Phase Angle Auto Data Hold
- UL & UF measurement selection
- Safety: IEC/EN 61010-1, CATIII 300V, IEC/EN 61557-1, IEC/EN 61557-6
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | Backlit LCD, 3-1/2 digits |
|---|---|
| Operating Voltage | 230V |
| Grounding Resistance | 50 Ohms |
| Trip Time | 200ms to 1000ms |
| Operating Environment | < 80%RH, 0 - 40°C |
| Storage Environment | < 70%RH, 20 - 60°C |
| Allowable Altitude | <2000 mts |
| Selective Phase Angle | 0°/180° |
| Trip Time Accuracy | ±0.6% ±4dgts |
| Automatic wiring check | Yes |
| Trip Current | 10/20/30/200/300/500mA |
