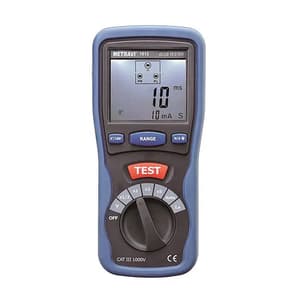

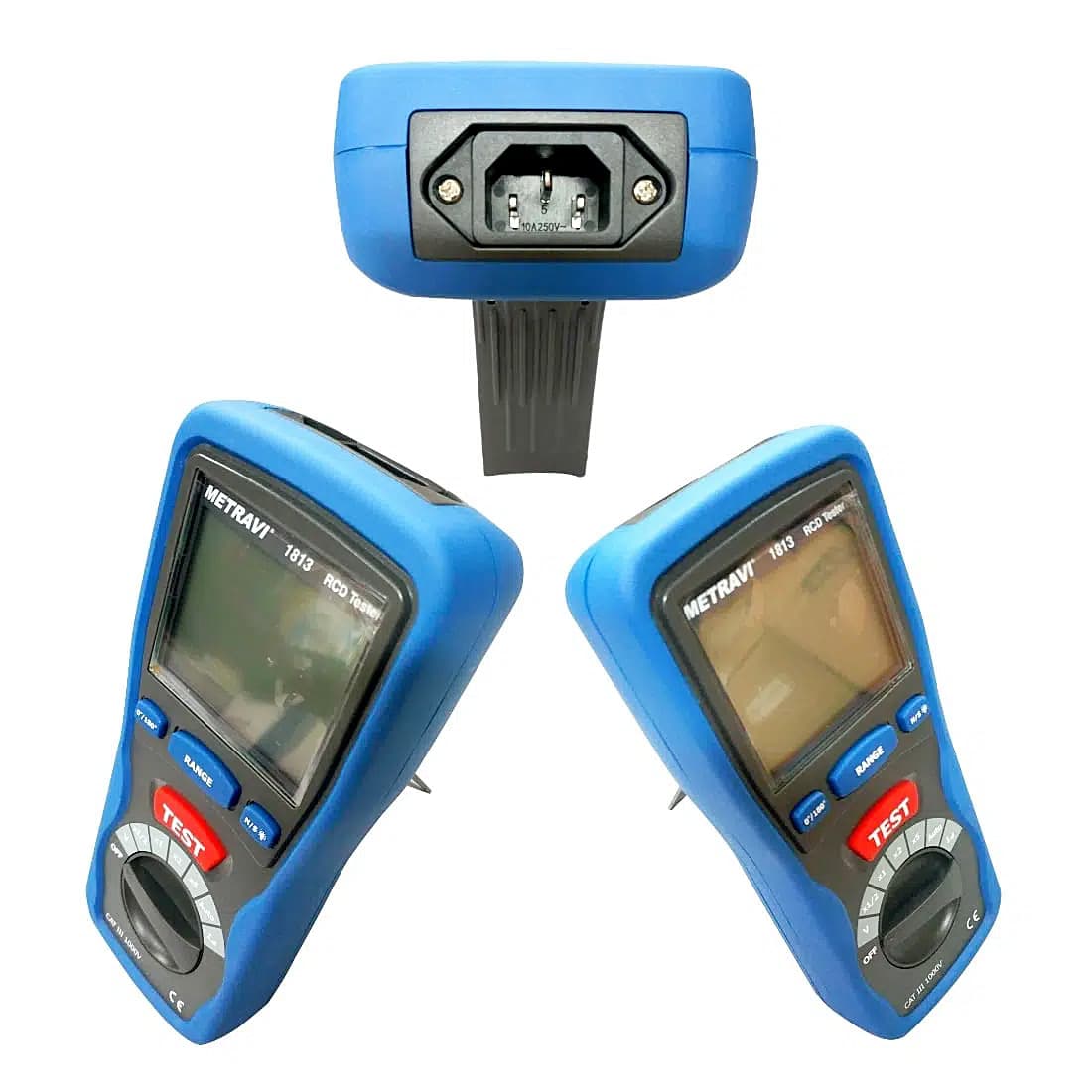

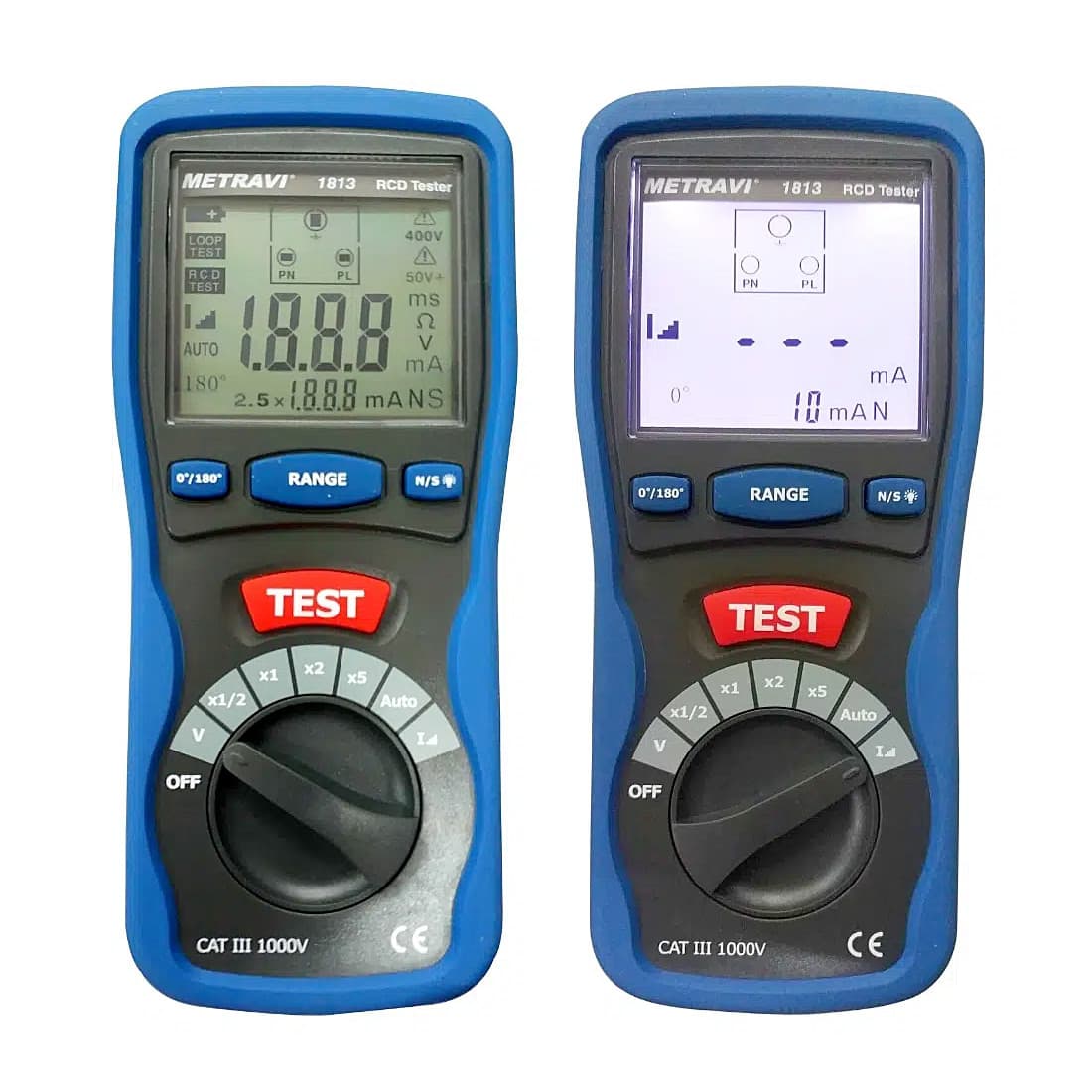

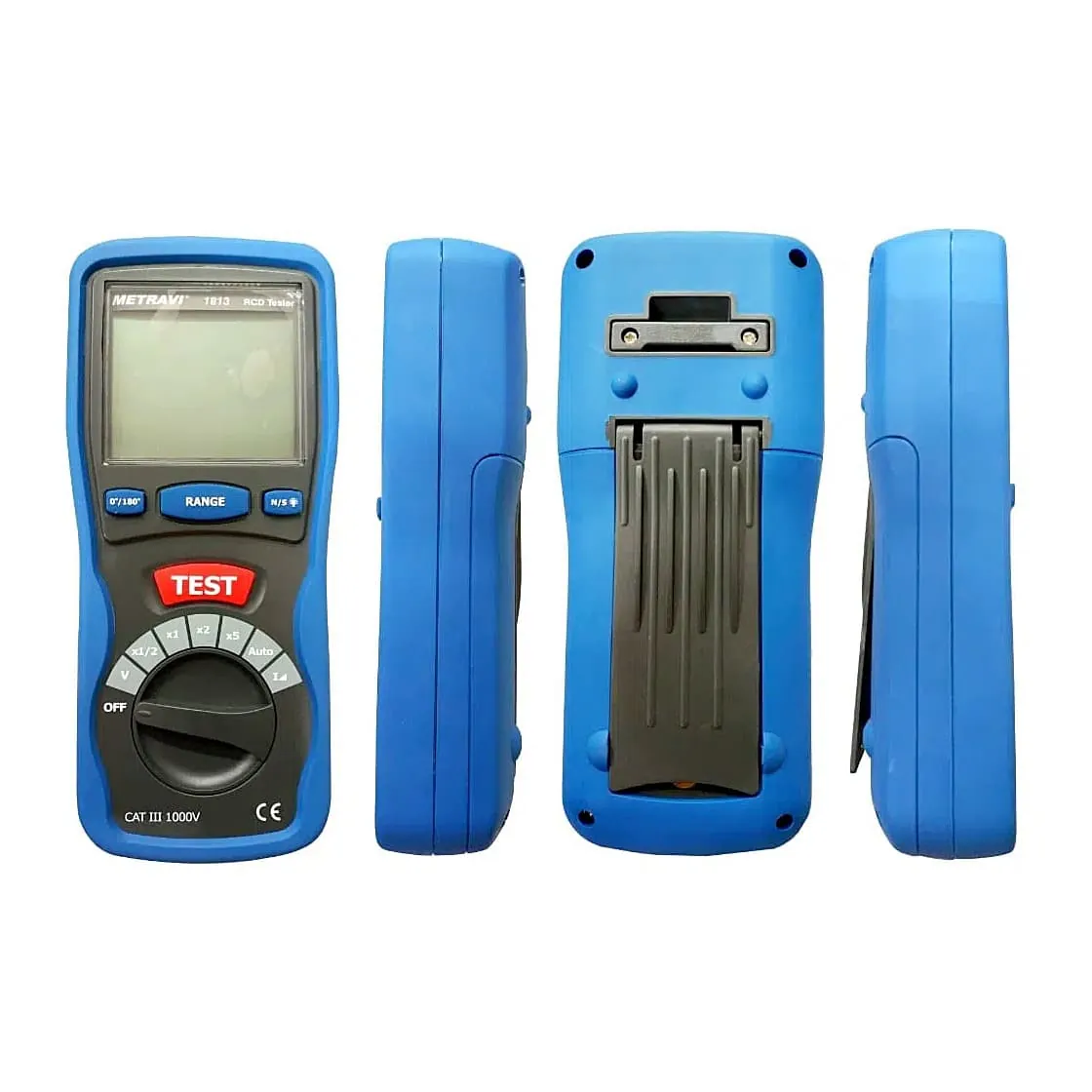

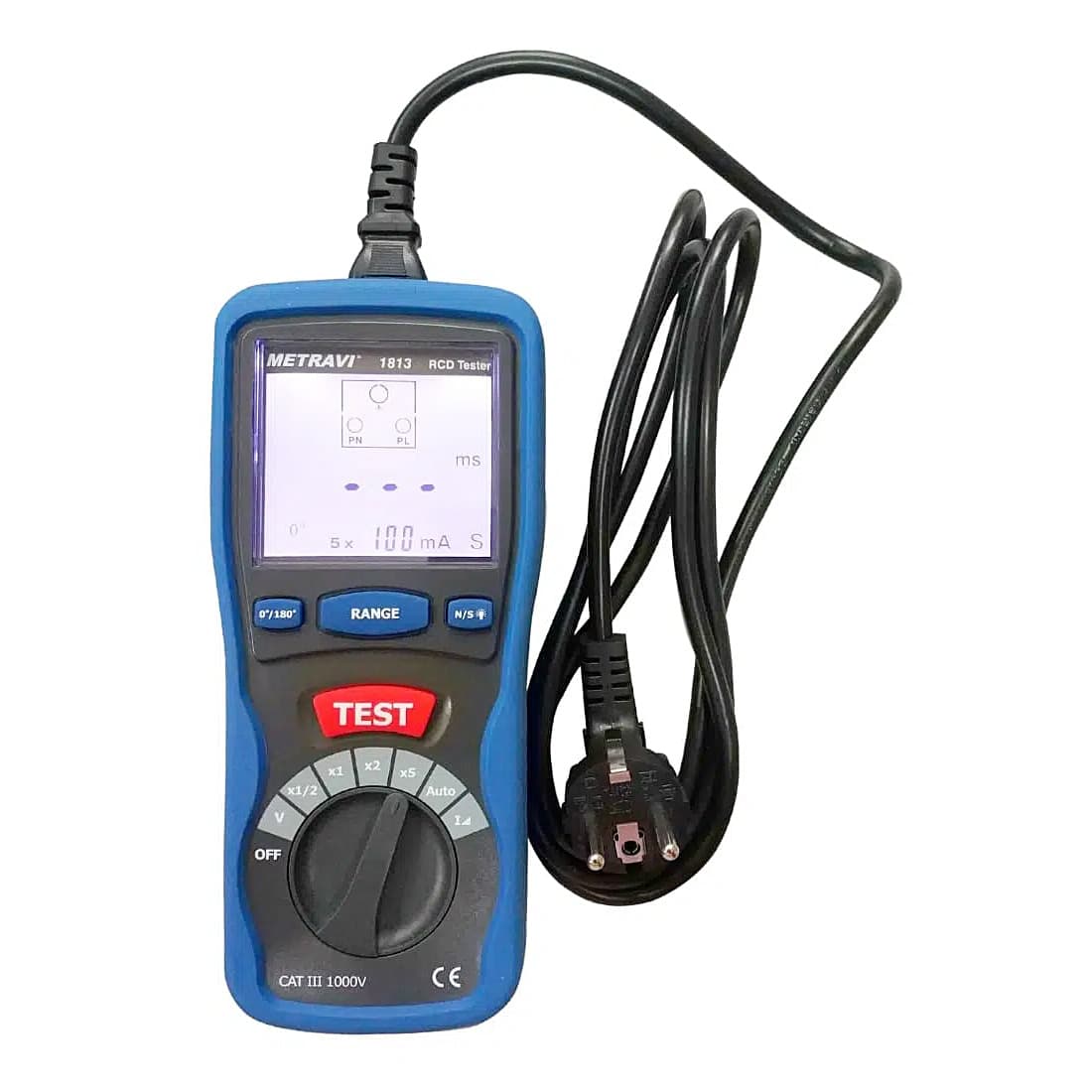

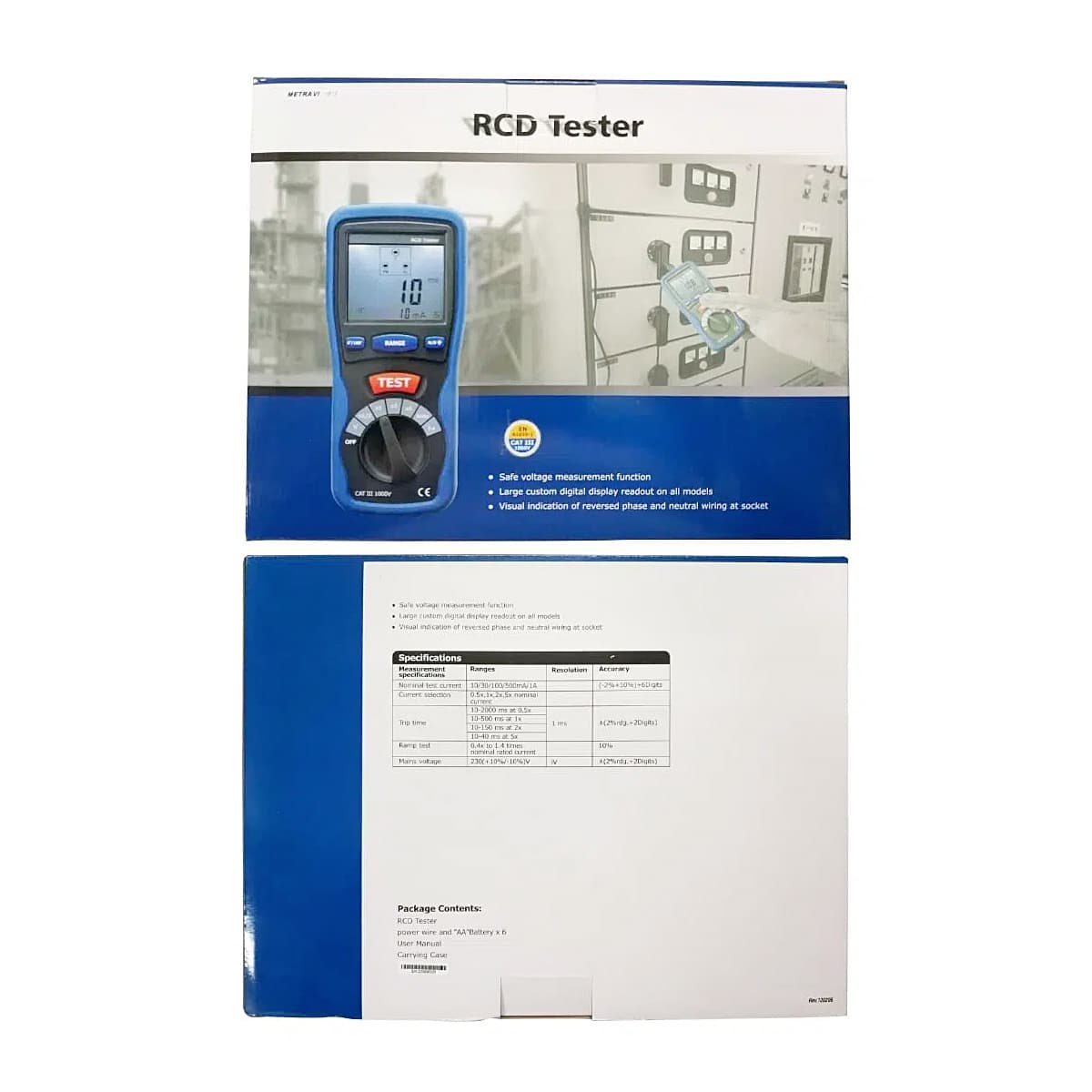

Metravi 3 Digits / 1000mA Current Rating Digital ELCB / RCCB Tester, 1813
Roll over the image to zoom in
Key Features
- Product Type: Electrical Testers
- Weight: 0.7 kg
- Display: 3-digit measurement display
- Earthing Systems: Operates on TT neutral and TN system
- Trip Current: value expressed in mA
- Test Current: 10/30/100/500mA/1A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹14,948 (Incl. of all taxes)
₹12,668 + ₹2,280 GST (18%)
MRP was MRP ₹18,630
Save 32%
5 Business Days
1
90308990
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The Metravi 1813 is a ELCB/RCCB Tester.The main function of the tester is to test and measure the trip values of ELCB/RCCB in trip time (expressed in ms) or -in trip current value (expressed in mA).
This enables 10mA / 30mA / 100mA / 300mA / 500mA and 1000mA differential circuit breakers to be tested irrespective of their type (normal or delayed). This comprehensive appliance can also be used to test the conformity of the network and the connection of the earthing conductor.
Features:
- 3-digit measurement display.
- N or S (delayed) type RDD test, – AC or A (continuous component detection).
- Operates on TT neutral and TN system.
- Operating voltage : 230V (Ph/N) – 10/+6% 50/60 Hz.
- CAT III 600V. Double insulation.
- IEC 61010-1. IEC 61557-6 NF. EN 61557-6. IEC 61236 (EMC).
- Locking and warning signals for 400V network voltage and contact potential >50V.
- Test and measure the trip values of RDDS (Residual Differential Devices): -in trip time (expressed in ms ) or -in trip current value (expressed in mA).

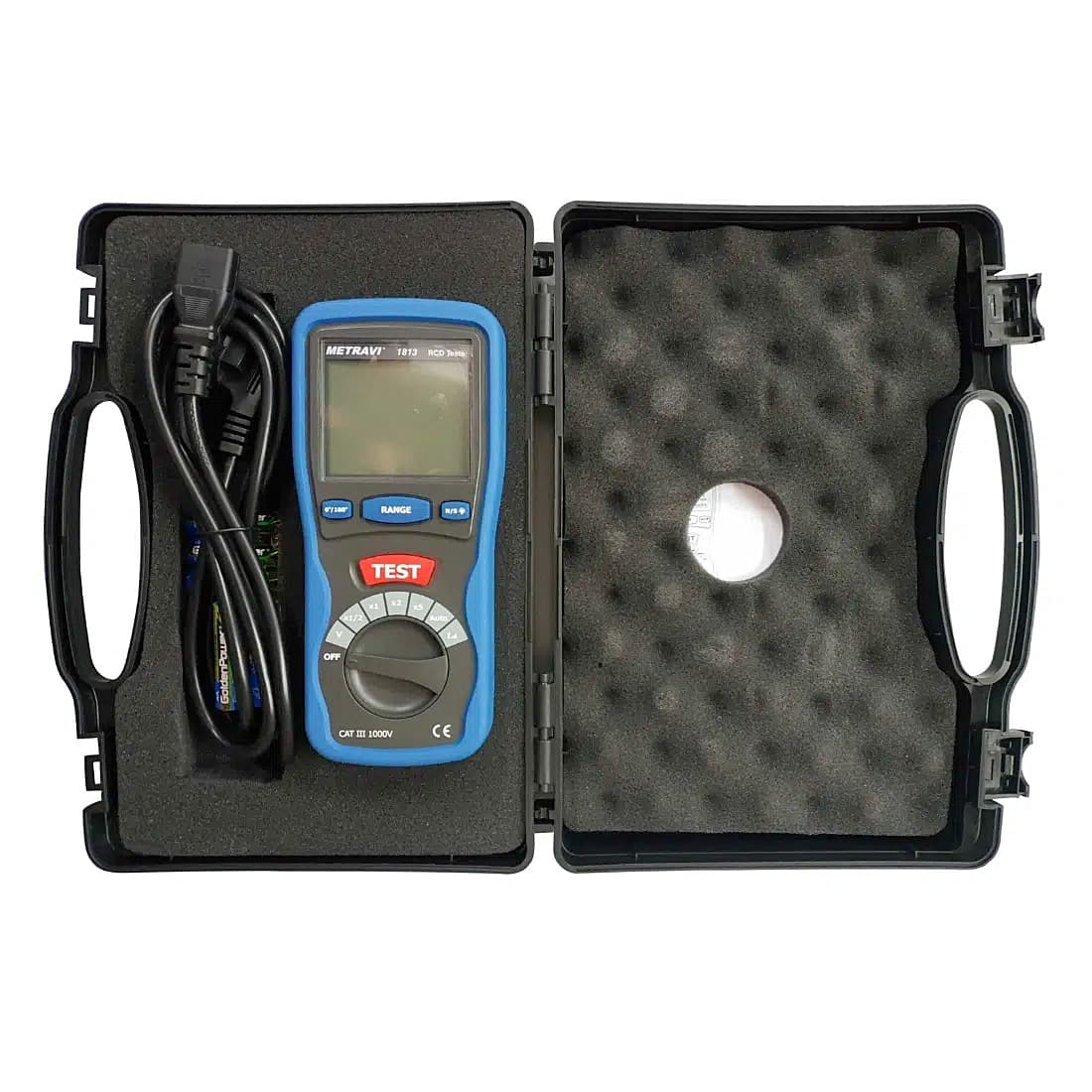

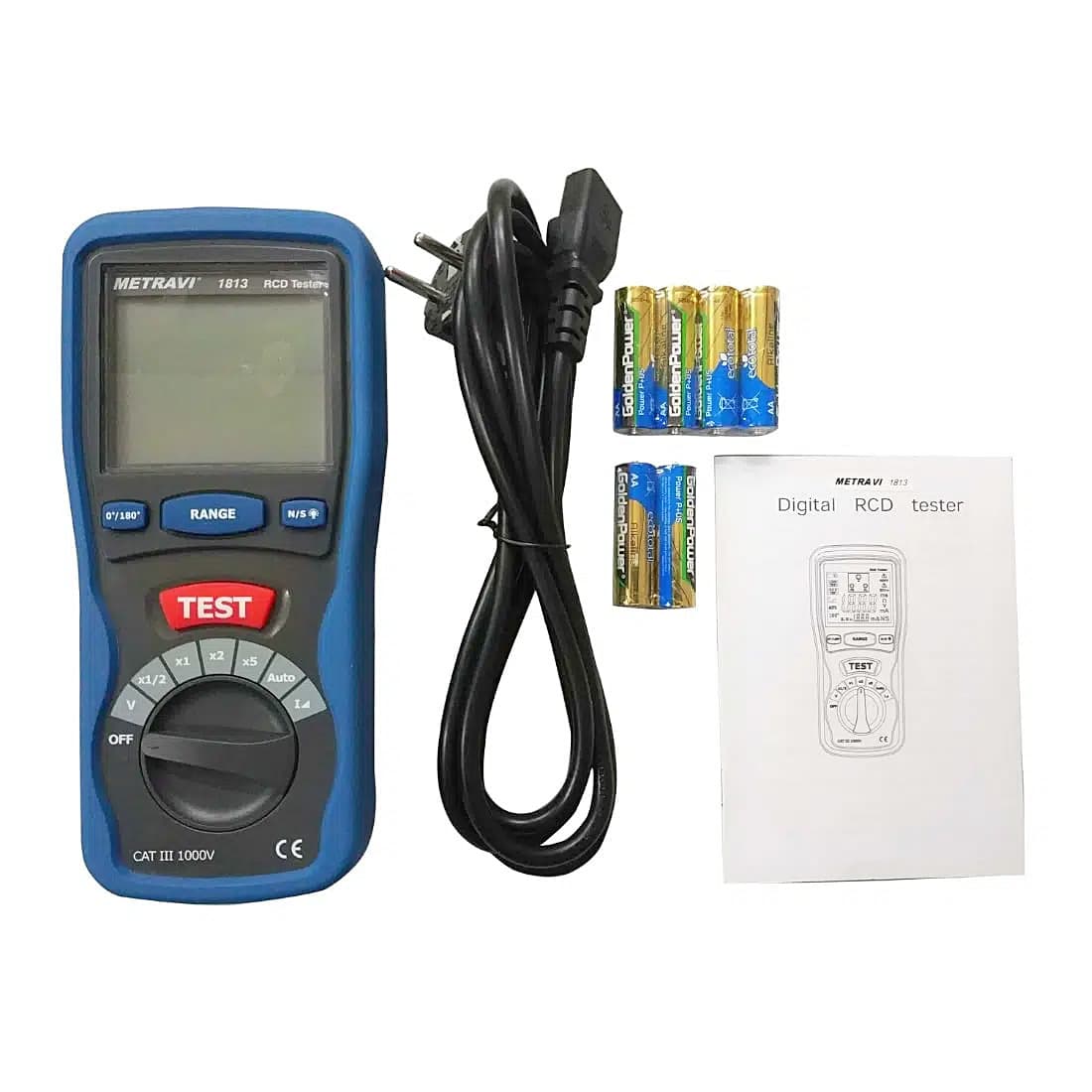

What's Included In This Package:
- 1x Metravi 1813 Digital ELCB / RCCB Tester
- 1x Test line
- 1x Carrying case

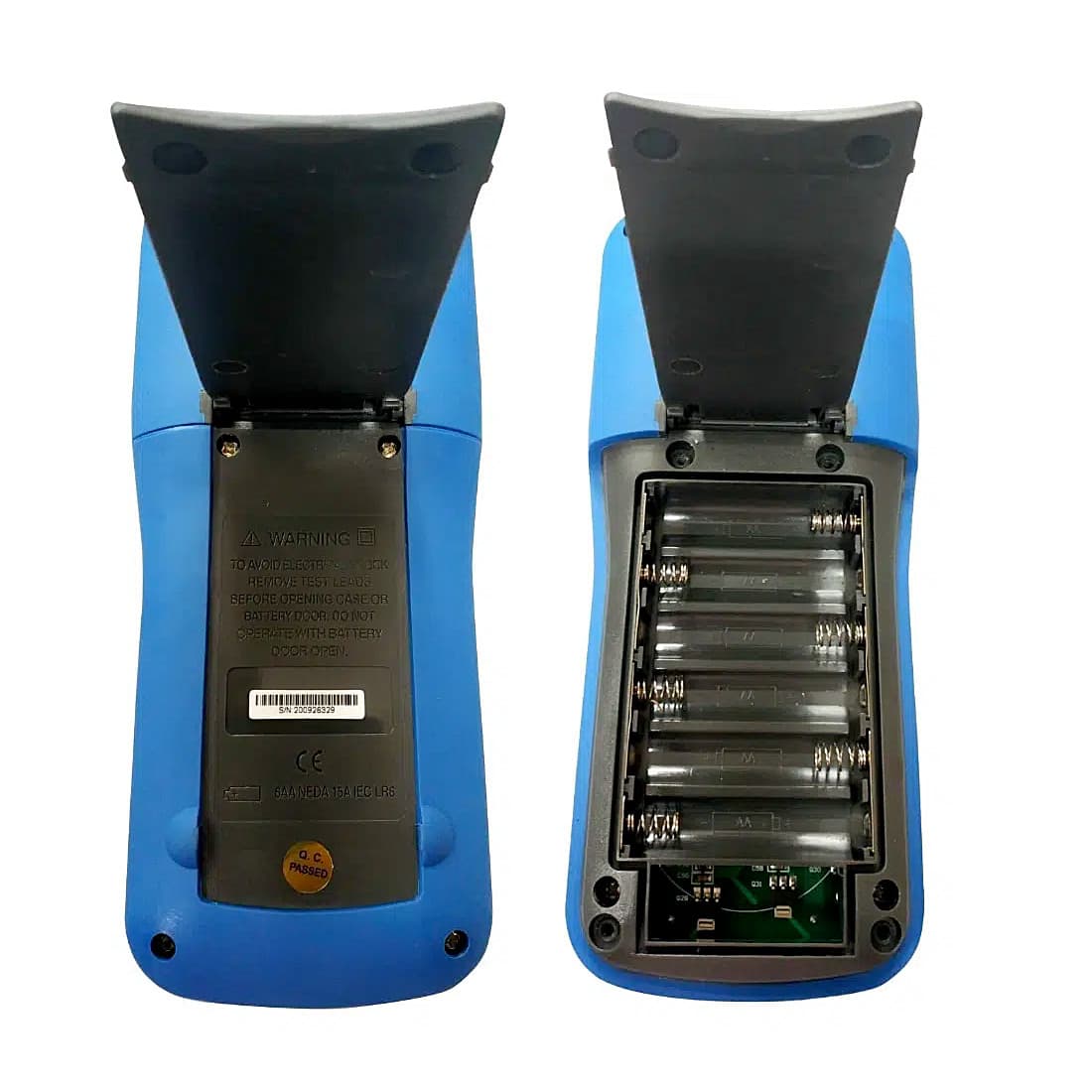

- 6x Alkaline AA batteries
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Colour | Blue-Black |
|---|---|
| Display | 3-digit measurement display |
| Earthing Systems | Operates on TT neutral and TN system |
| Operating Voltage | 230V (Ph/N) – 10/+6% 50/60 Hz |
| Trip Current | value expressed in mA |
| Trip Time | 10-150 ms at 2x, 10-2000 ms at 0.5x, 10-40 ms at 5x, 10-500 ms at 1x |
| Test Current | 10/30/100/500mA/1A |
| Current Selection | 0.5x, 1x, 2x, 5x nominal current |
| Ramp Test Mode | 0.4x - 1.4 times nominal rated current |
| Power Source | Battery Operated |
| Battery Size | AA |
| Battery Type | Alkaline |
| No of Batteries | 6 |
| Locking and Warning Signals | For 400V network voltage and contact potential >50V |
| Dust & Water Proof | IP40 |
| Operating temperature | -15°C / +45°C |
| Storage temperature | -25°C / +70°C |
| Length x Width x Height (mm) | 200 x 92 x 50 |
| Certifications | CAT-III 600V, EN 61557-6, IEC-61010-1, IEC-61236, IEC-61557-6 |
