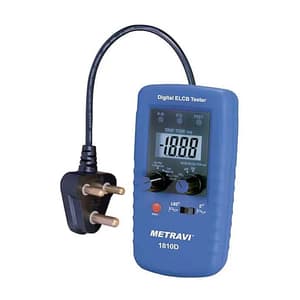

Metravi 500mA Current Rating Digital ELCB Tester, 1810D

The 1810D is the Basic test Equipment an Electrician cannot do without.1810D is a Dual Function Test Instrument used to Verify electrical Wiring Connections and the Functioning of Earth leakage / Residual current detector devices by forcing the ELCB/RCD to trip. This verifies that the protection device opens the mains power supply circuit when a current higher than a certain amplitude flows into the ground/earth wire.This ensures the Electrical installations meet safety and regulation requirements.

Digital ELCB Tester with Current Rating up to 500mA, Trip Test, Fault Trip Time, Self Powered, verifies wiring connection, 2000mS readout for testing latest ELCB

Features:

• 2000mS readout for testing latest delay action breakers
• Fully programmed operation
• Accurate digital read out of tripping time
• Two LED lamps give quick check for correct wiring
• Operates from mains supply. No need for batteries
• Compact, lightweight and simple to operate
• Zero cross circuitry permits testing at 0°and 180°portion of sine wave. At these two tests minimum (best) and maximum (worst) trip times will be displayed
• Trip Current Setting: 5mA, 10mA, 30mA, 100mA, 300mA, 500mA
• Operating Voltage: 220 / 230 / 240V AC, 50/60Hz
• Data hold function to freeze the digital trip time display allows for easy readout and eliminates the possibility of reading error

What's Included In This Package:

• 1x Metravi 1810D Digital ELCB Tester
• 1x Instruction manual
• 1x Test report
• 1x Carrying case
