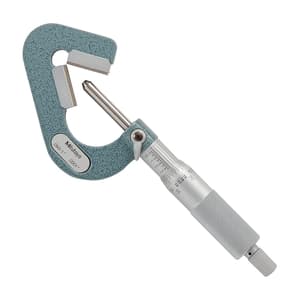

Mitutoyo 0.09 - 1 inch V-Anvil Micrometer with Carbide Tip (3 Flute), 114-202
Roll over the image to zoom in
Key Features
- Product Type: V-Anvil Micrometer
- Weight: 290 g
- Range (Inches): 0.09 - 1 inch
- Flutes: 3
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹22,090 (Incl. of all taxes)
₹18,720 + ₹3,370 GST (18%)
MRP was MRP ₹24,960
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 3-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement. High resolution provided by a vernier scale on the sleeve.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures the outside diameter of cutting tools (such as taps, reamers, end mills) with an odd number of flutes.
- With ratchet stop for constant force.
- Supplied with setting standard.
- V-anvils with a centerline groove are available; They are useful for measuring pitch diameters of taps which have a small diameter by using single-wire method.
Package Content:
- V-Anvil Micrometer
- Spanner
- Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (Inches) | 0.09 - 1 inch |
|---|---|
| Flutes | 3 |
| Graduation (inch) | 0.0001 inch |
| Max. Permissible Error (JMPE) | ±0.0002 inch |
| Anvil | 60 Degree (Without Groove) |
| Measuring Force | 5 - 10 |
| Measuring Spindle | With Spindle Lock ø6.35 mm & Spindle Pitch 0.75 mm |
| Scale Finishing | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
| Setting Standard | 167-337 ø 0.2 inch |
