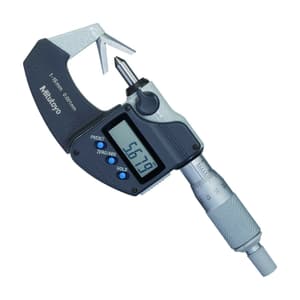

Mitutoyo 1 - 15 mm Digital V-Anvil Micrometer without Groove (3 Flute), 314-261-30
Roll over the image to zoom in
Key Features
- Product Type: V-Anvil Micrometer
- Weight: 275 g
- Range (mm): 1 - 15 mm
- Flutes: 3
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹37,657 (Incl. of all taxes)
₹31,913 + ₹5,744 GST (18%)
MRP was MRP ₹42,550
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This Digimatic V-Anvil Micrometer helps you to measure cutting tools & taps.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes.
- V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.
Functions:
- 2 x PRESET
- ZERO/ABS
- Auto Power OFF after 20 min. non use
- Function lock
- HOLD
- Low-voltage alarm

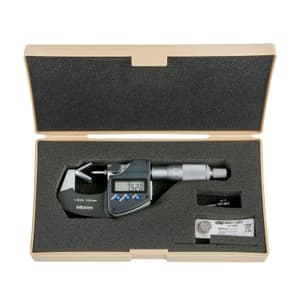

Package Content:
- Digital V-Anvil Micrometer
- Spanner
- Setting Standard
- 1x SR44 Battery
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

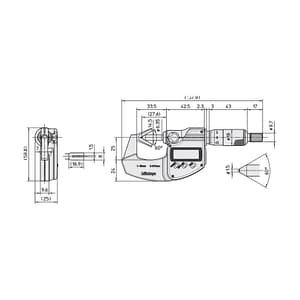

Specifications
| Range (mm) | 1 - 15 mm |
|---|---|
| Flutes | 3 |
| Resolution (mm) | 0.001 mm |
| Max. Permissible Error (JMPE) | ±4μm |
| Anvil | 60 Degree (Without Groove) |
| Measuring Force | 3 - 8 |
| Measuring Spindle | With Spindle Lock ø6.35 mm & Spindle Pitch 0.75 mm |
| Scale Finishing | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
| Setting Standard | 167 - 327 ø 5 mm |
| Display | LCD, Character Height 7.5 mm |
| Power Supply | 1x Battery SR-44 |
