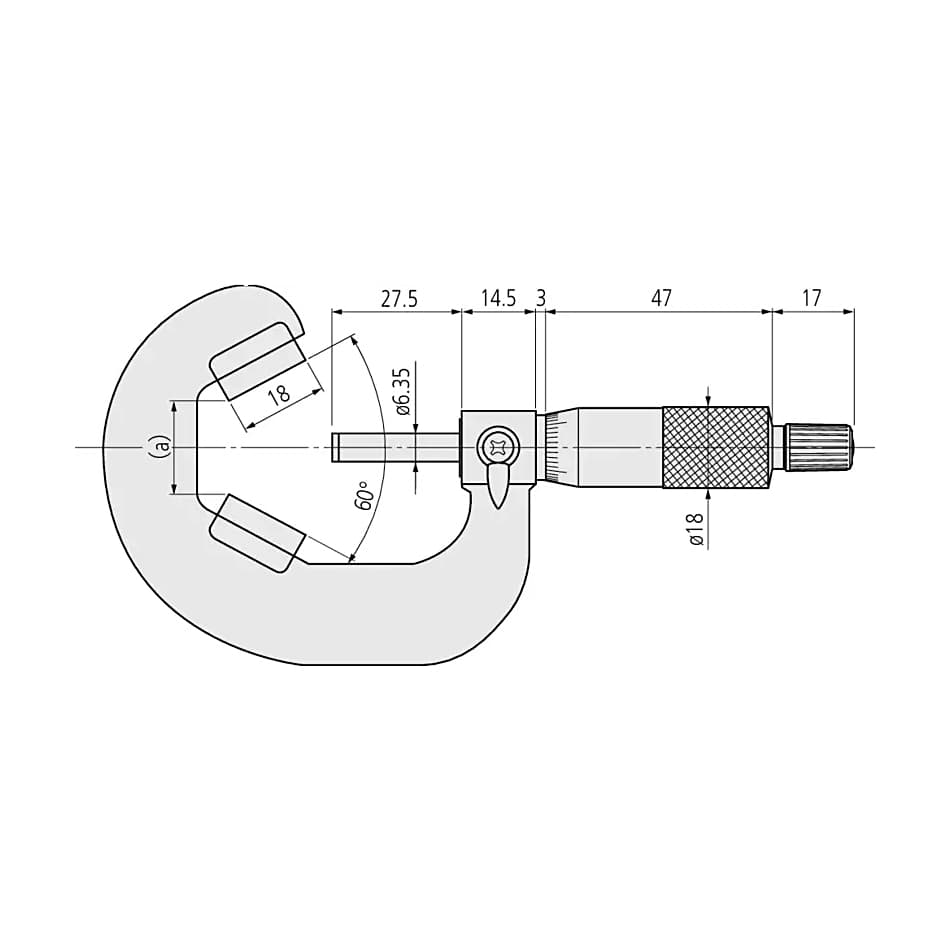

Mitutoyo 10 - 25 mm V-Anvil Micrometer with Carbide Tip (3 Flute), 114-102
Roll over the image to zoom in
Key Features
- Product Type: V-Anvil Micrometer
- Weight: 280 g
- Range (mm): 10 - 25 mm
- Flutes: 3
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹17,816 (Incl. of all taxes)
₹15,098 + ₹2,718 GST (18%)
MRP was MRP ₹20,130
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 3-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Package Content:
- V-Anvil Micrometer
- Spanner
- Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 10 - 25 mm |
|---|---|
| Flutes | 3 |
| Graduation (mm) | 0.01 mm |
| Max. Permissible Error (JMPE) | ±4μm |
| Anvil | 60 Degree (With Groove) |
| Measuring Force | 5 - 10 |
| Measuring Spindle | With Spindle Lock ø6.35 mm & Spindle Pitch 0.75 mm |
| Scale Finishing | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
| Setting Standard | 167 - 328 ø 10 mm |
