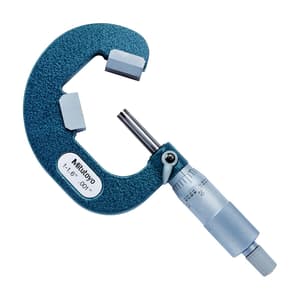

Mitutoyo 1 - 1.6 inch V-Anvil Micrometer with Carbide Tip (3 Flute), 114-113
Roll over the image to zoom in
Key Features
- Product Type: V-Anvil Micrometer
- Weight: 400 g
- Range (Inches): 1 - 1.6 inch
- Flutes: 3
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹19,505 (Incl. of all taxes)
₹16,530 + ₹2,975 GST (18%)
MRP was MRP ₹22,040
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 3-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures the outer diameter of cutting tools (as taps, reamers, end mills) have three or five flutes.
- With ratchet stop for constant
- V anvils with a Centreline Groove is available.
- These are useful for the measurement of pitch diameter of taps, the of the single-wire Style makes these three or five flutes.

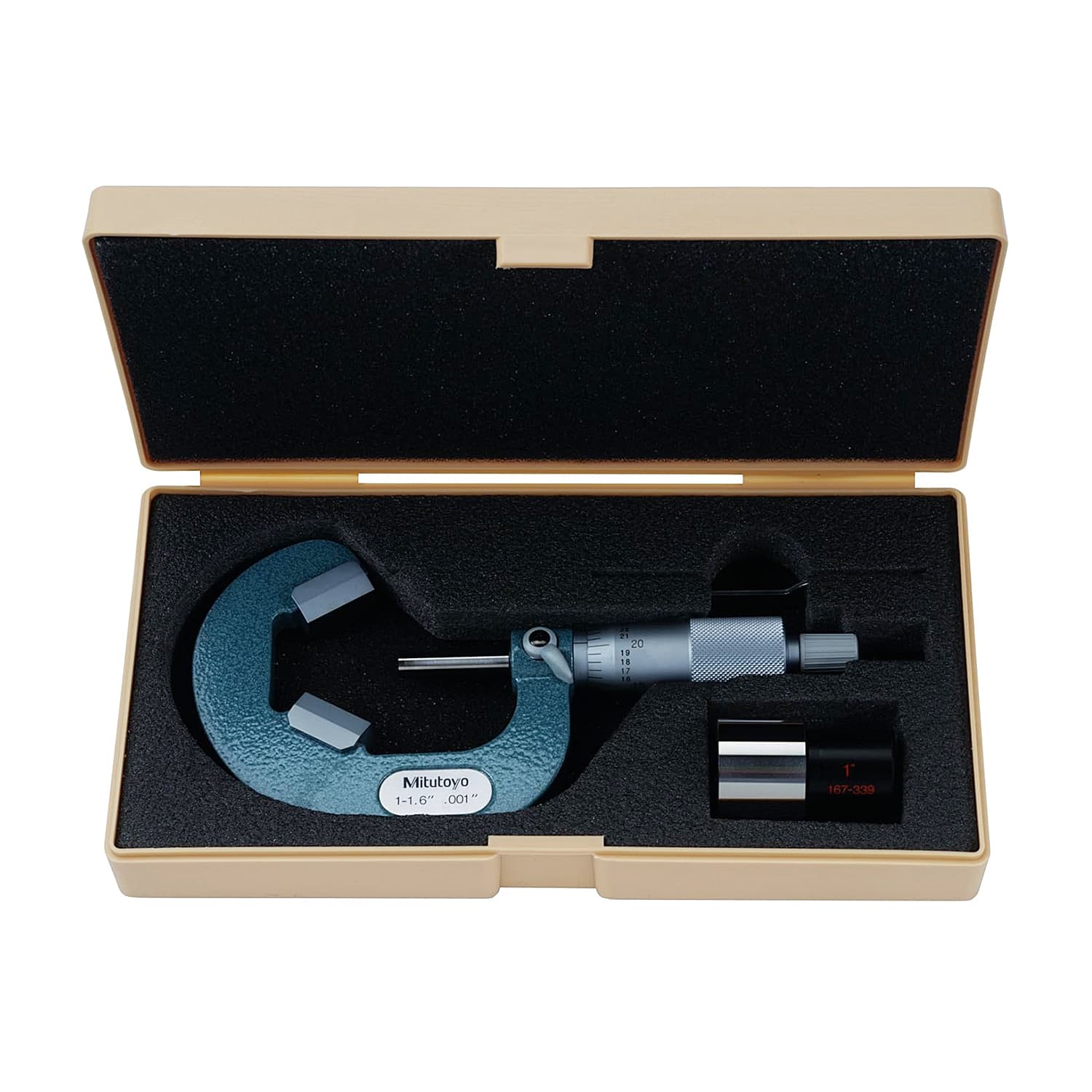

Package Content:
- V-Anvil Micrometer
- Spanner
- Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (Inches) | 1 - 1.6 inch |
|---|---|
| Flutes | 3 |
| Graduation (inch) | 0.001 inch |
| Max. Permissible Error (JMPE) | ±0.00025 inch |
| Anvil | 60 Degree (Without Groove) |
| Measuring Force | 5 - 10 |
| Measuring Spindle | With Spindle Lock ø6.35 mm & Spindle Pitch 0.75 mm |
| Scale Finishing | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
| Setting Standard | 167-339 ø1 inch |
