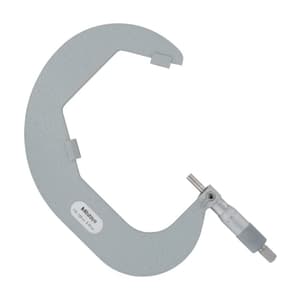

Mitutoyo 115 - 130 mm V-Anvil Micrometer with Carbide Tip (3 Flute), 114-109
Roll over the image to zoom in
Key Features
- Product Type: V-Anvil Micrometer
- Weight: 2.08 kg
- Range (mm): 115 - 130 mm
- Flutes: 3
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹38,002 (Incl. of all taxes)
₹32,205 + ₹5,797 GST (18%)
MRP was MRP ₹42,940
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 3-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- It measures the outside diameter of cutting tools (such as taps, reamers, end mills) that have three or five flutes.
- V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

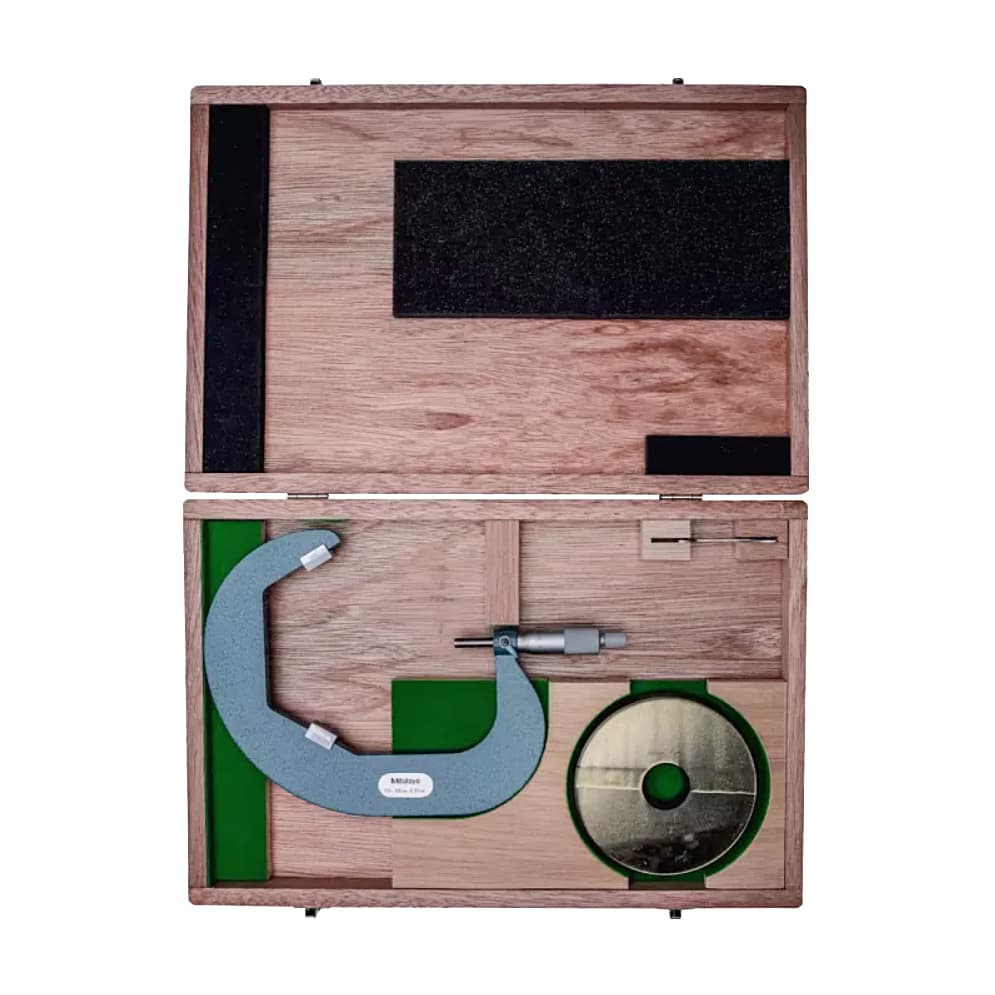

Package Content:
- V-Anvil Micrometer
- Spanner
- Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 115 - 130 mm |
|---|---|
| Flutes | 3 |
| Graduation (mm) | 0.01 mm |
| Max. Permissible Error (JMPE) | ±8μm |
| Anvil | 60 Degree (Without Groove) |
| Measuring Force | 5 - 10 |
| Measuring Spindle | With Spindle Lock ø6.35 mm & Spindle Pitch 0.75 mm |
| Scale Finishing | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
| Setting Standard | 167-335 ø115 mm |
