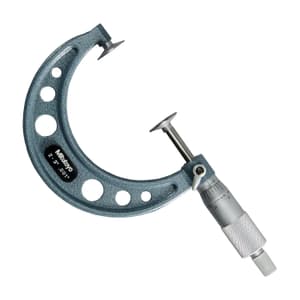

Mitutoyo 2 - 3 inch Disk Micrometer, 123-127
Roll over the image to zoom in
Key Features
- Product Type: Disk Micrometer
- Weight: 250 g
- Range (Inches): 2 - 3 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,983 (Incl. of all taxes)
₹7,613 + ₹1,370 GST (18%)
MRP was MRP ₹10,150
Save 25%
1 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures "root tangent length" of spur gears and helical gears.
- Equipped with a Ratchet Stop for constant measuring force.
Package Content:
- Disc Micrometer
- Spanner
- Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (Inches) | 2 - 3 inch |
|---|---|
| Graduation | 0.001 inch |
| Max. Permissible Error JMPE | ±0.0003 inch |
| Anvil Dia | 0.787 inch |
| Measurable Module | 0.5 - 6 mm |
| Flatness | 0.00004 inch |
| Parallelism | 0.00024 inch |
| Measuring Force | 5 - 10 |
| Disk Size | 20 mm |
| Scale | Thimble & Sleeve Satin Chrome Finish |
