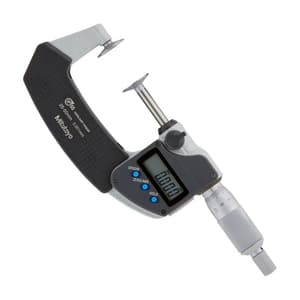

Mitutoyo 25 - 50 mm Digital Disk Micrometer, 323-251-30
Roll over the image to zoom in
Key Features
- Product Type: Disk Micrometer
- Weight: 355 g
- Range (mm): 25 - 50 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹35,577 (Incl. of all taxes)
₹30,150 + ₹5,427 GST (18%)
MRP was MRP ₹40,200
Save 25%
1 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This Digimatic Disc Micrometer enables you to measure hard-to-reach features.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:

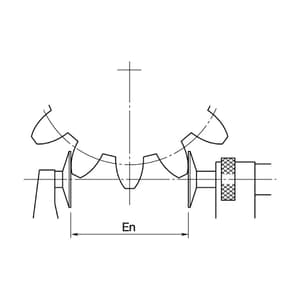

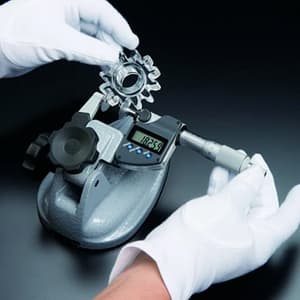

- Measures "root tangent length" of spur gears and helical gears.
- Equipped with a Ratchet Stop for constant measuring force.

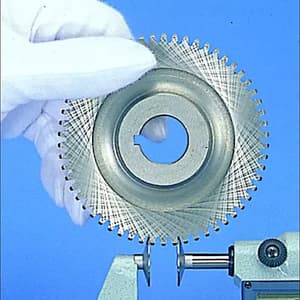

- You can measure recessed features that are difficult to reach with a standard micrometer.
Functions:
- ABS / INC (INC ZERO)
- Auto Power OFF after 20 min. non use
- Function lock
- HOLD
- Low-voltage alarm
- ORIGIN
Package Content:
- Disc Micrometer
- Spanner
- Setting Standard
- 1x SR44 battery

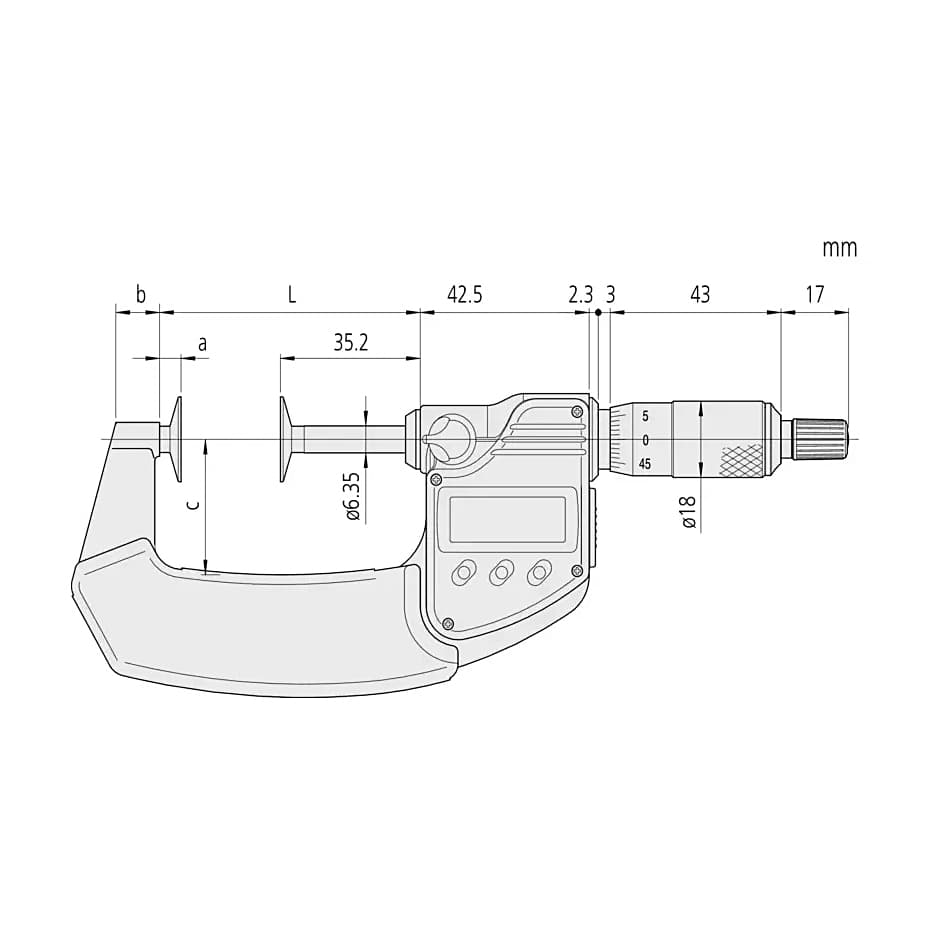

Dimensions Measurement:
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 25 - 50 mm |
|---|---|
| Resolution | 0.01 mm |
| Max. Permissible Error JMPE (μm) | ±4μm |
| Anvil Dia (mm) | Ø20 mm |
| Measurable Module | 0.5 - 6 mm |
| Flatness | 1μm |
| Parallelism | 4μm |
| Measuring Force | 3 - 8 N |
| Disk Size | 20 mm |
| Scale | Thimble & Sleeve Satin Chrome Finish |
| IP Rating | IP65 (Dust & Water Protected) |
| Display | LCD, Character Height 7.5 mm |
| Power Supply | 1x Battery SR-44 |
| Measuring Face | Hardened Steel, Micro-lap Finish |
| Measuring Spindle | With Spindle Lock, Ø6.35 mm, Spindle Pitch 0.5 mm |
