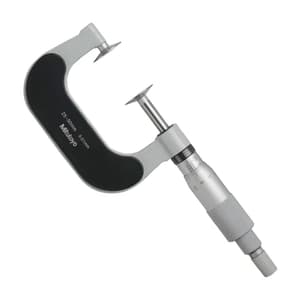

Mitutoyo 25 - 50 mm Non-Rotating Spindle Disk Micrometer, 169-202-10
Roll over the image to zoom in
Key Features
- Product Type: Disk Micrometer
- Weight: 280 g
- Range (mm): 25 - 50 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,621 (Incl. of all taxes)
₹13,238 + ₹2,383 GST (18%)
MRP was MRP ₹17,650
Save 25%
1 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This Disc Micrometer has a non-rotating spindle and allows you to measure a range of different materials.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures "root tangent length" of spur gears and helical gears.
- Equipped with a Ratchet Stop for constant measuring force.
- A non-rotating spindle and disc-shaped measuring surfaces.
- Measuring the root tangent length of spur and helical gears
- It‘s suitable for measuring materials such as felt, rubber, cardboard & fabric.
Package Content:
- Disc Micrometer
- Spanner
- Setting Standard
Dimensions Measurement:
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 25 - 50 mm |
|---|---|
| Graduation | 0.01 mm |
| Max. Permissible Error JMPE (μm) | ±4μm |
| Anvil Dia (mm) | Ø20 mm |
| Flatness | 1μm |
| Parallelism | 4μm |
| Measuring Force | 3 - 8 N |
| Disk Size | 20 mm |
| Scale | Thimble & Sleeve Satin Chrome Finish |
| Measuring Face | Hardened Steel, Micro-lap Finish |
