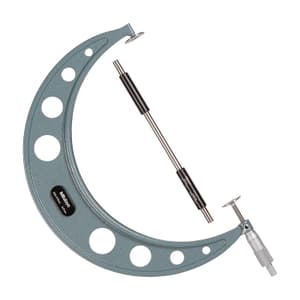

Mitutoyo 250 - 275 mm Disk Micrometer, 123-111
Roll over the image to zoom in
Key Features
- Product Type: Disk Micrometer
- Weight: 1.41 kg
- Range (mm): 250 - 275 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,497 (Incl. of all taxes)
₹13,133 + ₹2,364 GST (18%)
MRP was MRP ₹17,510
Save 25%
1 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures "root tangent length" of spur gears and helical gears.
- Equipped with a Ratchet Stop for constant measuring force.
- Measuring the root tangent length of spur and helical gears.
- You can measure recessed features that are difficult to reach with a standard micrometer.

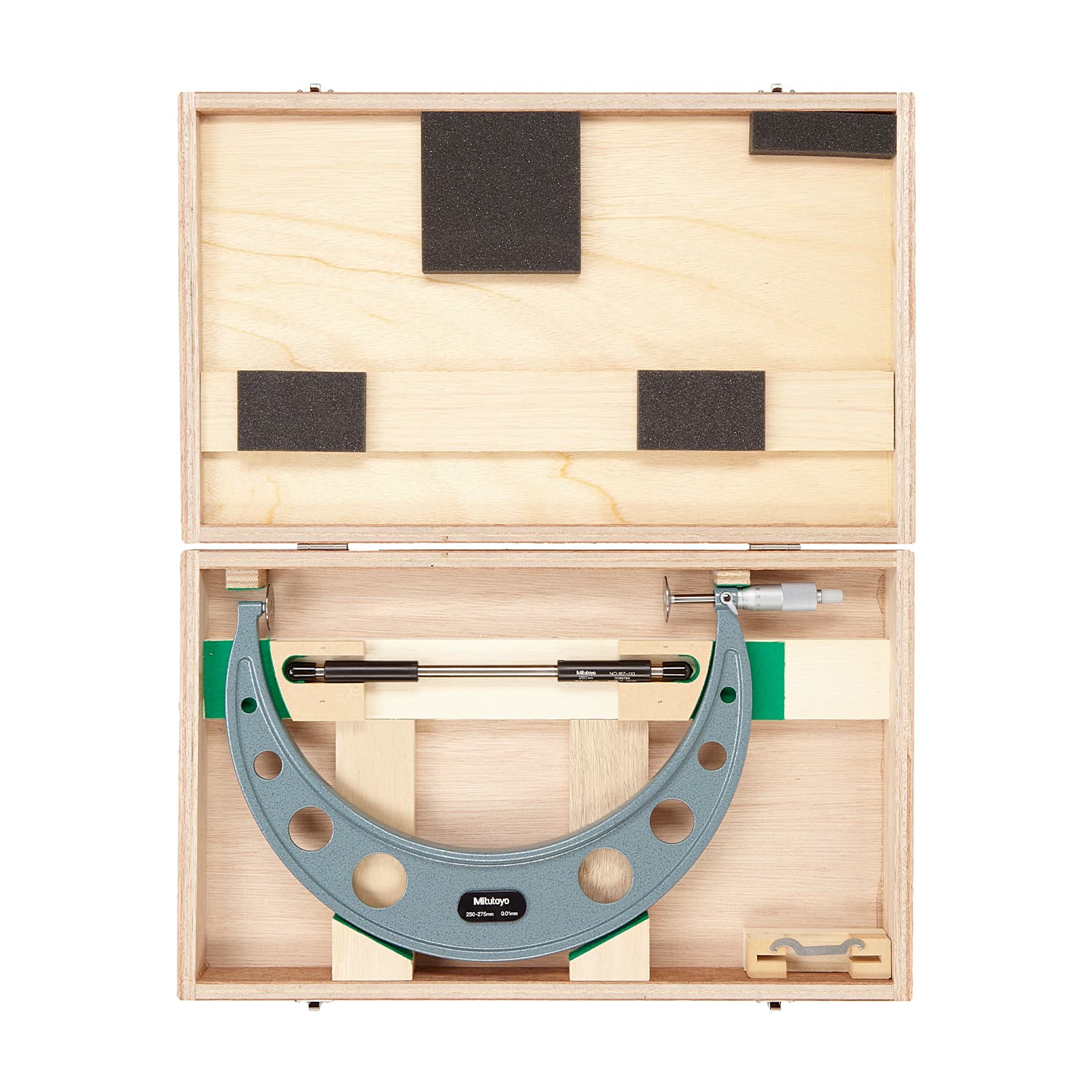

Package Content:
- Disc Micrometer
- Spanner
- Setting Standard
Dimensions Measurement:
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 250 - 275 mm |
|---|---|
| Graduation | 0.01 mm |
| Max. Permissible Error JMPE (μm) | ±9μm |
| Anvil Dia (mm) | Ø30 mm |
| Measurable Module | 0.7 - 11 mm |
| Flatness | 1.6μm |
| Parallelism | 9μm |
| Measuring Force | 5 - 10 |
| Disk Size | 30 mm |
| Scale | Thimble & Sleeve Satin Chrome Finish |
