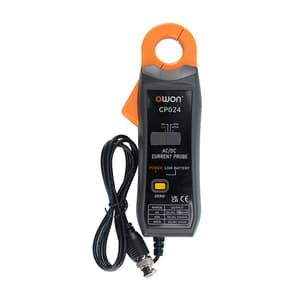

Owon 4A - 400A AC/DC Current Clamp Probe, CP024
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 250 g
- Test Range: 4A to 400A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹19,158 (Incl. of all taxes)
₹16,236 + ₹2,922 GST (18%)
MRP was MRP ₹19,800
Save 18%
2 Business Days
1
90309090
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available
Highlights
- Auto Zero at power on
- Low battery indication
Technical Data:
|
Range |
Sensitivity |
Accuracy |
|---|---|---|
| DC Current | ||
|
DC 4A |
1 mV/10 mA |
±(1.5%rdg±5d) |
|
DC 40A |
1 mV/ 0.1A |
±(1.5%rdg±5d) |
|
DC 300A |
1 mV/ 1A |
±(1.5%rdg±5d) |
|
DC 300 - 400A |
1 mV/ 1A |
±(3.5%rdg±5d) |
| AC Current | ||
|
AC 4A |
1 mV/ 10mA |
±(2.0%rdg±5d) |
|
AC 40A |
1 mV/ 0.1A |
±(2.0%rdg±5d) |
|
AC 300A |
1 mV/ 1A |
±(2.0%rdg±5d) |
|
AC 300A - 400A |
1 mV/ 1A |
±(3.5%rdg±5d) |
Package Content:
- 1x Clamp Probe (CP024)
- Quick Guide
- Soft Bag
- Battery (Optional)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Test Range | 4A to 400A |
|---|---|
| Error by Earth Magnetic | ±30mA max |
| Remanence (±100A/10A) | ±30mA max |
| Bandwidth | DC 200KHz (±3dB) |

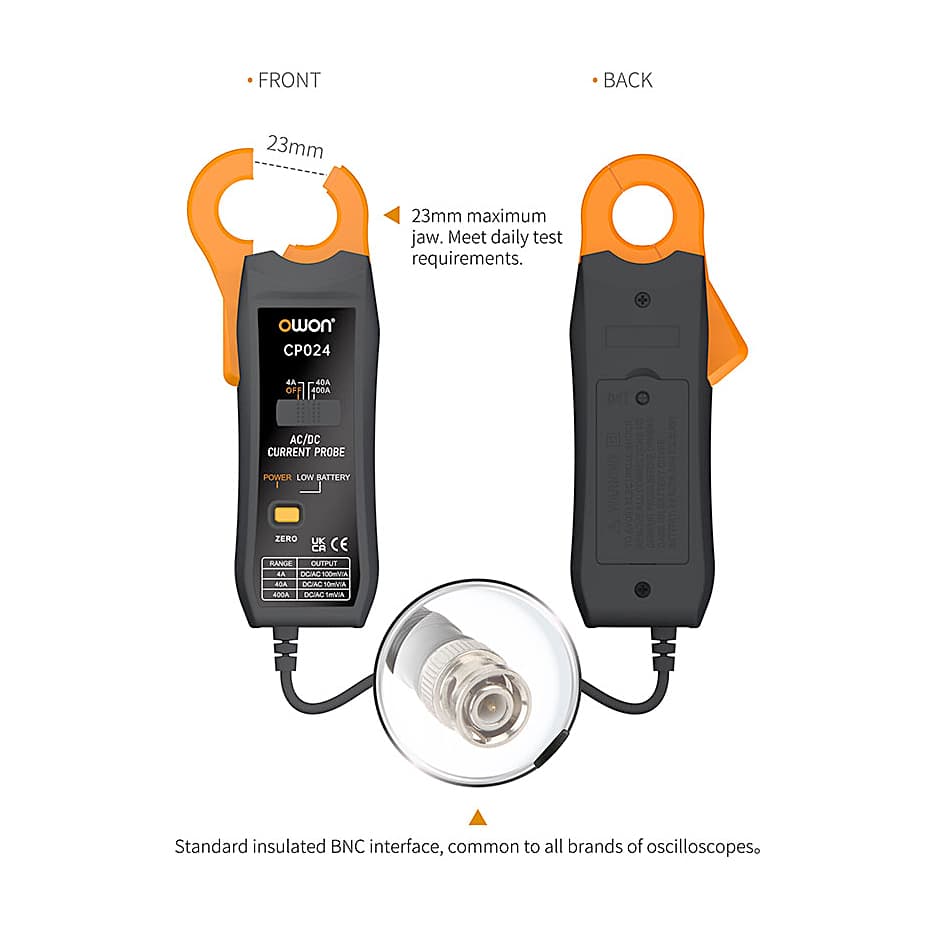

| Jaw Size | 23mm (Max) |
| Operating Temperature | 0°C to 50°C, <70%RH |

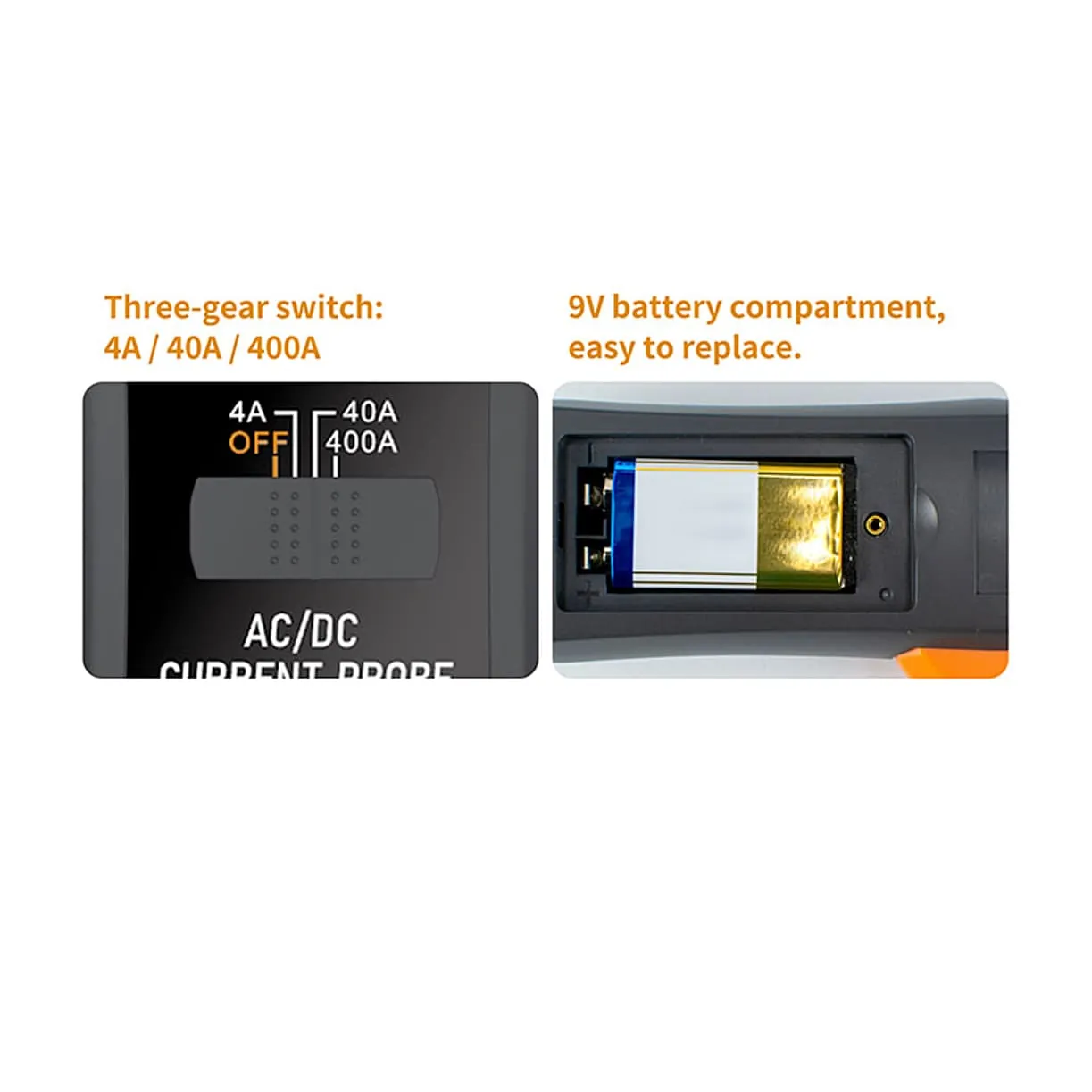

| Power Supply | 9V Battery (6LR61) (Optional) |
| Dimensions (L x W x H) | 100 x 45 x 220 mm |
