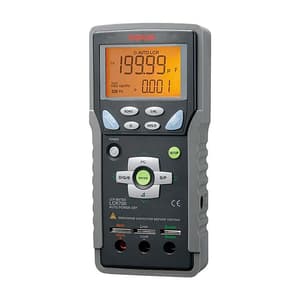

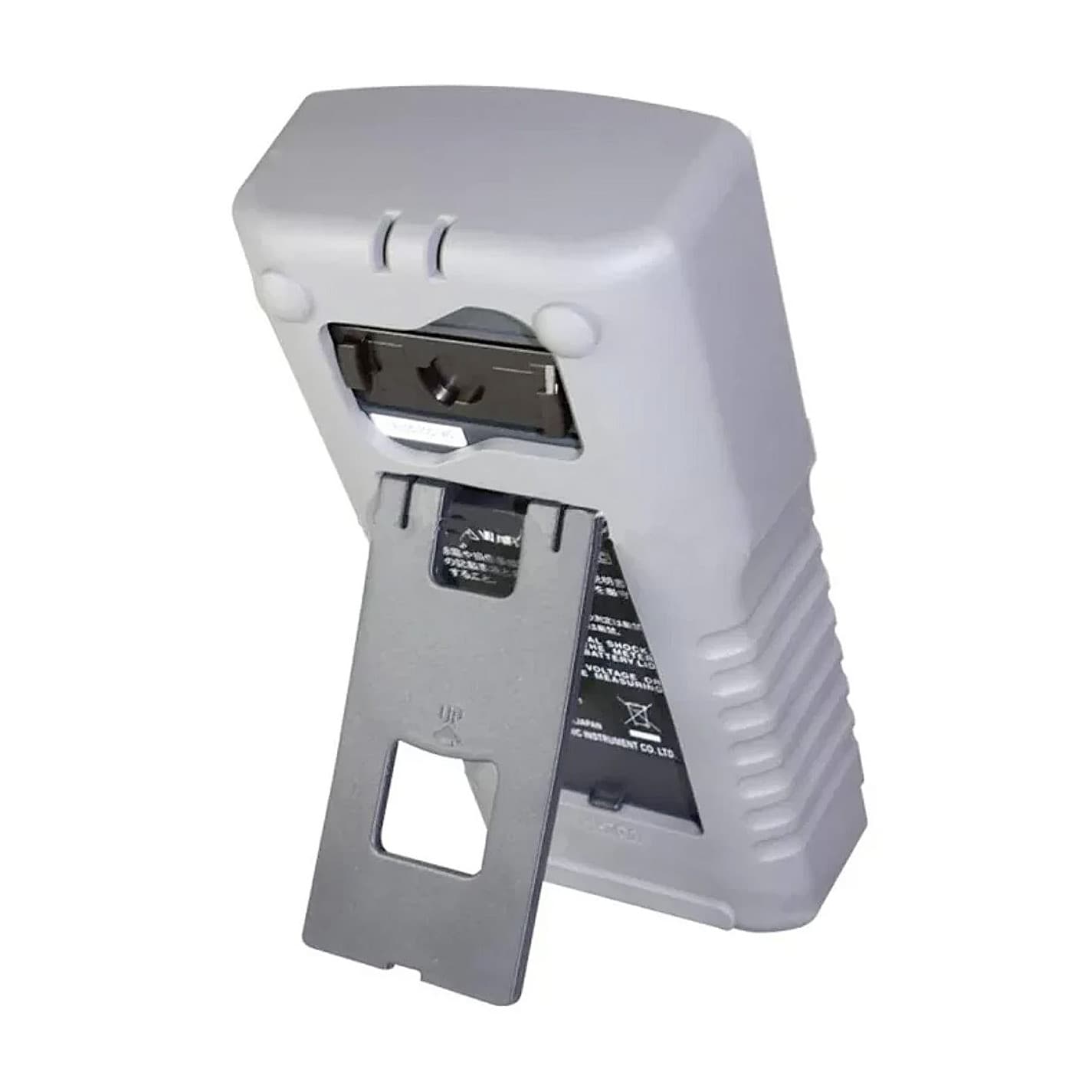

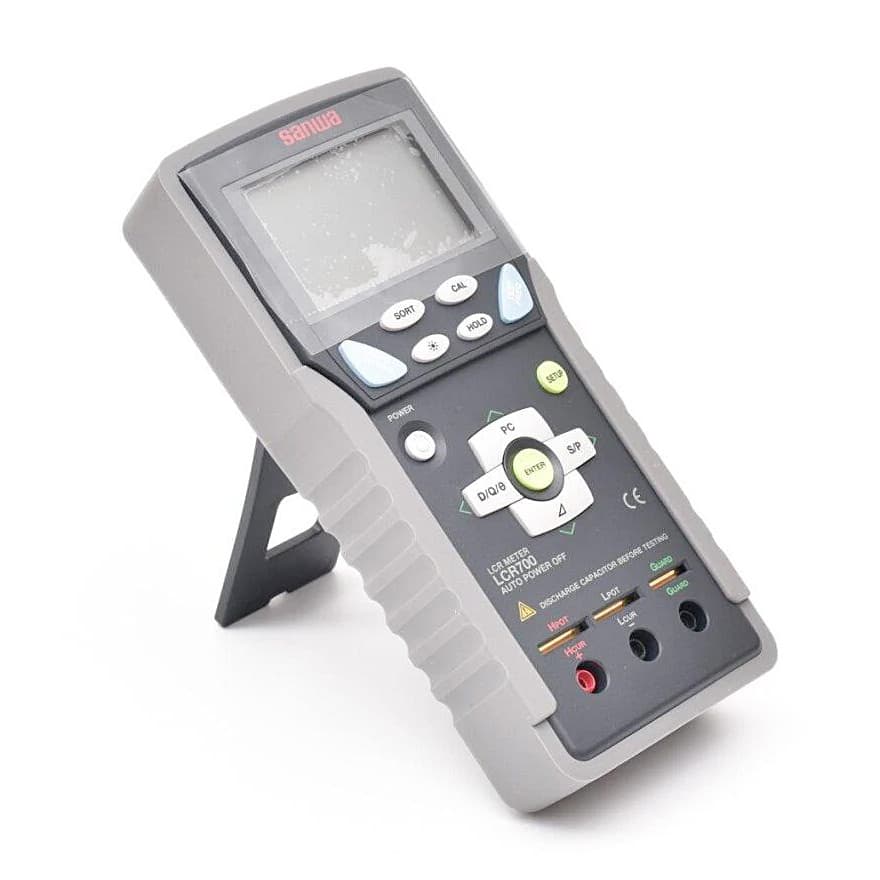

Sanwa 100Hz - 100kHz Handheld Digital LCR Meter, LCR700

Shop all Sanwa

SKU: ME.EL.LC.00016

Model: LCR700

Roll over the image to zoom in

Visit Sanwa Store

Key Features

  • Product Type: LCR Meter
  • Weight: 400 g
  • Measurement Frequencies: 100 / 120 / 1k /10k / 100kHz
  • Sampling Rate: 1.2 times / second (LCR mode) / 0.5 times /second (DCR mode)
See all product information

ToolBuy Benefits

₹26,338 (Incl. of all taxes)

₹22,320 + ₹4,018 GST (18%)

MRP was MRP ₹24,800

Save 10%

7 Business Days

1

–

Download Product LeafletNot available
Download Sanwa CatalogueNot available

Highlights

  • LCR700 is a full-featured, high-performance LCR meter that rivals the capabilities and options of many of its benchtop counterparts.
  • This instrument features a device value sorting function, allowing users to quickly sort passive devices in situations such as incoming inspections.
  • Automatically selectable L/C/R measurement and Selectable Series/Parallel mode
  • Ls/Lp/Cs/Cp measurement with sub parameters (D/Q/ Ω¸/ESR)
  • 5 different measuring frequencies (100/120/1k/10k/100kHz)
  • DC resistance function (7 ranges: 200.00 Ω to 200.0M Ω)
  • 5-terminal measurement (4 terminals plus guard shielding)

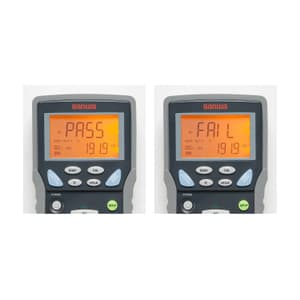

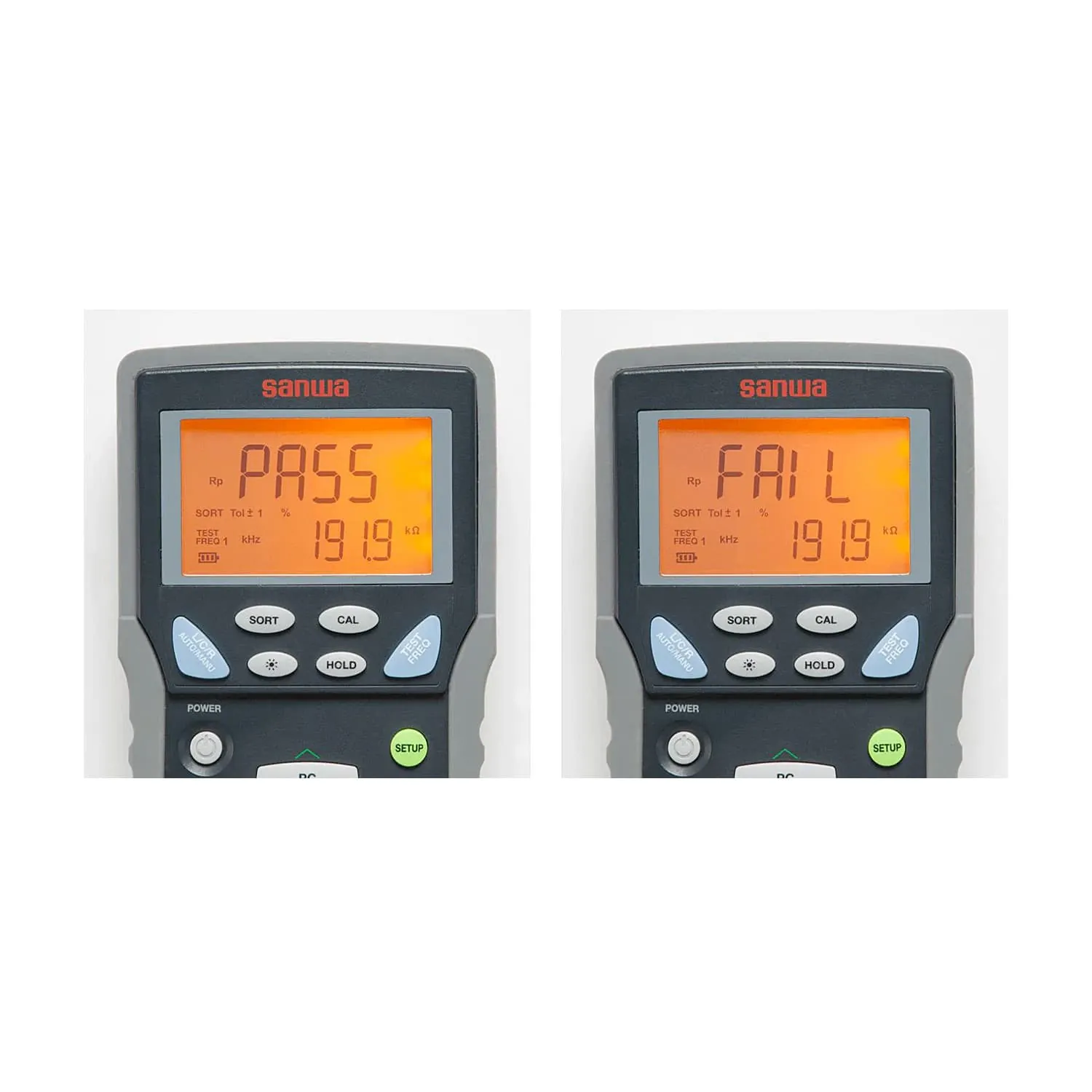

  • Device Sorting mode to allow users to quickly sort passive devices such as L, C, and R
  • Separately available companion software and "LCR-USB" communication unit will allow you to transfer the measured data to your PC with ease.


Technical Data:

Functions Ranges
Ls/Lp 20.000u / 200.00u / 2000.0u / 20.000m / 200.00m / 2000.0m /  20.000 / 200.00 / 2000.0 / 20.000kH
Cs/Cp 200.00p / 2000.0p / 20.00n / 200.00n / 2000.0n / 20.000u / 200.00u / 2000.0u / 20.00mF (50pF or less: out of accuracy)
Rs/Rp 20.000 / 200.00 / 2.0000k / 20.000k / 200.00k / 2.0000M / 20.000M / 200.0MΩ
Ω 200.00 / 2.0000k / 20.000k / 200.00k / 2.0000M / 20.000M / 200.0MΩ

Data Hold
  • A value indicated on the display is fixed for reference even after the test lead is removed.
  • A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes.
Auto Power Off
Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function.
Backlight
Backlit display allows indicator reading in a dark place.
USB Connection
Data can be exported to a PC via USB port and optional cable.
Relative Value
A certain measured value is assumed as 0 and measured values after that are expressed by positive or negative values relative the value fixed as 0.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Sanwa 100Hz - 100kHz Handheld Digital LCR Meter, LCR700
Measurement Frequencies100 / 120 / 1k /10k / 100kHz
Sampling Rate1.2 times / second (LCR mode) / 0.5 times /second (DCR mode)
Power Supply6LF22/6LR61 Alkaline 9v
Battery LifeApprox. 35 Hours (Auto LCR Mode, 1 kHz)
Dimensions (H x W x D)184 x 87 x 45 mm
