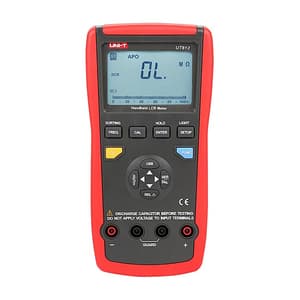

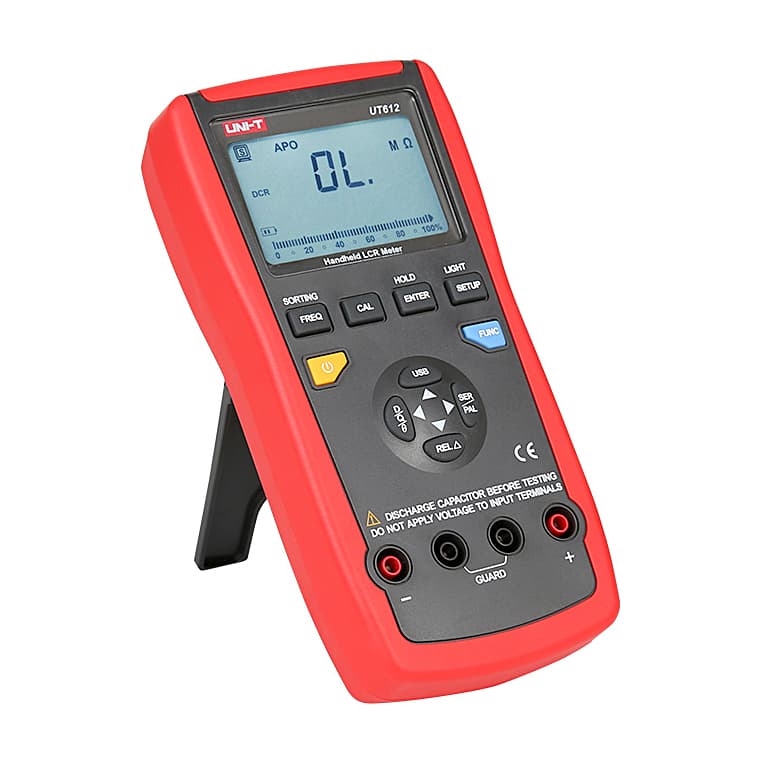

UNI-T 2000H / 200M Ohms Digital Handheld LCR Meter, UT612
Roll over the image to zoom in
Key Features
- Product Type: LCR Meter
- Weight: 374 g
- Inductance (H): 20uH ~ 2000H
- Resistance (Ohm): 20 Ohm ~ 200M Ohm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹14,443 (Incl. of all taxes)
₹12,240 + ₹2,203 GST (18%)
MRP was MRP ₹14,400
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT612 LCR meter is used to measure inductance, capacitance and resistance. Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 selectable frequencies in AC mode. UT612 can be used in production lines, component inspection and electronic maintenance.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Auto power off
- Data hold
- Relative mode
- USB interface
- LCD backlight
- Deviation ratio measurement
- Comparison function
- Calibration funtion
- Output impedance (120Ω)
- Auto LCR check and measurement
- Low battery indication (≤6.8V)
- Auto range
- Test frequency real-time display
- Measurement mode (Series / Parallel)
Accuracy:
- Inductance (H) & Capacitance (F): ±(0.5%+5)
- Resistance (Ω): ±(0.3%+5)
Package Content:
- 1x LCR Meter
- 1x 9V battery (6F22)
- SMD test clamp
- USB interface cable
- Multi-purpose socket
- PC software CD
- Gift box
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Inductance (H) | 20uH ~ 2000H |
|---|---|
| Capacitance (F) | 200pF ~ 20mF |
| Resistance (Ohm) | 20 Ohm ~ 200M Ohm |
| Test Frequency (Hz) | 100Hz / 120Hz / 1kHz / 10kHz / 100kHz |
| Operating Voltage | 0.6Vrms |
| Test Parameters | L / C / R / DCR / Q / D / 0 / ESR |
| Display Count | 20000 |
| D/Q Display Count | 2000 |
| D/Q Resolution | 0.001 |
| USB Interface / PC Data Records | 60000 |
| Analog Bar Graph | 26 |
| Power Supply | 9V Battery (6F22) |
| Display Size | 40 mm x 63 mm |
| Product Color | Red & grey |
| Dimensions (mm) | 96 x 193 x 47 mm |
