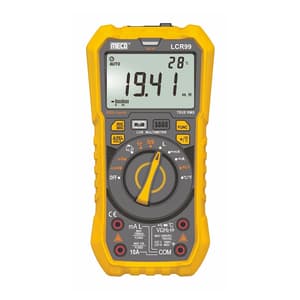

Meco 4 Digits / 9999 Counts TRMS Auto & Manual Ranging Digital LCR Multimeter, LCR99

Shop all Meco

SKU: ME.EL.LC.00026

Model: LCR99

Roll over the image to zoom in

Visit Meco Store

Key Features

  • Product Type: LCR Meter
  • Weight: 350 g
  • Display Digits: 4 Digits
  • Display Counts: 9999 Counts
See all product information

ToolBuy Benefits

₹3,882 (Incl. of all taxes)

₹3,290 + ₹592 GST (18%)

MRP was MRP ₹3,870

Save 15%

3 Business Days

1

90303100

Download Product LeafletNot available
Download Meco CatalogueNot available

Highlights

  • TRMS
  • Auto / Manual Ranging
  • Digital Dual Display
  • Temperature
  • Diode Test
  • Audible Continuity
  • Data Hold
  • Δ REL
  • Max / Min
  • Peak
  • Red & Green Light Indication for Input Terminal Selection
  • Red Backlight for High Voltage Alert
  • NCV
  • Torchlight
  • Bargraph
  • LCD with Backlight
  • Auto Power Off
  • Low Battery Indication


Technical Data:

DC Voltage
  • Range: 99.99 / 999.9mV / 9.999 / 99.99 / 999.9V
  • Accuracy: ± (0.5% rdg + 5 dgt) on all ranges except ± (0.8% rdg + 5 dgt) on 999.9V
AC Voltage (TRMS)
  • Range: 99.99 / 999.9mV / 9.999 / 99.99 / 750.0V
  • Accuracy: ±(1.0% rdg + 4 dgt) on all ranges except ±(1.2% rdg + 4 dgt) on 750.0V
  • AC Response: 10Hz ~ 1KHz
DC Current
  • Range: 99.99 / 999.9mA / 9.999A
  • Accuracy: ±(1.2% rdg + 5 dgt) on 99.99 / 999.9mA ± (2.0% rdg + 5 dgt) on 9.999A
AC Current (TRMS)
  • Range: 99.99 / 999.9mA / 9.999A
  • Accuracy: ± (1.5% rdg + 5 dgt) on 99.99 / 999.9mA ± (2.0% rdg + 5 dgt) on 9.999A
  • AC Response: 40Hz ~ 1KHz
Resistance
  • Range: 999.9Ω / 9.999 / 99.99 / 999.9KΩ / 9.999 / 99.99M Ω
  • Accuracy: ±(0.8% rdg + 5 dgt) on all ranges except ±(1.2% rdg + 5 dgt) on 99.99MΩ
Capacitance
  • Range: 9.999 / 99.99 / 999.9nF / 9.999 / 99.99 / 999.9μF / 9.999 / 99.99mF
  • Accuracy: ±(4.0% rdg + 5 dgt) on all ranges except ±(5.0% rdg + 5 dgt) on 9.999 / 99.99mF
Inductance
  • Accuracy: ±(4.0% rdg + 5 dgt)
Frequency & Duty Cycle
  • Accuracy: ±(1.5% rdg + 5 dgt)
Temperature
  • Accuracy: ± (1.0% rdg + 3 dgt)


Package Content:

  • Digital LCR Multimeter
  • One Pair of Test Leads
  • Holster
  • Battery (installed)
  • Instruction Manual
  • K Type Thermocouple (upto 260°C)
  • Carrying Case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Meco 4 Digits / 9999 Counts TRMS Auto & Manual Ranging Digital LCR Multimeter, LCR99
Display Digits4 Digits
Display Counts9999 Counts
DC VoltageUpto 999.9V
AC VoltageUpto 750.0V
AC/DC CurrentUpto 9.999A
ResistanceUpto 99.99MOhm
CapacitanceUpto 99.99mF
InductanceUpto 99.99H
FrequencyUpto 9.99MHz
Duty Cycle0.1% ~ 99.9%
Temperature Measurement-55°C ~ 1000°C / -67°F ~ 1832°F
Measuring CategoryCAT II 1000V, CAT III 600V
Power Supply3x 1.5V AAA Batteries
Battery Life200 Hours Typical
Dimensions (mm)187 x 95 x 55 mm
