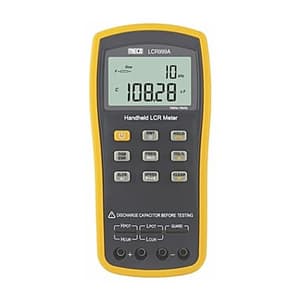

Meco LCR Meter, LCR 999A
Roll over the image to zoom in
Key Features
- Product Type: LCR Meter
- Weight: 395 g
- Speed: upto 10 meas / sec
- Output impedance: 100 ohm
- Input Protection Fuse: 0.1A, 63V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹33,914 (Incl. of all taxes)
₹28,741 + ₹5,173 GST (18%)
MRP was MRP ₹33,813
Save 15%
5 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
LCR Meters Measures: L, C, R, Z, D, Q, and ESR Signal Frequency: 100Hz - 10KHz Test Terminal, USB Interfacewith Software, Rechargable Battery, and AC Adaptor, Holster, Backlight, Series / Parallel Modes, Manual / Auto , Short / Open, Percentage / Min / Max / Average / Data Hold Functions
Features & Benefits:
- Basic measurement accuracy 0.1% & speed upto 10 meas / sec
- Large LCD display with bright white backlight
- Ultra low power consumption, battery powered for 24 hours of continuous use
- Automatic identification function (Ai).
- Percentage display & 4 tolerance comparator : 1%, 5%, 10% & 20%
- 9V battery & External power supply
- Automatic correction function with datahold, max. / min. / average recording
- Utility function configuration & current setup recovery after power off
- Standard Mini-USB interface, SCPI compatible
- Auto power Off
- Constant output impedance : 100 ohm
Application:
- Field maintenance test & external carrying test
- Fixation point on production line or mobile checkout
- Warehouse & real time spot or batch inspection
- Flow inspect and in field measurements
Accessories:
- Manual Short Circuit Plate x 1
- 7.2V Ni MH Rechargeable Battery (installed) x 1
- 12V/300mA AC Adapter x 1
- 5 Terminal Kelvin Test Leads x 1
- Optional : SMD 4 Terminal Kelvin Test Tweezers x 1 Banana Plugs - Crocodile Clip Test Leads x 1 Mini USB Communication Cable
Specifications:
| AC Adaptor: Input : 220V (1 +/- 10 Percentage, 50Hz (1 +/- 5 Percentage) Output 12V DC |
| Primary Parameters : L / C / R / Z |
| Secondary Parameter : D / Q / / ESR u |
| Auto LCR Function Manual / Auto |
| Ranging Mode Auto |
| Test Terminals 2-Terminal, 4-Terminal, 5-Terminal |
| Correction Short , Open |
| Tolerance Mode 1%, 5%, 10%, 20% |
| Input Protection Fuse 0.1A / 63V |
| Interface Mini-USB (Virtual Serial Port) |
| Test Signal: 100Hz, 120Hz, 1KHz, 10KHz |
| Test Signal Level 0.6 Vrms |
| Output Impedance 100V |
| Basic Accuracy 0.1% |
| C 4pF ~ 20mF Range for Display 0.001pF ~ 20.000mF |
| R / Z 0.4 ~ 10M Range for Display 0.0001 ~ 10.000M V V V V |
| Measuring Range ESR Range for Display 0.0000 ~ 999.9 , Resolution : 0.0001 V V V |
| L 4 H ~ 1000H Range for Display 0.001 H ~ 1000.0H m m |
| D Range for Display 0.0000 ~ 9.999, Resolution : 0.0001 |
| Q Range for Display 0.0000 ~ 9999, Resolution : 0.0001 |
| u Range for Display - 179.9 ~ 179.9 , Resolution : 0.0 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Speed | upto 10 meas / sec |
|---|---|
| Tolerance Comparator | 1%, 5%, 10% & 20% |
| Output impedance | 100 ohm |
| Measurement Parameters | Series /Parallel |
| Input Protection Fuse | 0.1A, 63V |
| Secondary Parameters | D/Q/O/ESR |
| Primary Parameters | L/C/R/Z |
| Dimensions | 193 x 93 x 48 mm (approx.) |
