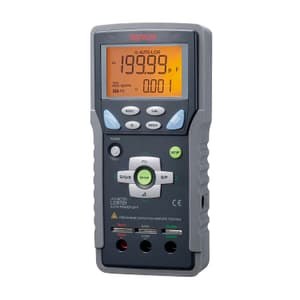

Sanwa 100Hz - 100kHz High-performance Handheld Digital LCR Meter, LCR701
Roll over the image to zoom in
Key Features
- Product Type: LCR Meter
- Weight: 400 g
- Measurement Frequencies: 100 / 120 / 1k /10k / 100kHz
- Sampling Rate: 1.2 times / second (LCR mode) / 0.5 times /second (DCR mode)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹26,338 (Incl. of all taxes)
₹22,320 + ₹4,018 GST (18%)
MRP was MRP ₹24,800
Save 10%
7 Business Days
1
–
Download Product LeafletNot available
Download Sanwa CatalogueNot available
Download Sanwa CatalogueNot available
Highlights
- Automatically selectable L/C/R measurement and Selectable Series/Parallel mode
- Ls/Lp/Cs/Cp measurement with sub parameters (D/Q/θ/ESR)
- 5 different measuring frequencies (100/120/1k/10k/100kHz)
- OPEN/SHORT Calibration function
- DC resistance function (7 ranges: 200.00Ω to 200.0MΩ)
- Device Sorting mode to allow users to quickly sort passive devices such as L, C, and R
- Optical link USB interface (optional)
- Data hold, Backlight, Relative function
Technical Data:
| Functions | Ranges | Best Accuracy |
|---|---|---|
| Ls/Lp | 20.000µ / 200.00µ / 2000.0µ / 20.000m / 200.00m / 2000.0m 20.000 / 200.00 / 2000.0 / 20.000kH |
±(0.3%+3) |
| Cs/Cp | 200.00p / 2000.0p / 20.00n / 200.00n / 2000.0n 20.000µ / 200.00µ / 2000.0µ / 20.00mF (50pF or less: out of accuracy) |
±(0.3%+3) |
| Rs/Rp | 20.000 / 200.00 / 2.0000k / 20.000k / 200.00k / 2.0000M / 20.000M / 200.0MΩ | ±(0.3%+3) |
| Ω(DCR) | 200.00 / 2.0000k / 20.000k / 200.00k / 2.0000M / 20.000M / 200.0MΩ | ±(0.3%+3) |

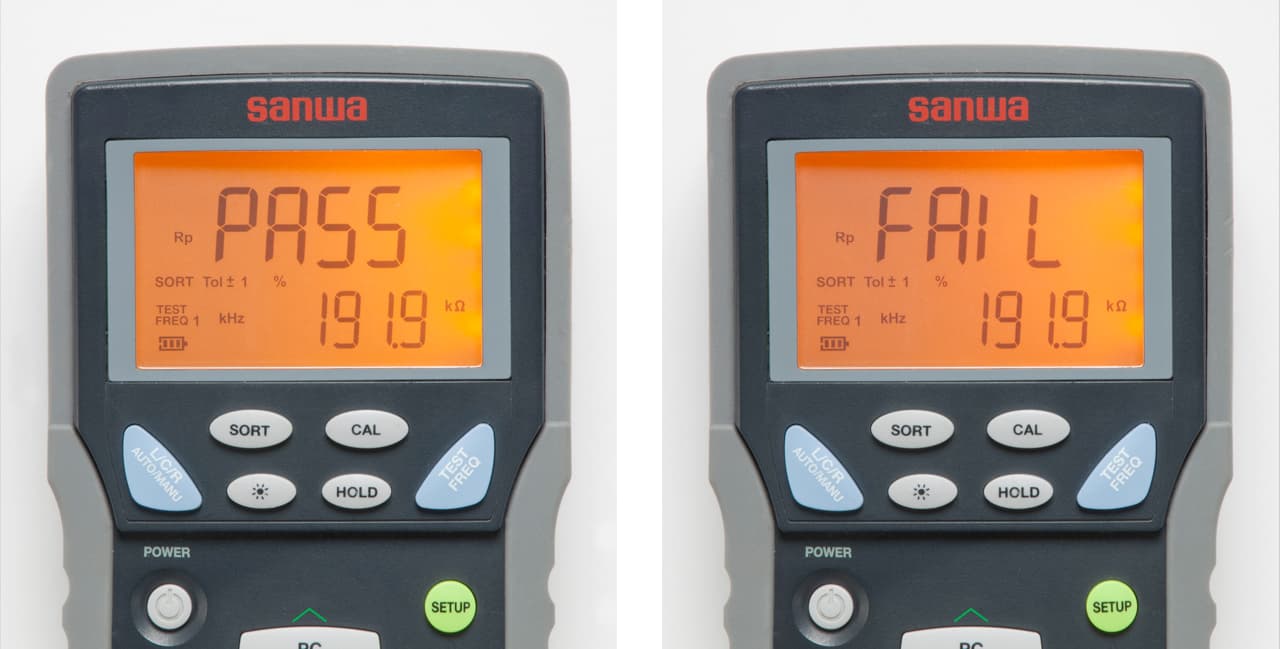

 Device Sorting function (PASS / FAIL result) This meter can sort device values into PASS/FAIL at arbitrary threshold. LCR-USB, dedicated USB optical communication unit for LCR (separately available accessory), and the dedicated software allow you to record the test results in your PC. |

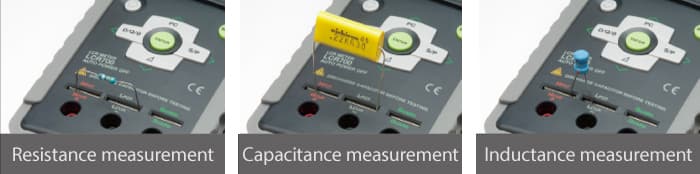

 Auto LCR mode This meter can automatically select one of the following functions, resistance/capacitance/inductance measurement, even if the user doesn't recognize what a device is. |
Functions:
 |
Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes. |
 |
Auto Power Off Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function. |
 |
Backlight Allows indicator reading in a dark place. |
 |
USB Connection Data can be output by connecting to the USB port of a PC. |
 |
Relative Value A certain measured value is assumed as 0 and measured values after that are expressed by positive or negative values relative the value fixed as 0. |
Package Content:
- 1x Digital LCR Meter
- 1x Clip Lead (CL-700a)
- 1x Holster (H-701)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measurement Frequencies | 100 / 120 / 1k /10k / 100kHz |
|---|---|
| Sampling Rate | 1.2 times / second (LCR mode) / 0.5 times /second (DCR mode) |
| Power Supply | 6LF22 (Alkaline 9V) / 6F22 (Manganese 9V) / AC adapter AD-30-3 (optional) |
| Battery Life | Approx. 40 hours 6LF22 (alkaline 9V) / Approx. 18 hours 6F22 (manganese 9V) / (Auto LCR mode, 1 kHz) |
| Safety Standards | IEC61326-1, EN50581 |
| Dimensions (H x W x D) | 184 x 87 x 45 mm |
