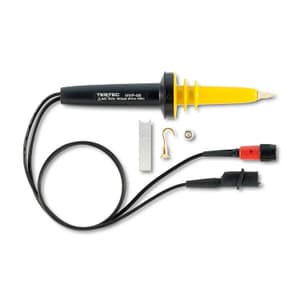

Testec 16kV High Voltage Probe, TT-HVP 08
Roll over the image to zoom in
Key Features
- Product Type: Probes & Accessories
- Max. Input Voltage: 8kV (DC), 6kVrms (AC), 16kV (PEAK)
- Bandwidth: 40MHz (-3dB)
- Attenuation Ratio: 1:1000
- Input Impedance: 100M Ohm, 3pF
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹51,010 (Incl. of all taxes)
₹43,229 + ₹7,781 GST (18%)
7 Business Days
1
–
Download Product LeafletNot available
Download Testec CatalogueNot available
Download Testec CatalogueNot available
Highlights
The Testec High Voltage Divider Probe is an accessory to be used with analog or digital oscilloscopes having input resistance of 1 MΩ (± 1 %) and nominal input capacitance between 15 and 30pF. The 1000:1 divider extends the voltage measurement capability to 8 kV DC or 6 kV rms AC (16kV peak).
Accuracy:
- DC Volts to 5kV: ±2%
- DC Volts 5kV to 8kV: ±3%
- AC Volts: ±3% (1 kHz / 1 kV)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Max. Input Voltage | 8kV (DC), 6kVrms (AC), 16kV (PEAK) |
|---|---|
| Bandwidth | 40MHz (-3dB) |
| Attenuation Ratio | 1:1000 |
| Input Impedance | 100M Ohm, 3pF |
| Rise Time | <9ns |
| Cable Length | 2m |
| Compensation Range | 10 to 30pF |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 to +70°C |
| Dimensions (L x W x H) | 220 x 50 x 50 mm |
| Order Number | 15008 |
