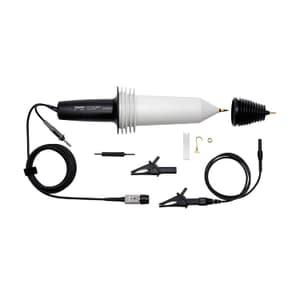

Testec 50 MHz High-Frequency High Voltage Probe, TT-HVP 2739
Roll over the image to zoom in
Key Features
- Product Type: Probes & Accessories
- Weight: 460 g
- Bandwidth: 50MHz (-3db)
- Division Ratio: 1000:1
- Input Resistance: 900MOhm
- Input Capacitance: 2.0 pF
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,98,806 (Incl. of all taxes)
₹1,68,480 + ₹30,326 GST (18%)
7 Business Days
1
–
Download Product LeafletNot available
Download Testec CatalogueNot available
Download Testec CatalogueNot available
Highlights
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Bandwidth | 50MHz (-3db) |
|---|---|
| Division Ratio | 1000:1 |
| Input Resistance | 900MOhm |
| Input Capacitance | 2.0 pF |
| Max. DC+AC Peak | 39kV |
| Max. AC RMS | 27kV |
| Max. Loading Current | 45μA |
| Rise Time | 7nS |
| Signal / Noise | >60dB @ 1kHz; >50dB @ 1MHz |
| DCV Accuracy | <3% (0 ~ 35kV) |
| ACV Accuracy | <6% @ 1kHz |
| Temp. Coefficient | <200ppm/°C |
| Compensation Range | 10pF ~ 35pF |
| Safety | IEC61010-031:2015 |
| Cable Length | 2m ± 0.2m |
| Operation Temperature | -10 ~ 55°C |
| Humidity | 85%RH or less (@35°C) |
| Storage Temperature | -20 ~ 70°C |
| Handel & Body Color | Black / Grey |
| Dimensions (L x W x H) | 320 x 80 x 80 mm |
| Order Number | 15014 |
