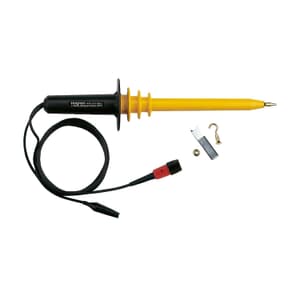

Testec 20kV High Voltage Probe, TT-HVP 15B
Roll over the image to zoom in
Key Features
- Product Type: Probes & Accessories
- Max. Input Voltage: 10kV (DC), 7kVrms (AC), 20kV (PEAK)
- Bandwidth: 40MHz (±3dB)
- Attenuation Ratio: x1000
- Input Impedance: 100M Ohm, 3pF
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹73,941 (Incl. of all taxes)
₹62,662 + ₹11,279 GST (18%)
7 Business Days
1
–
Download Product LeafletNot available
Download Testec CatalogueNot available
Download Testec CatalogueNot available
Highlights
The Testec High Voltage Divider Probe is an accessory to be used with analog or digital oscilloscopes having input resistance of 1 M? (±1%) and nominal input capacitance between 15 and 30 pF.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Max. Input Voltage | 10kV (DC), 7kVrms (AC), 20kV (PEAK) |
|---|---|
| Bandwidth | 40MHz (±3dB) |
| Attenuation Ratio | x1000 |
| Input Impedance | 100M Ohm, 3pF |
| Rise Time | <9ns |
| Cable Length | 2m |
| Compensation Range | 15 to 30pF |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 to +70°C |
| Temperature Coefficient | Less than 200ppm/°C |
| Accuracy | ±6% (DC Volts) |
| Altitude | Up to 4600 Meters (15.000 ft) |
| Humidity | Up to 80% relative humidity at +40°C |
| Dimensions (L x W x H) | 350 x 75 x 75 mm |
| Order Number | 15010 |
