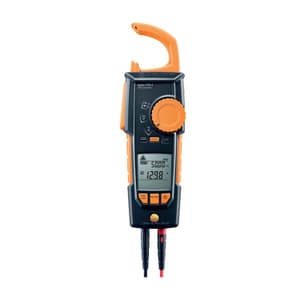

Testo 4000 Counts / 400A AC/DC TRMS Clamp Meter, Testo 770-1
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 378 g
- Operating Humidity: 0 to 80 %RH
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹16,750 (Incl. of all taxes)
₹14,195 + ₹2,555 GST (18%)
MRP was MRP ₹16,700
Save 15%
3 Business Days
1
90303310
Download Testo CatalogueNot available
Highlights

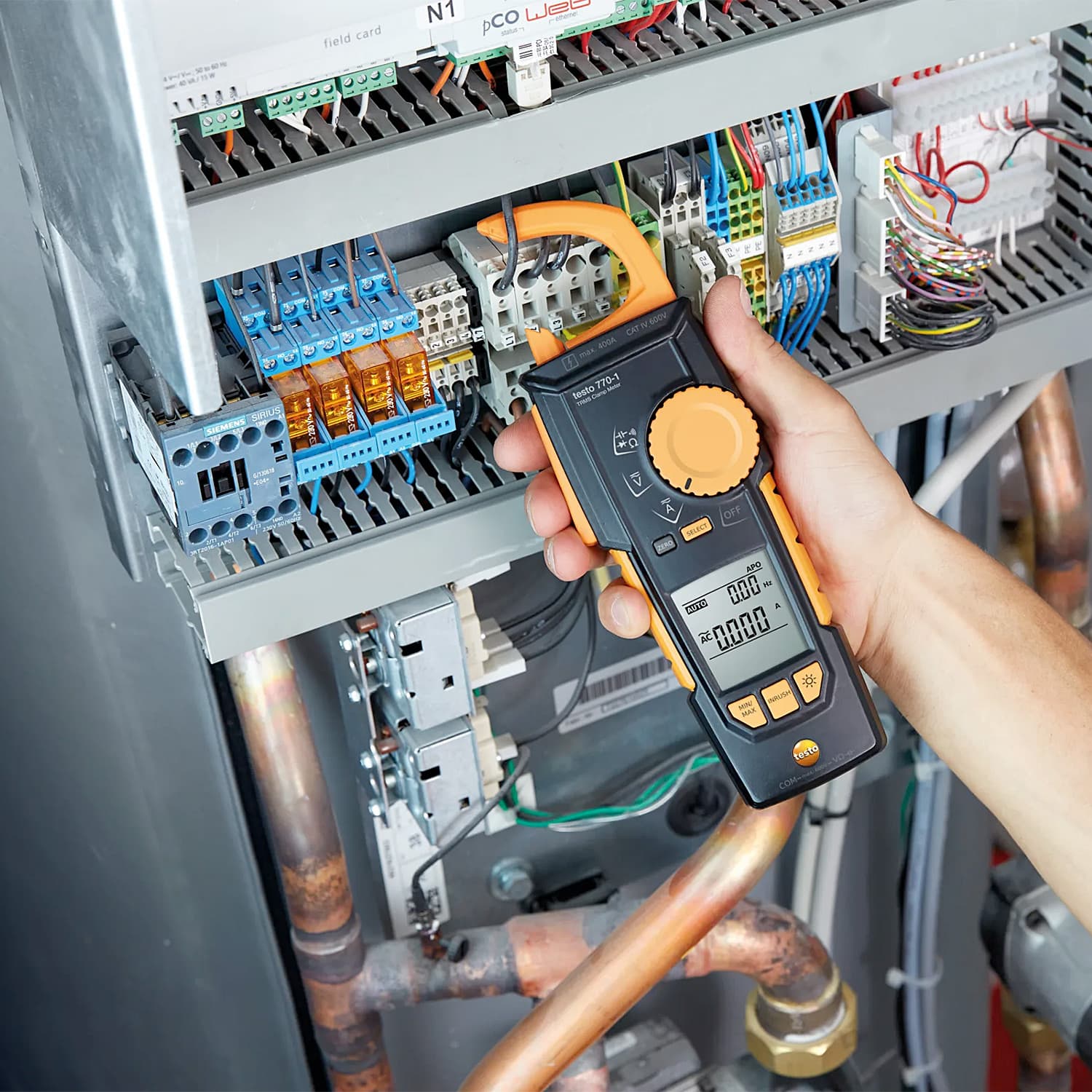

This clamp meter means you can cope in any application environment, no matter how tight. The movable pincer arm can be fully retracted into the instrument, so that you can for instance grab tightly packed cables in switching cabinets as if you were using a hook. You have never been able to measure as conveniently as this in tight spots. The operation of the testo 770-1 clamp meter is also easier and more reliable than ever before. It automatically detects and selects AC/DC and other electrical parameters, such as resistance, continuity, diode and capacitance. In addition, you can also use it to measure the starting current. And the two-line display presents your readings clearly and distinctly.
Features:
- Fully retractable pincer arm for maximum flexibility
- Auto AC/DC
- Large two-line display
- Measures the common electrical parameters
- Instrument Measurement Functions: Diode test, Continuity testing, Display ligthing, Hold, MinMax, True RMS, Inrush current measurement, Autom. measurement parameter detection.
Technical Data:
| Measuring Range | Resolution | Accuracy | |
| DC Voltage | 1.0mV to 600.0V | max. 0.1A | ± (0.8% of mv + 3 Digits) |
| AC Voltage | 1mV to 600V | max. 1mV | ± (1.0% of mv + 3 Digits) |
| DC Current | 0.1 to 400A | max. 0.1A | ± (2.0% of mv + 5 Digits) |
| AC Current | 0.1 to 400A | max. 0.1A | ± (2.0% of mv + 5 Digits) |
| Resistrance | 0.1 Ohm to 40.00 MOhm | max. 0.1Ohm | ± (1.5% of mv + 3 Digits) |
| Capacitance | 0.01nF to 100.0μF | max. 0.01nF | max. ± (1.5% of mv + 5 Digits) |
What's Included In This Package:
- TRMS clamp meter,
- 3 AAA micro battery,

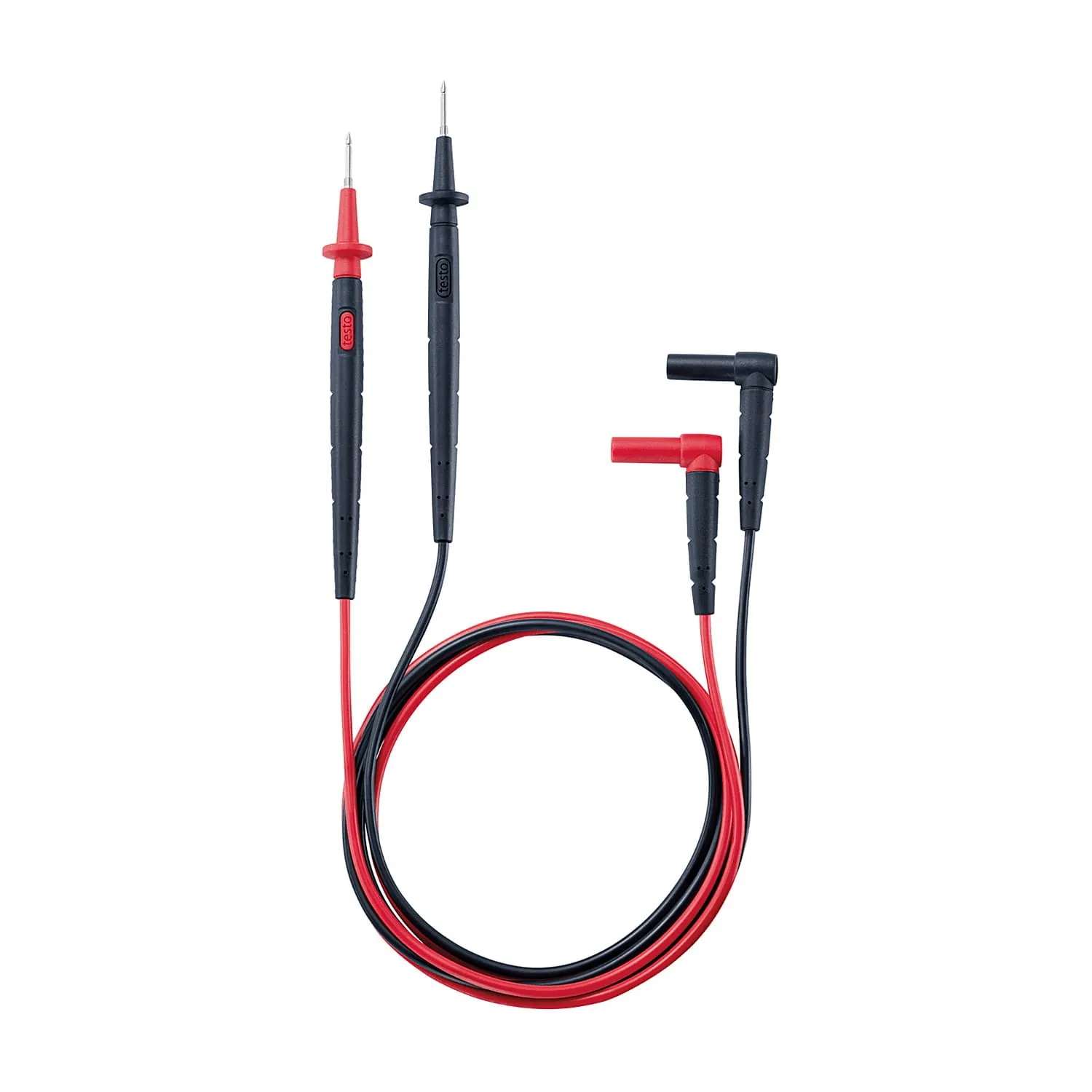

- 1 set of measuring cables (0590 0010)
- Instruction manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Operating Humidity | 0 to 80 %RH |
|---|---|
| Operating Temperature | -10 to +50°C |
| Storage Temperature | -15 to +60°C |
| Internal Resistance | 11 MOhm (AC / DC) |
| Standards | EN 61326-1; EN 61010-2-032; EN 61140 |
| Power Supply | 3 AAA Micro Batteries |
| Display Size | 2 lines |
| Display Type | LCD |

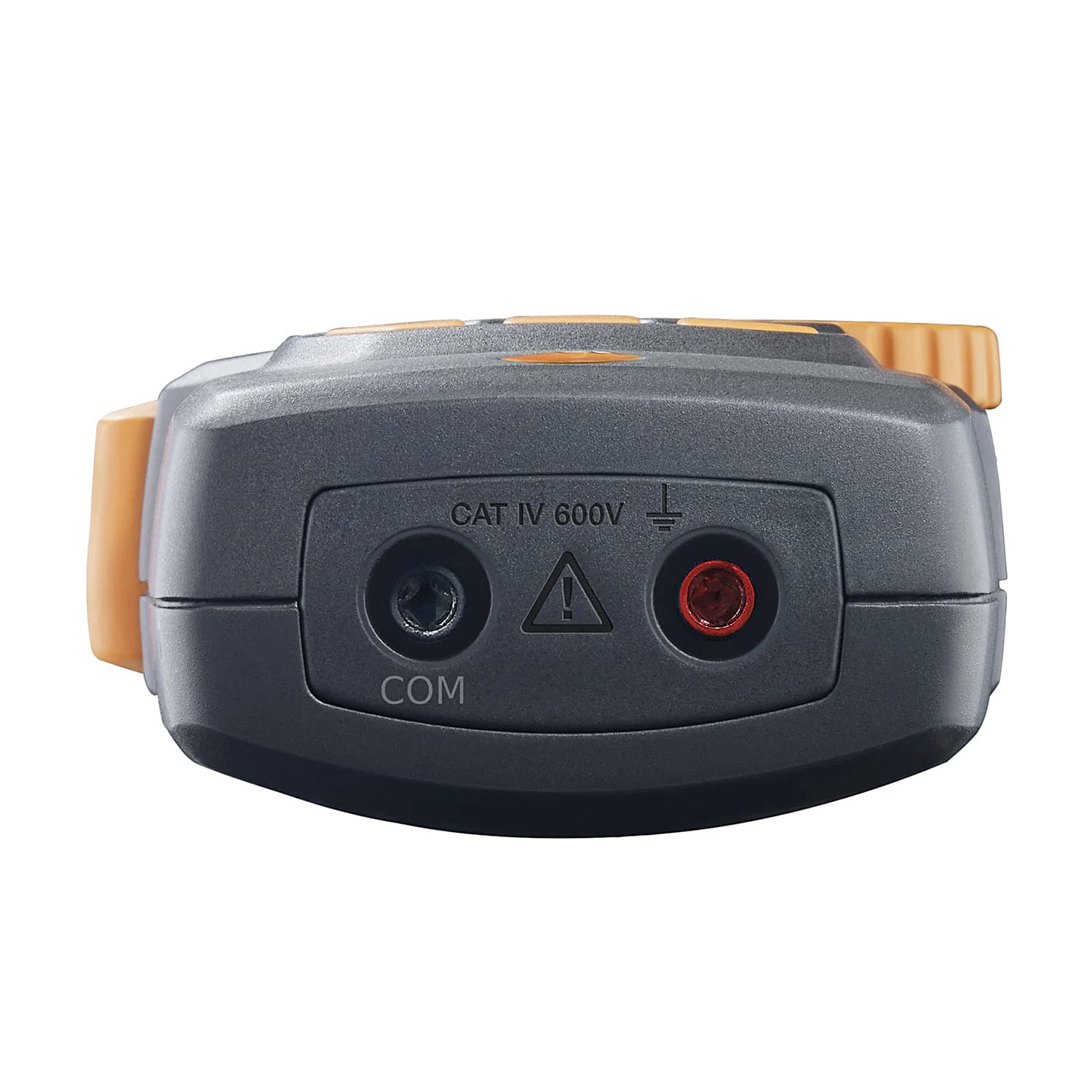

| Interface | 2 Measuring Jacks |
| Overvoltage Category | CAT IV 600V |
| Authorizations | CSA; CE |
| Dimensions (mm) | 249 x 96 x 44 mm |
| Part Number | 0590 7701 |
