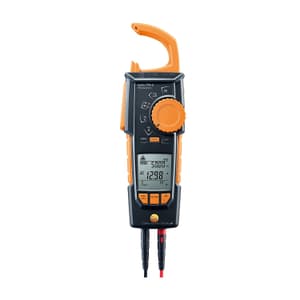

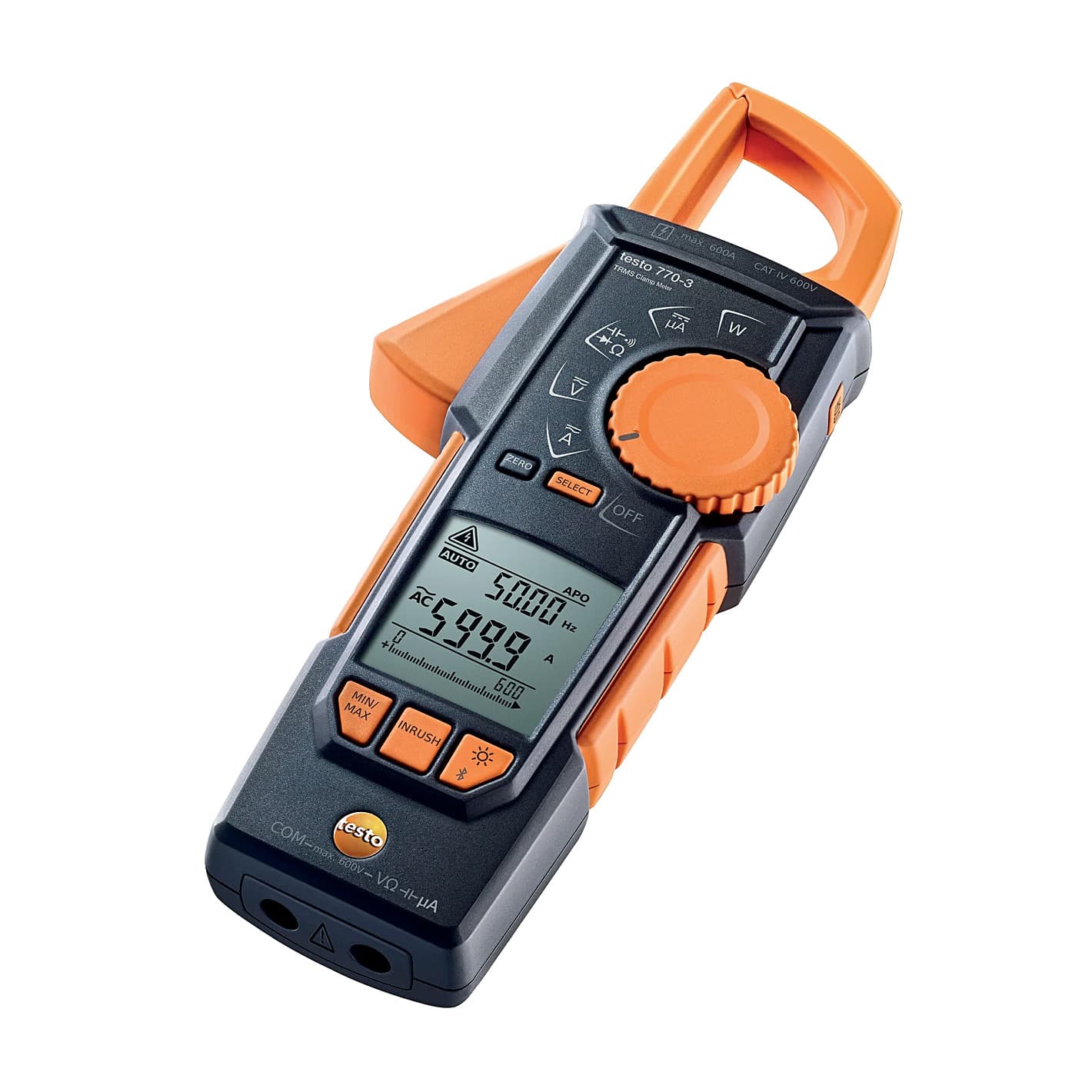

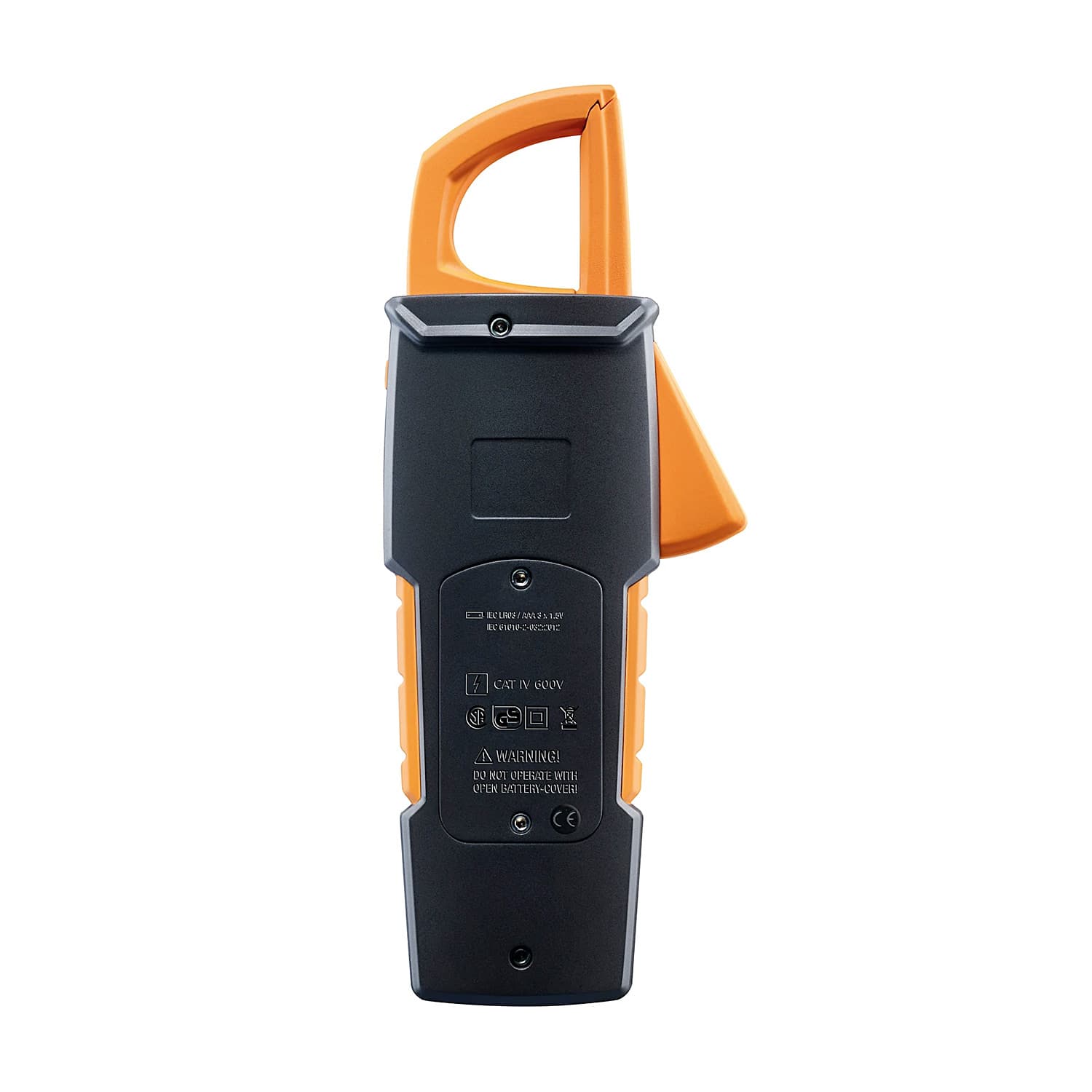

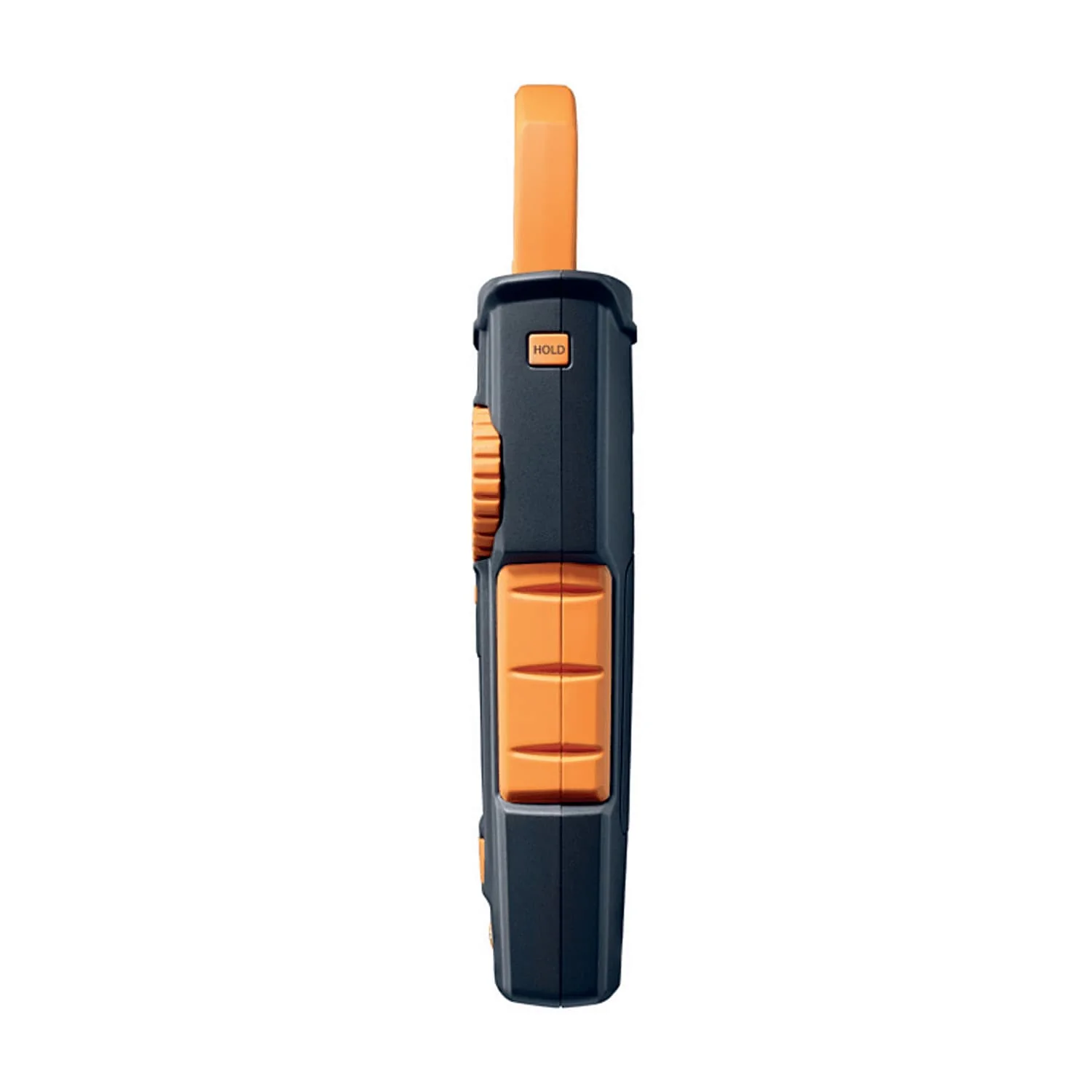

Testo 6000 Counts / 600A AC/DC TRMS Clamp Meter with Bluetooth, Testo 770-3
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 378 g
- Operating Humidity: 0 to 80.0% RH
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹26,941 (Incl. of all taxes)
₹22,831 + ₹4,110 GST (18%)
MRP was MRP ₹26,860
Save 15%
3 Business Days
1
90303310
Download Testo CatalogueNot available
Highlights
The testo 770-3 clamp meter is the ideal clamp amperemeter for demanding measuring tasks in tight application environments. The movable pincer arm can be fully retracted into the instrument. This enables the instrument to grab tightly packed cables in a particularly accurate way. In addition, more specialized applications can be handled using the clamp meter, such as starting current, power and µA measurements. The optionally available temperature adapter for thermocouple probes can be used to measure electrical parameters as well as temperatures (compatible type K thermocouple probe can be ordered separately). The clamp amperemeter automatically detects and selects AC/DC and other parameters, such as resistance, continuity, diode and capacitance,. This makes operation easier and more reliable than ever before. Your readings are clearly and distinctly presented on the two-line display. In addition to this, the testo 770-3 offers a performance measurement function and can be connected via Bluetooth to the testo Smart App. In the App, the measurement curve can be displayed as a graph on your smartphone/tablet and directly documented in the report.
Features:
- Easy to operate thanks to the fully retractable pincer arm
- Auto AC/DC and large two-line display
- Improved TRMS method
- Bluetooth connection to your smartphone (with the testo Smart App)
- Instrument Measurement Functions: Diode test, Continuity testing, Display ligthing, Hold, MinMax, Power Measurement, Temperature measurement with adapter, True RMS, Inrush current measurement, Bluetooth, μA current measuring range & Autom. measurement parameter detection.
Technical Data:
| Measuring Range | Resolution | Accuracy | |
| Temperature - TC Type K (NiCr-Ni) | -20 to +500°C | ±1°C (0 to +100°C) | 0.2°C |
| DC Voltage | 1.0 to 600.0V | max. 1 mV | ± (0.8 % of mv + 3 Digit) |
| AC Voltage | 1.0mV to 600.0V | max. 1 mV | ± (1 % of mv + 3 Digit) |
| DC Current |
|
|
|
| AC Current |
|
||
| Resistance | 0.01 to 60.0 MOhm | max. 0.01 Ohm | ± (1.5% of mv + 3 Digit) |
| Capacitance | 2nF to 60.00mF | max. 0.01nF | ± (1.5% of mv + 5 Digit) |
| Frequency | 0.01 Hz to 9999 kHz | max. 0.1 Hz | ± (1% of mv + 1 Digit) |
| Active Power | 0.1 W to 600 kW | 0.1 W | ± (5 % of mv + 5 Digit) |
| Reactive Power | 0.1 to 600.0 kvar | 0.1 var | ± (10 % of mv + 5 Digit) |
| Apparent Power | 0.1 VA to 600.0 kVA | 0.1 VA | ± 1 Digit |
| Direct current DC Voltage | 0.1 W to 600.0 kW | max. 0.1 W | ± 1 Digit |
| Power Factor | -1.00 to +1.00 | 0.01 | ± (10 % of mv + 5 Digit) |
What's Included In This Package:
- 1x TRMS clamp meter
- 3x AAA batteries,

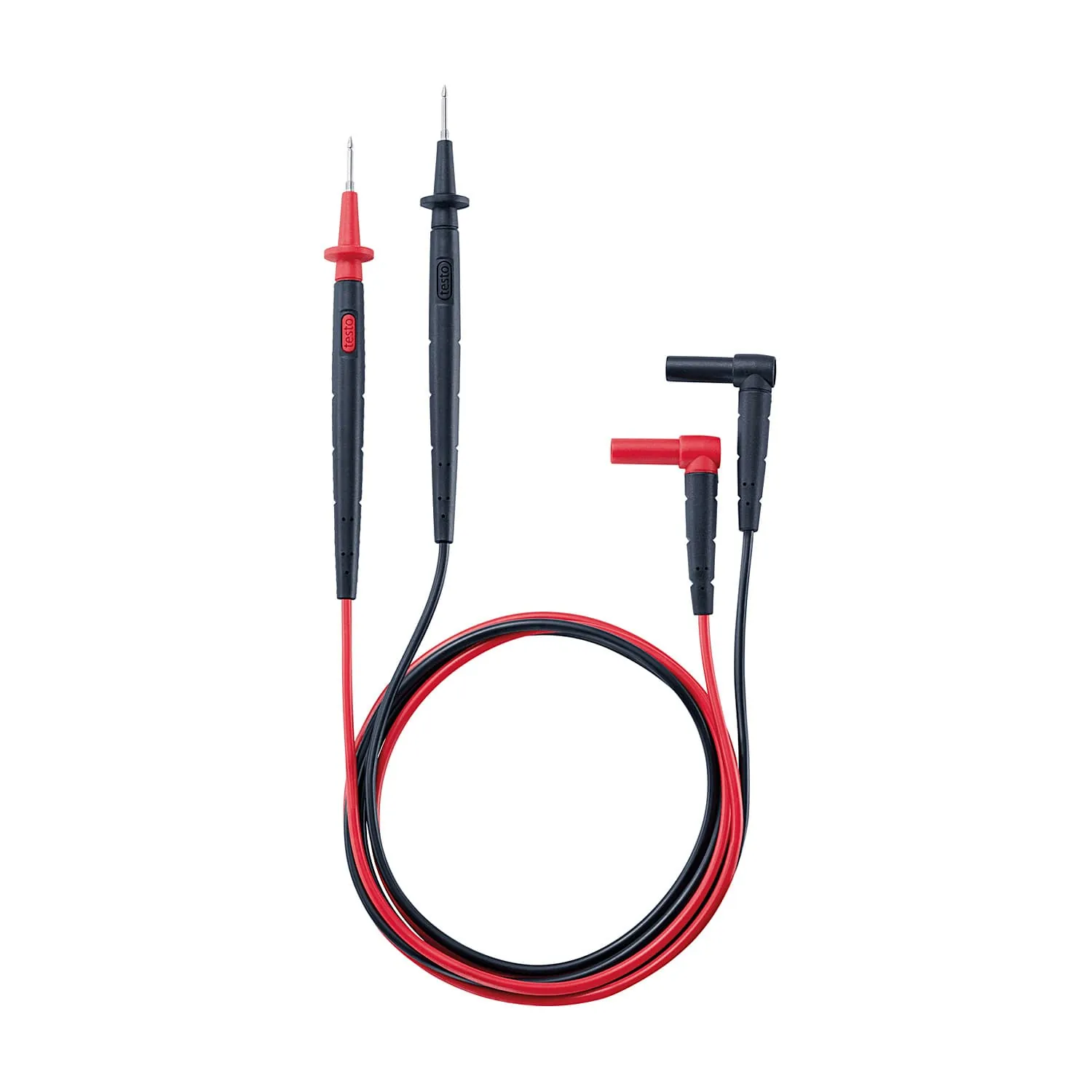

- 1 Set of measuring cables (0590 0010),
- Instruction manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Operating Humidity | 0 to 80.0% RH |
|---|---|
| Operating Temperature | -10 to +50°C |
| Storage Temperature | -15 to +60°C |
| Internal Resistance | 11 MOhm (AC / DC) |
| Standards | EN 61326-1; EN 61010-2-032; EN 61140 |
| Power Supply | 3 AAA Micro Batteries |
| Display Size | 2 lines |
| Display Type | LCD |

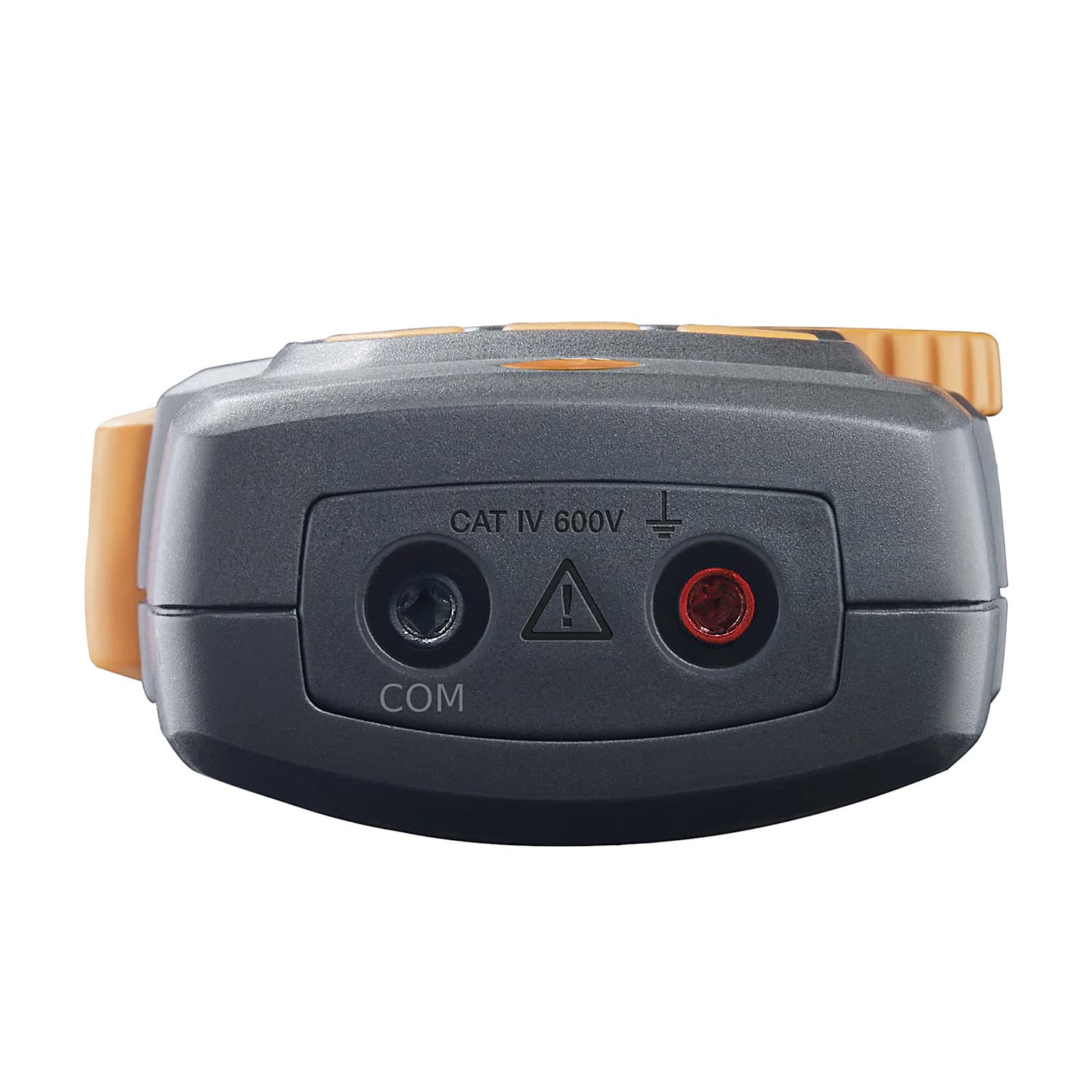

| Interface | 2 Measuring Jacks |
| Overvoltage Category | CAT IV 600V / CAT III 1000V |
| Authorizations | CSA; CE |
| System Requirements | Requires iOS 11.0 or Newer / Android 6.0 or Newer / Mobile End Device With Bluetooth 4.0 |
| Connectable Probes | 1 x Temperature Probe (Adapter Required for Type K Thermocouples) |
| Dimensions (mm) | 249 x 96 x 43 mm |
| Part Number | 0590 7703 |
