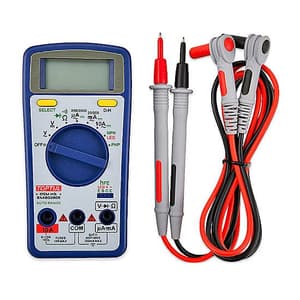

Toptul Digital Multimeter, EAAB0260E
Roll over the image to zoom in
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,545 (Incl. of all taxes)
₹4,699 + ₹846 GST (18%)
MRP was MRP ₹5,340
Save 12%
3 Business Days
1
9030
Download Product LeafletNot available
Download Toptul CatalogueNot available
Download Toptul CatalogueNot available
Highlights
TOPTUL The Mark of Professional Tools's highly trained professional workforce and dedicated engineers are committed to meet customer's satisfaction. Our Digital Multimeter is widely appreciated by the customers due to their longer functional life, reasonable price, and less maintenance. We have well-maintained quality management comprising a team of experienced professionals that keeps an eye on Digital Multimeter to ensure durability.
Features & Benefits:
- Digital multimeter with basic measuring functions
- Test lead set with test tip (red/black)
- Central dial switch
- Large LCD with 3-1/2 digit display 2000 counts
- Low battery indicator and auto shut off (after 15 minutes)
- Additional Features: Data hold, auto range, auto power off selection, auto power off cancelation
- AC and DC voltage measurement
- AC and DC current measurement
- Resistance measurement
- Diode test
- Continuity test with buzzer
- Transistor test (NPN & PNP)
- LED test
Specifications:
| AC Voltage | 2V / 20V / 200V / 600V |
| DC Voltage | 200mV / 2V / 20V / 200V / 600V |
| Resistance | 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ |
| AC / DC Current | 200μA / 2000µA / 20mA / 200mA / 2A / 10A |
| Diode | 1V |
| Continuity Check | 200Ω |
| Transistor (NPN/PNP) | 2000 hFE |
| LED Test | Yes |
| Operating Environment | 0 ~ 50°C (32 ~ 122°F) at < 80% R.H. (non-condensing) |
| Storage Environment | -10 ~ 60°C (14 ~ 140°F) at < 70% R.H. (non-condensing) |
| Power Supply | Battery 1.5V AAA x 2 pcs (included) |
| Fuse Protection | 0.5A / 600V Ø5xL20mm, 10A / 600V Ø6.35xL32mm |
| Testing Standard | IEC 61010-1 / IEC 61010-2-030 / IEC 61010-2-033 |
| Measurement Category | CAT II 600V / CAT III 300V |
| Pollution Degree | 2 |
| Dimension | 138mm (L) x 70mm (W) x 32mm (H) |
| Weight | Approx. 140g |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power Supply | 1.5 V AAA |
|---|---|
| Led Test | Yes |
| AC Voltage (V) | 2V / 20V / 200V / 600V |
| DC Voltage (V) | 200mV / 2V / 20V / 200V / 600V |
| AC Current (A) | 200μA / 2000μA / 20mA / 200mA / 2A / 10A |
| DC Current (A) | 200μA / 2000μA / 20mA / 200mA / 2A / 10A |
| Testing Standard | IEC 61010-1 / IEC 61010-2-030 / IEC 61010-2-033 |
