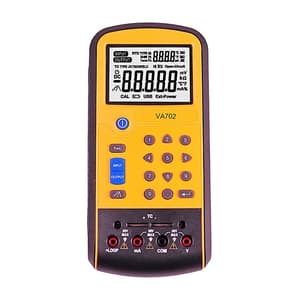

V&A Instrument -10 ~ 100mV Volt / mA Thermocouple Loop Process Calibrator, VA702

Name: V&A Instrument -10 ~ 100mV Volt / mA Thermocouple Loop Process Calibrator, VA702
Brand: V&A Instrument
SKU: ME.EL.PR.00121
Price: 18054.00 INR
Availability: InStock

Shop all V&A Instrument

SKU: ME.EL.PR.00121

Model: VA702

Roll over the image to zoom in

V&A Instrument

Visit V&A Instrument Store

Key Features

Product Type: Process Calibrators
Weight: 460 g
Storage Temperature: -40°C ~ 60°C
Operating Temperature: -10°C ~ 50°C

See all product information

ToolBuy Benefits

Secure Payments
Order Tracking (opens in a new tab)

₹18,054 (Incl. of all taxes)

₹15,300 + ₹2,754 GST (18%)

MRP was MRP ₹18,000

Save 15%

Dispatch: 7 Business Days

Items in Pack: 1

HSN Code: –

Download Product LeafletNot available

Download V&A Instrument CatalogueNot available

Highlights

Volt/mA/TC Calibrator is a source and measurement tool. This Calibrator is used to measure or output 0 to 24 mA DC current loop, and 0 to 20 V DC voltage, and Thermocouple measure or output temperatue (determined for model). But the calibrator cannot be used to measurement and source simultaneously.

Features:

Maximum voltage applied between any jack and earth ground or between any tow jack: 30V
Temperature coefficient: ±0.01% of range per °C for the temperature range -10°C to 18°C and 28°C to 55°C
Relative humidity: 95% up to 30°C, 75% up to 40°C, 45% up to 50°C, 35% up to 55°C

Technical Data:

		Range	Resolution	Accuracy
Input / Output Voltage	20.00V	0 ~ 20.00V	10mV	0.1%+5
100.00mV	-10 ~ 100.00mV	10µV
Input / Output Current	24.00mA	0 ~ 24.00mA	10µA	0.1%+3
Thermocouple	K(CA)	-200.0°C ~ +1372.0°C	0.1°C	±0.7°C
J(IC)	-200.0? ~ +1200.0?
E(CRC)	-200.0°C ~ +1000.0°C
T(CC)	-200.0°C ~ +400.0°C
N	-250.0°C ~ +1300.0°C	±0.9°C
S(PR10)	-20°C ~ +1750°C	1°C	±2°C
R(PR13)
B(PR30)	+600°C ~ +1800°C

Maintenance:

Cleaning	Periodically wipe the case with a damp cloth and detergent; do not use abrasives or solvents.
Calibration	Calibrate your calibrator once a year to ensure that it performs according to its specifications.
Replacing the Battery	Please change the battery when the LCD indicates Turn off the power of the Calibrator and take off the test lead, screw off the battery cover, then take off it and instead the fresh battery. Then close the battery cover. Replacing a Fuse
Warning	To avoid personal injury or damage to the calibrator, use only a 0.125A 250V fast fuse. Fuse 1 is probably blown if: In the V output mode, with the test leads removed from the calibrator, the Output unstable state indication34 ,it will be always displaying on the screen. Fuse 2 is probably blown if: In the mA input mode, the calibrator always reads 0.000, even with a signal applied.

Package Content:

Calibrator
Test lead
alligator clip
User Manual
Mini-USB cable
CD disk
K-Type thermocouple sensor (for temperature model)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for V&A Instrument -10 ~ 100mV Volt / mA Thermocouple Loop Process Calibrator, VA702
Storage Temperature	-40°C ~ 60°C
Operating Temperature	-10°C ~ 50°C
Operating Altitude	2000 Meters (max.)
Power Requirements	6 x AAA Batteries
Dimensions (L x W x H)	204 × 99 × 46 mm
