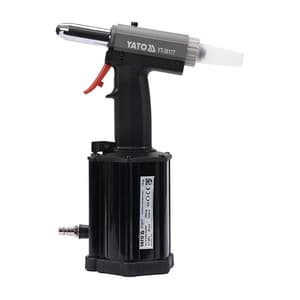

Yato 4 - 6.4 mm Pneumatic Riveting Tool, YT-36177
Roll over the image to zoom in
Key Features
- Product Type: Air Hydraulic Riveter
- Weight: 1.6 kg
- Diameter (mm): 4, 4.8, 5, 5.4, 6 & 6.4 mm
- Acoustic Pressure: 87.2 ± 2.3 dB(A)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,142 (Incl. of all taxes)
₹9,442 + ₹1,700 GST (18%)
MRP was MRP ₹18,883
Save 50%
3 Business Days
1
84671900
Download Product LeafletNot available
Download Yato CatalogueNot available
Download Yato CatalogueNot available
Highlights
Designed for permanently joining metal parts with riveters in steel, stainless steel and aluminum.
Features:
- The weighted pressure connection allows the riveter to rotate freely
- The durable 3-jaw system ensures fast and efficient riveting
- Interchangeable endsós allow you to work with rivets of different diameters
- Low air consumption
- Ergonomic and easy-to-use design
- 3 spare jaws
- Bucket for broken mandrels
- Hanger in housing
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Diameter (mm) | 4, 4.8, 5, 5.4, 6 & 6.4 mm |
|---|---|
| Acoustic Pressure | 87.2 ± 2.3 dB(A) |
| Acoustic Power | 94.5 ± 3.0 dB(A) |
| Vibrations | 0.54 ± 0.15 m/s2 |
| Air Flow Required | 60 l/min |
| Max. Working Pressure | 0.5 MPa |
| Recommended Operating Pressure | 0.5 MPa |
| The Number of Jaws | 3 |
| Crushing Force | 12300 N |
| Maximum Stroke of the Actuator Piston | 20 mm |
| The Inner Diameter of the Air Supply Hose | 3/8 (9.5 mm)" |
| Material | Steel, Stainless Steel & Aluminum |
