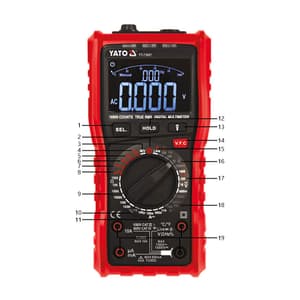

Yato True Rms Digital MultiMeter, YT-73097

Universal meter YT-73097 with TRUE RMS function, with a unique design, with automatic and manual measuring range. It enables basic and advanced measurements of electrical quantities. The large multifunctional LCD display allows, in some measurement modes, to display two values ??at once, e.g. voltage and frequency from a power socket. The housing is equipped with a red rubber holster with dedicated places for test probes, thanks to which the meter will not slip easily from your hands and minimize the risk of damage during a fall. The modern design of the plate and special software mean not only the speed, accuracy and repeatability of indications, but also an increased level of safety, which is confirmed by obtaining CAT IV certification up to 600V.

Basic Measurements

• Alternating voltage measurement: AC 0-750V, TRUE RMS + VFC
• DC voltage measurement: DC 0-1000V
• AC current measurement: AC 0-10A, TRUE RMS
• DC current measurement: DC 0-10A
• Resistance measurement: 0-99.99MΩ
• Test diody: IF 1mA, UR 3,2V
• Continuity test: 0-30Ω

Additional Measurements

• capacitor capacity measurement: 0-99.99mF
• frequency measurement: 0-9.999Mhz
• fill factor measurement: 1-99%
• temperature measurement: -20 to 1000 ° C
• non-contact detection of alternating voltage: NCV

Measurement Accuracy

An example of determining the accuracy for the measurement of AC voltage. Calculation for the measurement result: 235V

• The accuracy of the measurement of the YT-73097 meter for this range is: ± (1.0% + 5), resolution 0.1V
• calculation of measurement error formula: (measurement result x 1.0%) + 5 x resolution
• calculation: (235 x 1.0%) + 5 x 0.1 = 2.35 + 0.5 = 2.85V

The actual result, taking into account the measurement error, for the reading of 235V = 235 ± 2.85V

• result taking into account the measurement error for the DC voltage measurement indication: 12V = 12 ± 0.09V
• result taking into account the measurement error for the indication of the alternating current intensity: 8A = 8 ± 0.15A

The table with the resolution and accuracy for a given measurement can be found in the user manual.

Built-In Functions

• TRUE RMS - a meter with this function calculates the real effective value of AC voltage and current for both sinusoidal and non-sinusoidal waveforms. The device first measures the real value of the sine wave in several time intervals → then squares the measurement results → sums them up → calculates the mean → and finally the mean result takes the square root. The measurement result is a real effective value of the AC voltage / current, even for a deformed sinusoid or a square wave.
• NCV - non-contact detection of alternating voltage with the induction method. The meter detects the presence of voltage in an insulated conductor using the NCV sensor on the front of the device
• LIVE - phase presence test using one of the measuring probes. It allows you to check which of the holes in the electrical socket is in phase. Insert the measuring probe into the hole, if the phase is detected, the display will show LIVE
• VFC - this function is used when measuring the output voltage for an electric motor controller, which uses the frequency and voltage variation to control the motor speed (VFD controllers). After activating the function, the meter filters high-frequency disturbances, e.g. from the PWM signal, and leaves only the low frequency. As a result, the filter enables an accurate measurement of the RMS voltage flowing from the controller to the motor.
• AUTO - automatic adjustment of the measuring range. If you are measuring unknown values with a handwheel manual ranging, take the measurements sequentially from the largest range up to the range giving the most accurate result - otherwise you risk damaging the device. However, in the case of a multimeter with the AUTO function, it is enough to take one measurement and the meter will automatically find the optimal range. The YT-73097 meter is a unique design, because in addition to the automatic measurement modes, it offers measurements of basic electrical quantities also in the ranges set manually with the use of a knob, thus combining the advantages of both solutions. If we know the approximate value of the measurement and set the appropriate range, we will gain in the speed of indications
• SEL - change of measurement mode, e.g. from AC to DC voltage measurement
• HOLD - saving the currently measured value on the display
• TORCH - On the front of the device there is a LED to illuminate the workplace, which can be turned on and off with this button.

Additional Information

• LCD display, the maximum displayed result: 9999
• Acoustic and light signal in the circuit continuity test for resistance below 30Ω
• Automatic mode for diode and circuit continuity tests, in this setting the meter will automatically detect whether it is a diode or a circuit with low resistance
• Diode and continuity tests can be turned on separately using the SEL button, in the continuity test setting, the buzzer will sound immediately
• 15 cm long test probes included
• Cable length with probes: 110 cm
• Wire diameter with insulation: 3.5 mm
• Construction with overload and protection protections for both current and voltage measurements
• Fuse burnout alarm
• Alarm when inserting the test probe into an incorrect socket, e.g. if, after turning the meter on, you set it to measure voltage, and insert the measuring probe into the current measurement socket, the display will show the word LEAD
• ABS housing
• Automatic shutdown of the meter after 10 minutes of inactivity
• Low battery indicator
• Power supply: two 1.5V (AA) batteries
