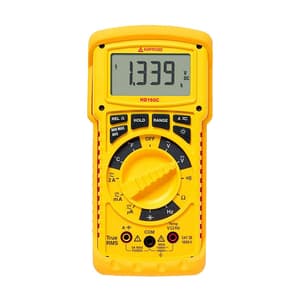

Amprobe 4 Digit / 1500V Heavy Duty TRMS Multimeter With Temperature, HD160C
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- AC Voltage (V): 1000 V
- DC Voltage (V): 1500 V
- AC Current (A): 2 A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹72,255 (Incl. of all taxes)
₹61,233 + ₹11,022 GST (18%)
MRP was MRP ₹90,048
Save 32%
3 Business Days
1
9030
Download Product LeafletNot available
Download Amprobe CatalogueNot available
Download Amprobe CatalogueNot available
Highlights
The Amprobe HD160C Heavy Duty Multimeter is designed for professional use in harsh environments. Its made using waterproof construction to prevent dirt, grime and moisture from entering the case and causing inaccurate readings or damaging shorts.
Built with tough, fire-retardant thermoplastic that is resistant to grease and chemical spills and with shock-mounted components that are drop resistant to at least 8 feet, the Amprobe HD160C is unusually rugged and reliable. It has an extended voltage measurement capability of 1500 V DC and 1000 V AC, unmatched by any other line of digital multimeters. The extended voltage ranges can withstand transients up to 12 kV, and it also measures temperature.
Features:
- Highest voltage capability, measuring to 1500 V DC and 1000 V AC
- Suitable for testing Solar installations
- Special sealing for environment and water resistance: IP67 rated
- Constructed with drop-resistant housing and PCB mounting
- Measures capacitance, temperature and frequency
- Superior 10,000 count resolution with bar graph
- Magne-Grip™ holster, frees both hands for work
- Digi-Glo™ bright backlight
- Display 4 digit LCD, 9999 counts, with annunciators, menu features and 41 segment bargraph
- Polarity indication automatic
- Input overload indication OL, -OL
- Auto power-down

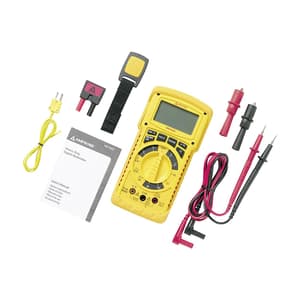

What’s Included In This Package:
- HD160C
- Test leads
- Batteries (installed)
- Magne-Grip™ holder with magnetic hanging strap
Specifications:
| Features | HD160C |
| DC Voltage | 1000.0 mV, 10.000 V, 100.00 V, 1500.0 V |
| AC Voltage | 1000.0 mV, 10.000 V, 100.00 V, 1000.0 V |
| Current | 100.00 µA, 1000.0 µA, 10.000 mA, 100.00 mA, 400.0 mA, 2.000 A |
| Resistance | 1000.0 O, 10.00 kO, 100.00 kO, 1000.0 kO, 10.000 MO, 40.00 MO |
| Diode | – |
| Continuity | Yes |
| Frequency | 100.00 Hz, 1000.0 Hz, 10.000 kHz, 100.00 kHz, 1000.0 kHz, 10.000 M Hz |
| Capacitance | 40.00 nF, 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF |
| Temperature | -4 °F → 2372 °F (-20 °C → 1300°C) |
| True-rms | Yes |
| DC Volts range: | 200 mV, 2 V, 20 V, 200 V, 1500 V |
| DC Volts resolution: | 0.1 mV |
| DC Volts accuracy: | All ranges ±(0.1 % rdg+2 dgts) |
| DC Volts input impedance: | 10 MO |
| DC Volts OL protection: | >1500 V DC/1000 V AC rms |
| DC Volts transient protection: | >12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV |
| AC Volts (45 Hz to 2 kHz) ranges: | 200 mV, 2 V, 20 V, 200 V, 1000 V |
| AC Volts (45 Hz to 2 kHz) resolution: | 0.1 mV |
| AC Volts (45 Hz to 2 kHz) accuracy: | 200 mV to 200 V (45-500 Hz) ±(0.8 % rdg+4 dgts), |
| AC Volts (45 Hz to 2 kHz) accuracy: | 200 mV to 200 V (500 Hz-2 kHz) ±(1.5 % rdg+5 dgts) |
| AC Volts (45 Hz to 2 kHz) accuracy: | 1000 V (50-60 Hz) ±(0.8 % rdg+4 dgts) |
| AC Volts (45 Hz to 2 kHz) accuracy: | 1000 V (60-500 Hz) ±(1.5 % rdg+5 dgts) |
| AC Volts (45 Hz to 2 kHz) input impedance: | 10 MO |
| AC Volts (45 Hz to 2 kHz) OL protection: | 1500 V DC/1000 V AC rms |
| AC Volts (45 Hz to 2 kHz) transient protection: | 12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV. |
| DC Current range: | 200 µA, 2 mA, 20 mA, 200 mA, 2 A |
| DC Current resolution: | 0.1 µA |
| DC Current accuracy: | 200 µA to 20 mA ±(0.5 % rdg+2 dgts) |
| DC Current accuracy: | 200 mA to 2 A ±(1.0 % rdg+2 dgts) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Safety Rating | CAT IV 1000 V |
|---|---|
| True-rms | Yes |
| AC Voltage (V) | 1000 V |
| DC Voltage (V) | 1500 V |
| AC Current (A) | 2 A |
| DC Current (A) | 2 A |
| Temperature Inputs | 1 |
| Microamps | Yes |
| Resistance | Yes |
| Capacitance | Yes |
| Frequency | Yes |
| Relative Zero | Yes |
| Continuity Beeper | Yes |
| Autoranging | Yes |
| Backlight | Yes |
| Bar Graph | Yes |
| Data Hold | Yes |
| Auto Power Off | Yes |
