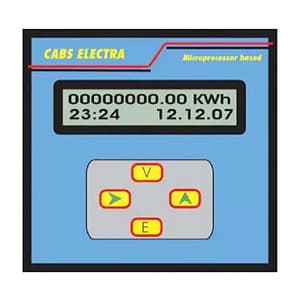

Cabs Electra Three Phase kWh Meter (Four Wire Three Element), CE-0304EML
Roll over the image to zoom in
Key Features
- Product Type: Digital Panel Meters
- Weight: 0.7 kg
- Type of Product: kWh Meter
- Range: 99999999.99 KWh
- Auxilliary supply: 110/230V +/- 10%, 50 Hz
- CT Secondary: 1 Amps or 5 Amps
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,016 (Incl. of all taxes)
₹4,251 + ₹765 GST (18%)
MRP was MRP ₹6,251
Save 32%
5 Business Days
1
90303100
Download Product LeafletNot available
Download Cabs Electra CatalogueNot available
Download Cabs Electra CatalogueNot available
Highlights
Digital KWh Meter with LCD Display for Three Phase Four wire Three Element loads.
Features:
- Microprocessor-based Three-phase and single-phase KWh meters
- Options of Run Hour or Real Time Clock Display.
- User Programmable CT/ PT Ratios to Give a Direct Reading.
- Password Protected for CT/PT ratios.
- Available for 415V(LT) and 110 V(HT) systems and for
- 1 Amp and 5 Amp CT secondary.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | kWh Meter |
|---|---|
| Range | 99999999.99 KWh |
| Size | 96 x 96 mm |
| Range of operation | 0.5 LAG – 0.5 Lead |
| Auxilliary supply | 110/230V +/- 10%, 50 Hz |
| CT Secondary | 1 Amps or 5 Amps |
| PT secondary | 110V, 63.5V or 230 V direct |
| Applications | 3 Phase 3 wire/3 phase 4 wire |
| Accuracy | 0.5% or 1% at UPF/Full load |
| Display | 16 Character x 2 line backlit LCD |
| Clock | 24 Hr mode, +/- 1 min/months |
| Operating Temperature | –70 Deg C |
| Storage Temperature Range | 20 – 85 Deg C |
| Dielectric | 2 KV for 1 Min |
| Input Impedance | 0.002 Ohms for Current Circuit, 1 Meg Ohms for Voltage Circuit |
| Dimensions | Bezel 96 mm x 96 mm, Cutout 92 mm x 92 mm, Depth 60 mm with out connectors |
