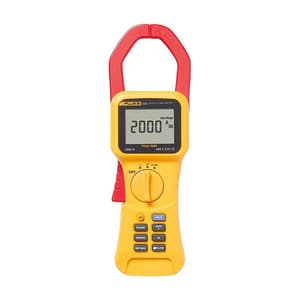

Fluke 353 2000A True-RMS AC / DC Clamp Meter
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 814 g
- Range: 40 A / 400 A / 2000 A / 1400 AC RMS
- Test leads: Rated to 1000 V
- Jaw size: 58 mm (2.28 in)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,14,531 (Incl. of all taxes)
₹97,060 + ₹17,471 GST (18%)
MRP was MRP ₹1,42,736
Save 32%
12 Business Days
1
90275090
Download Product LeafletNot available
Download Fluke CatalogueNot available
Download Fluke CatalogueNot available
Highlights

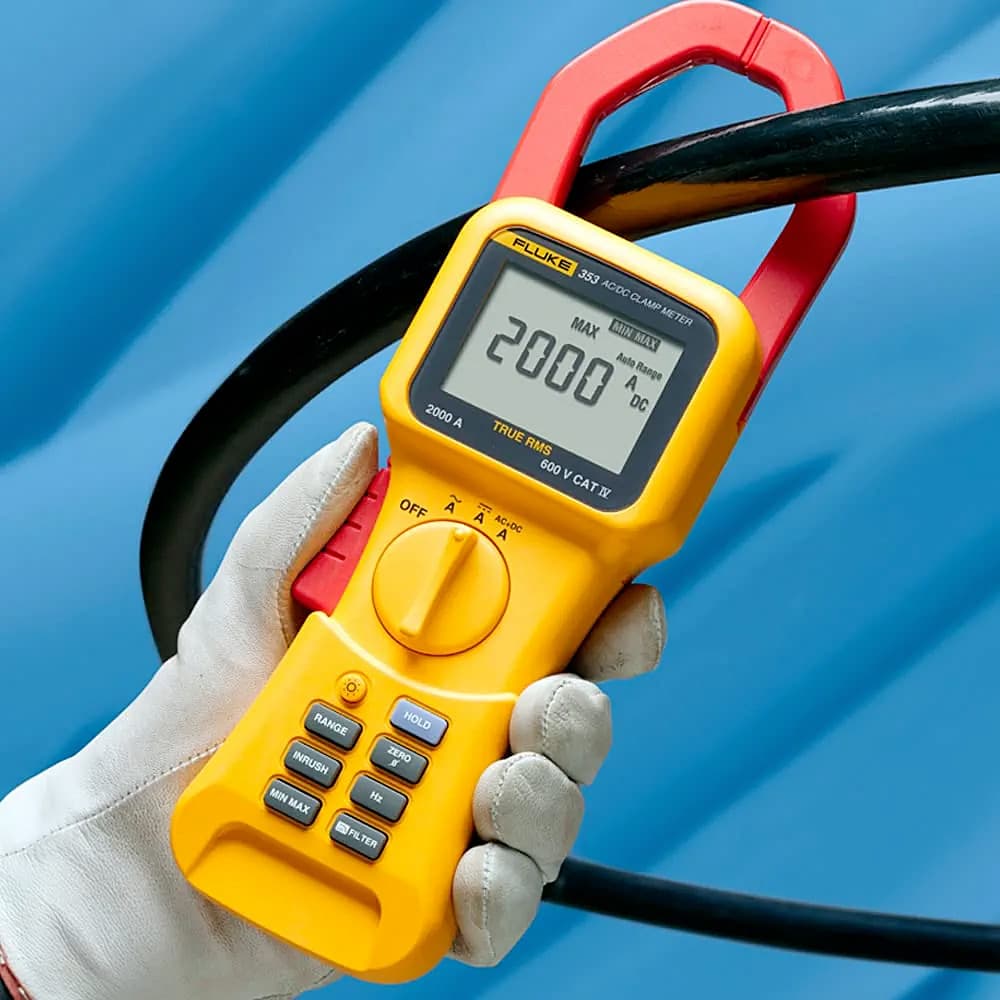

Confidently take reliable readings with the True RMS, Fluke 353 digital clamp meter; the tools of choice for high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications.
The extra rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements. Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads.
Features:
- Reliably handle a wide range of high-current applications with 2000 A AC + DC true-rms, 1400 A ac, and 2000 A DC
- The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
- CAT IV 600 V, CAT III 1000 V rating for added user protection
- In-rush current measurement captures ‘power-on’ surge current with accuracy and repeatability
- Accurately measure frequency up to 1 kHz for optimum troubleshooting
- Quickly analyze readings using the MIN, MAX, and AVG functions
- A large backlit display allows for easy visibility in low-lit areas
- Use the display hold feature to capture readings even when the display cannot be viewed
- Use the low-pass filter to smooth out noisy loads and stabilize readings.
What's Included In This Package:
- Fluke 325 True-RMS Clamp Meter
- TL75 Test Leads
- Type K Thermocouple
- Two AAA Batteries (Installed)
- Soft Case
Electrical Specifications:
| Current measurement DC and AC 10 Hz to 100 Hz | Range | 40 A / 400 A / 2000 A / 1400 AC RMS |
| Resolution | 10 mA / 100 mA / 1 A | |
| Accuracy | A: 1.5% rdg + 15 digits A: 1.5% rdg + 5 digits |
|
| Trigger level for Inrush | 0.50 A / 5.0 A / 5 A | |
| Trigger level for Hz filter OFF | 2.50 A / 2.5 A / 8 A | |
| Trigger level for Hz filter ON | 0.50 A / 2.5 A / 8 A | |
| Crest Factor (50/60 Hz) | Range | 40 A / 400 A / 2000 A / 1400 AC RMS |
| Crest Factor1 | 2 @ 33 A, 2.4 @ 27 A 2 @ 330 A, 2.4 @ 270 A 2 @ 1000 A, 2.4 @ 833 A |
|
| Current measurement AC 100.1 Hz to 1 kHz | Range | 40 A / 400 A / 2000 A; 1400 AC RMS |
| Resolution | 10 mA / 100 mA / 1 A | |
| Accuracy | 10 A: 3.5% rdg + 15 digits 10 A: 3.5% rdg + 5 digits |
|
| Trigger level for Inrush | 0.50 A / 5.0 A / 5 A | |
| Trigger level for Hz filter OFF | 2.50 A / 2.5 A / 8 A | |
| Trigger level for Hz filter ON | 0.50 A / 2.5 A / 8 A | |
| Frequency measurement | Measurement range | 5.0 Hz to 1 kHz |
| Resolution | 0.1 Hz (15 Hz to 399.9 Hz); 1 Hz (400 Hz to 1 kHz) | |
| Accuracy – 5.0 Hz to 100 Hz | 0.2% + 2 counts | |
| Accuracy – 100.1 Hz to 1 kHz | 0.5% + 5 counts | |
| Trigger level | Refer to current and voltage tables | |
| 1. Add 2% to error spec for CF > 2 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range | 40 A / 400 A / 2000 A / 1400 AC RMS |
|---|---|
| Resolution | 10 mA / 100 mA / 1 A |
| Test leads | Rated to 1000 V |
| Jaw size | 58 mm (2.28 in) |
| Operating temperature | 32°F to +122°F (0°C to +50°C) |
| Storage temperature | -4°F to 140°F (-20°C to +60°C) |
| Operating humidity | 0 to 95% (non-condensing) |
| Operating altitude | 2000 Mtr |
| Storage altitude | 10,000 Mtr |
| IP rating | 42 (indoor use only) |
| Drop test requirements | 1 Mtr |
| Temperature coefficients Current | 0.1% of reading per °C outside 22°C to 24°C |
| Temperature coefficients Voltage | 0.1% of reading per °C outside 22°C to 24°C |
| Batteries | Six 1.5 V AA NEDA 15 A or IEC LR6 |
| Battery life (with typical usage, backlight off) | 100 hours |
| Dimensions (L x W x D) | 300 x 98 x 52 mm (12 x 3.75 x 2 in) |
| Safety rating | IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III |
| EMI, RFI, EMC | FCC part 15, IEC/EN 61326-1:1997 class B IEC/EN 61326:1997 3V/m, performance criteria B, EN61325 |
