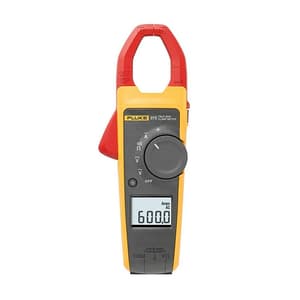

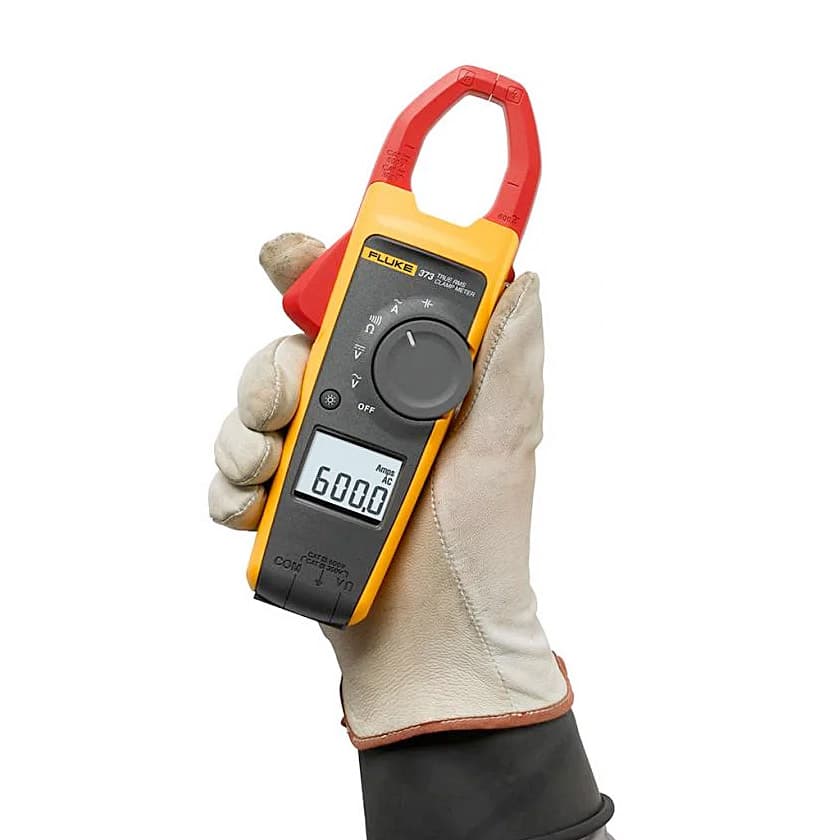

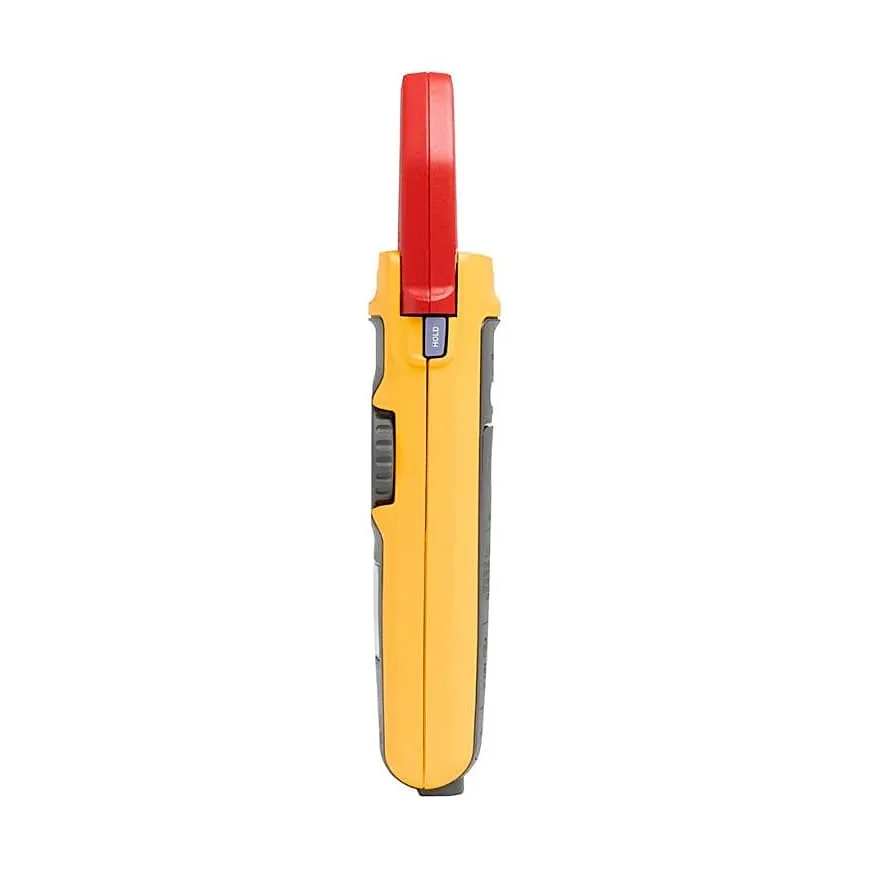

Fluke 373 600A True-RMS AC Clamp Meter
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 370 g
- AC Current Range: 600.0 A
- AC Voltage Range: 600.0 V
- Continuity Beeper: 30 Ohms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹32,572 (Incl. of all taxes)
₹27,603 + ₹4,969 GST (18%)
MRP was MRP ₹40,592
Save 32%
12 Business Days
1
90303100
Download Fluke CatalogueNot available
Highlights
Fluke 373 True-RMS AC Clamp Meter is a great choice for AC-only current measurement situations. Featuring True RMS AC voltage and current measurements you can measure AC current to 600 A and AC voltage to 600V. The 373 also measures DC voltage to 600 V and resistance to 6000 Ω.
To make it even easier to use, the large, easy-to-read backlit display provides better visibility in dimly lit conditions. And the 373 automatically sets the correct measurement range based on the voltage present when you power up, so you do not need to move the switch while taking a measurement. When you put it all together, you’ll find the Fluke 373 offers everything you need, plus a little more.
Other Useful Capabilities:
- Provides True-RMS voltage and current measurements to accurately measure non-linear signals
- Automatically selects a measurement range based on voltage present so you don’t need to change the switch positions while taking a measurement
- Presents readings on a large, easy-to-read backlit display
- Features CAT IV 300 V, CAT III 600 V safety ratings
- Comes with a soft carrying case and three-year warranty
- Runs on two AA alkaline batteries
Features:
- A top performing True-RMS current clamp for AC-only current measurements to 600 A
- Measures AC and DC voltage to 600 V
- Measures resistance to 6000 ? with continuity detection
- Offers state of the art signal processing to provide stable readings even in noisy electrical environments

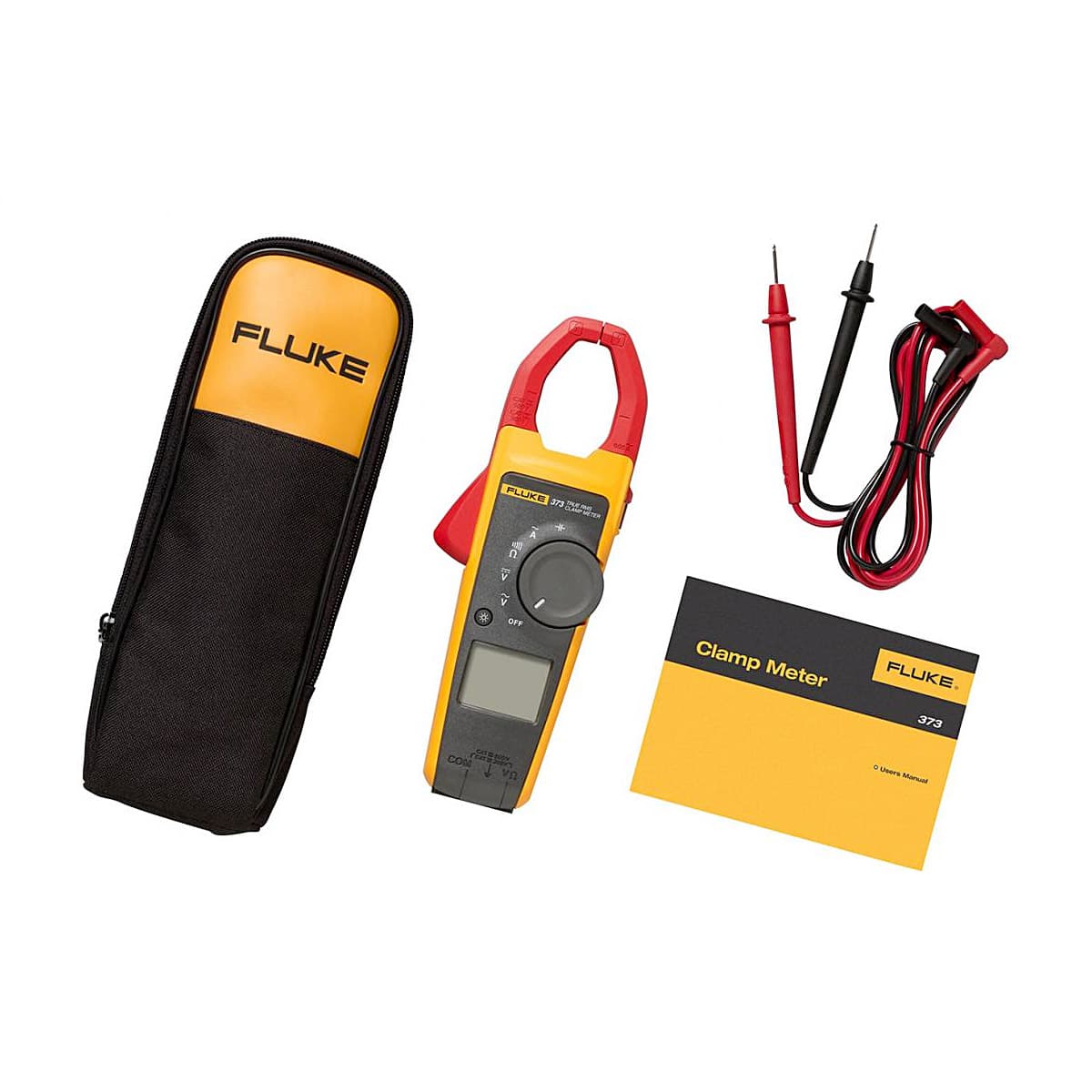

What's Included In This Package:
- 373 True-RMS AC Clamp Meter
- (1 pair) TL75 test leads
- Soft carrying case
- Five AA Alkaline Batteries (Installed)
- Quick Reference Guide
Environmental Specifications:
| Operating Temperature | -10 °C to +50 °C |
| Storage Temp | -40 °C to +60 °C |
| Operating Humidity | Non condensing (< 10 °C) ≤ 90 % RH (at 10 °C to 30 °C) ≤ 75 % RH (at 30 °C to 40 °C) ≤ 45 % RH (at 40 °C to 50 °C) (Without Condensation) |
| Operating Altitude | 3000 meters |
| Storage Altitude | 12,000 meters |
| EMI, EMC | Meets all applicable requirements in EN61326-1:2006 |
| Temperature Coefficients | Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C |
| Safety Compliance | ANSI/ISA S82.02.01:2004 CAN/CSA-C22.2 No. 61010-1-04 IEC/EN 61010-1:2001, 600V CAT III, 300V CAT IV Pollution Degree 2 EN/IEC 61010-2-32:2002 EN/IEC 61010-031:2002/A1:2008 |
| Agency Approvals | |
| Batteries | 2 AA, NEDA 15A, IEC LR6 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| AC Current Range | 600.0 A |
|---|---|
| AC Current Resolution | 0.1 A |
| AC Current Accuracy | 2 % ± 5 digits (48 – 62 Hz) |
| AC Current Crest Factor (50/60 Hz) | 2.5 @ 600 A |
| AC Voltage Range | 600.0 V |
| AC Voltage Resolution | 0.1 V |
| AC Voltage Accuracy | 1.0 % ± 5 digits (48 – 62 Hz) |
| DC Voltage Range | 600.0 V |
| DC Voltage Resolution | 0.1 V |
| DC Voltage Accuracy | 1 % ± 5 digits |
| Operating Altitude | 3000 meters |
| Storage Altitude | 12,000 meters |
| Resistance Range | 600.0 O/6000 O |
| Resistance Resolution | 0.1 O/1 O |
| Resistance Accuracy | 1 % ± 5 digits |
| Continuity Beeper | 30 Ohms |
| Size (L x W x H) | 232 mm x 85 mm x 45 mm |
