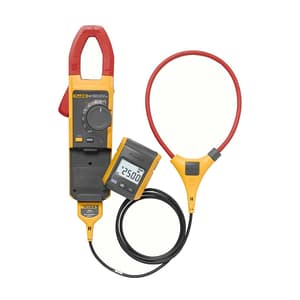

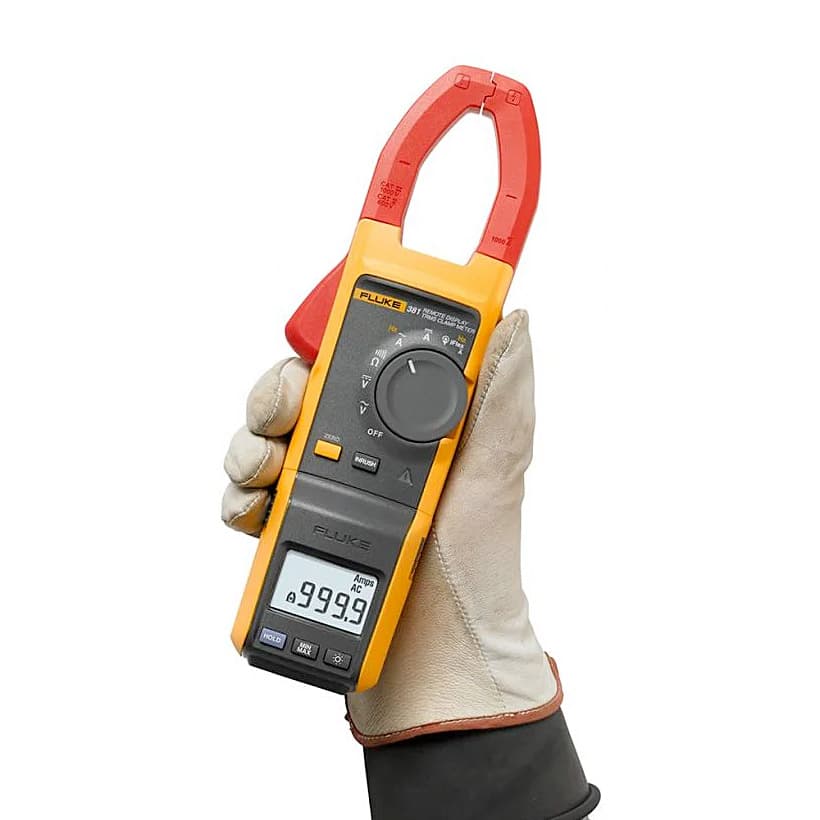

Fluke 381 1000A Remote Display True-RMS AC / DC Clamp Meter With iFlex
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 350 g
- DC Current Range: 999.9 A
- AC Voltage Range: 600 V /1000 V
- Jaw Opening: 34 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹99,039 (Incl. of all taxes)
₹83,931 + ₹15,108 GST (18%)
MRP was MRP ₹1,23,428
Save 32%
12 Business Days
1
90303900
Download Product LeafletNot available
Download Fluke CatalogueNot available
Download Fluke CatalogueNot available
Highlights
What Once Took Two People, Now Takes One
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

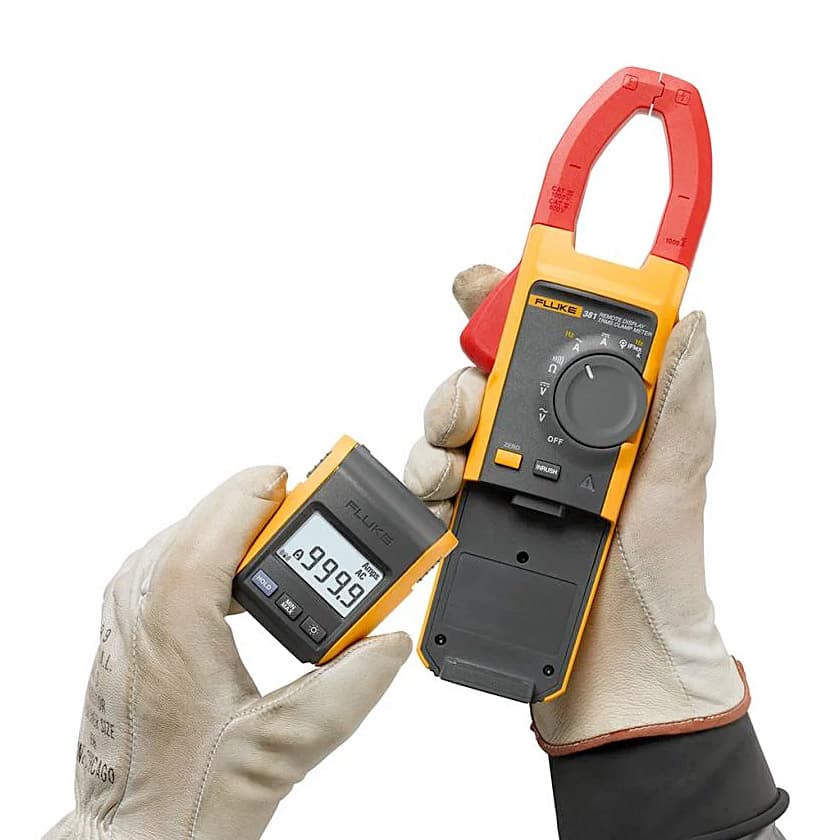

Now one technician can do jobs that would otherwise require two people. Clamp the Fluke 381 around a conductor, remove the display and walk across the room to operate controls or remove protective equipment, all while watching real-time readings.

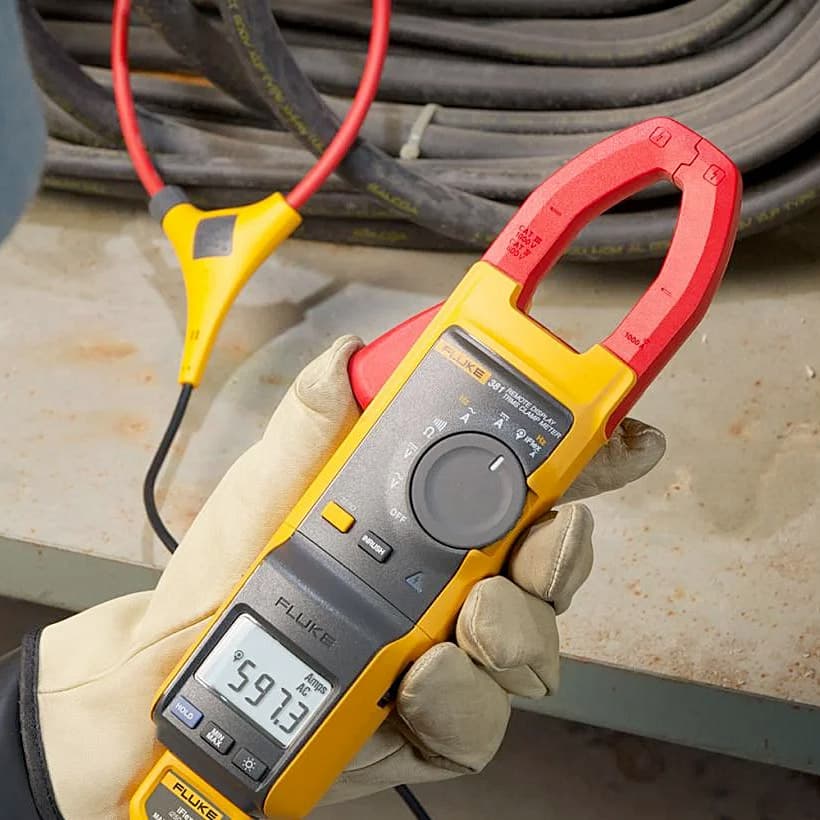

The iFlex® Flexible Current Probe (included) expands the measurement range to 2500 A AC while providing increased display flexibility. With a cord that runs 6 feet, you can finally measure those tight spaces, awkward sized conductors and disorganized wires.
Features:
- Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement with measurement accuracy
- Removable magnetic display can be mounted where it is easily seen
- iFlex® Flexible Current Probe expands the measurement range to 2500 A AC
- CAT IV 600 V, CAT III 1000 V
- Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- Ergonomic design fits in your hand and can be used while wearing protective equipment
- Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
- Three-year warranty
- Safety Conformance: IEC/EN 61010-1:2001, 1000V CAT III, 600V CAT IV
What's Included In This Package:
- 381 Remote Display Clamp Meter
- (1 pair) TL75 test leads
- (1 pair) AC175 alligator clips
- 18-inch iFlex®flexible current probe
- Soft carrying case
Electrical Specifications:
| AC Current via Jaw | |||
| Range | 999.9 A | ||
| Resolution | 0.1 A | ||
| Accuracy | 2% ± 5 digits (10-100 Hz) 5% ± 5 digits (100-500 Hz) |
||
| Crest Factor (50/60 Hz) | 3 @ 500 A 2.5 @ 600 A 1.42 @ 1000 A Add 2% for C.F. > 2 |
||
| AC Current via Flexible Current Probe | |||
| Range | 999.9 A / 2500 A (45 Hz – 500 Hz) | ||
| Resolution | 0.1 A / 1 A | ||
| Accuracy | 3% ± 5 digits | ||
| Crest Factor (50/60 Hz) | 3.0 at 1100 A 2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2 |
||
| Position Sensitivity | |||
| Distance from Optimum | |||
| i2500-10 Flex | i2500-18 Flex | Error | |
| A | 0.5 in (12.7 mm) | 1.4 in (35.6 mm) | ±0.5% |
| B | 0.8 in (20.3 mm) | 2.0 in (50.8 mm) | ±1.0% |
| C | 1.4 in (35.6 mm) | 2.5 in (63.5 mm) | ±2.0% |
| Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range. | |||
| DC Current | |||
| Range | 999.9 A | ||
| Resolution | 0.1 A | ||
| Accuracy | 2% ± 5 digits | ||
| AC Voltage | |||
| Range | 600 V /1000 V | ||
| Resolution | 0.1 V / 1 V | ||
| Accuracy | 1.5% ± 5 digits (20 – 500 Hz) | ||
| DC Voltage | |||
| Range | 600.0 V /1000 V | ||
| Resolution | 0.1 V / 1 V | ||
| Accuracy | 1% ± 5 digits | ||
| Frequency – Via Jaw | |||
| Range | 5.0 – 500.0 Hz | ||
| Resolution | 0.1 Hz | ||
| Accuracy | 0.5% ± 5 digits | ||
| Trigger Level | 5 – 10 Hz, ≥ 10 A 10 – 100 Hz, ≥ 5 A 100 – 500 Hz, ≥ 10 A |
||
| Frequency via Flexible Current Probe | |||
| Range | 5.0 to 500.0 Hz | ||
| Resolution | 0.1 Hz | ||
| Accuracy | 0.5% ± 5 digits | ||
| Trigger Level | 5 to 20 Hz, ≥ 25 A 20 to 100 Hz, ≥ 20 A 100 to 500 Hz, ≥ 25 A |
||
| Resistance | |||
| Range | 600 Ω/6 kΩ/60 kΩ | ||
| Resolution | 0.1 Ω/1 Ω/10 Ω | ||
| Accuracy | 1% ± 5 digits | ||
| Environmental Specifications | |||
| Operating Humidity | Non condensing (< 10°C) ≤ 90% RH (at 10°C to 30°C) ≤ 75% RH (at 30°C to 40°C) ≤ 45% RH (at 40°C to 50°C) (Without Condensation) |
||
| EMI, RFI, EMC, RF | EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006 ETSI EN 300 489 V1.8.1:2008 FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID: T68-F381 RSS-210 IC: 6627A-F381 |
||
| Safety Compliance | ANSI/ISA S82.02.01:2004 CAN/CSA-C22.2 No. 61010-1-04 IEC/EN 61010-1:2001 to 1000V CAT III, 600V CAT IV. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| DC Current Range | 999.9 A |
|---|---|
| AC Voltage Range | 600 V /1000 V |
| DC Voltage Range | 600.0 V /1000 V |
| Jaw Opening | 34 mm |
| Flexible Current Probe Diameter | 7.5 mm |
| Flexible Current Probe Cable Length (head to electronics connector) | 1.8 Mtr |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +60°C |
| Operating Altitude | 2,000 meters |
| Storage Altitude | 12,000 meters |
| Temperature Coefficients | Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C |
| Wireless Frequency | 2.4 GHz ISM Band 10 meter range |
| Double Insulation Clearance | Per IEC 61010-2-032 |
| Double Insulation Creepage | Per IEC 61010-1 |
| Size (L x W x H) | 277 x 88 x 43 mm (55 mm for remote unit) |
