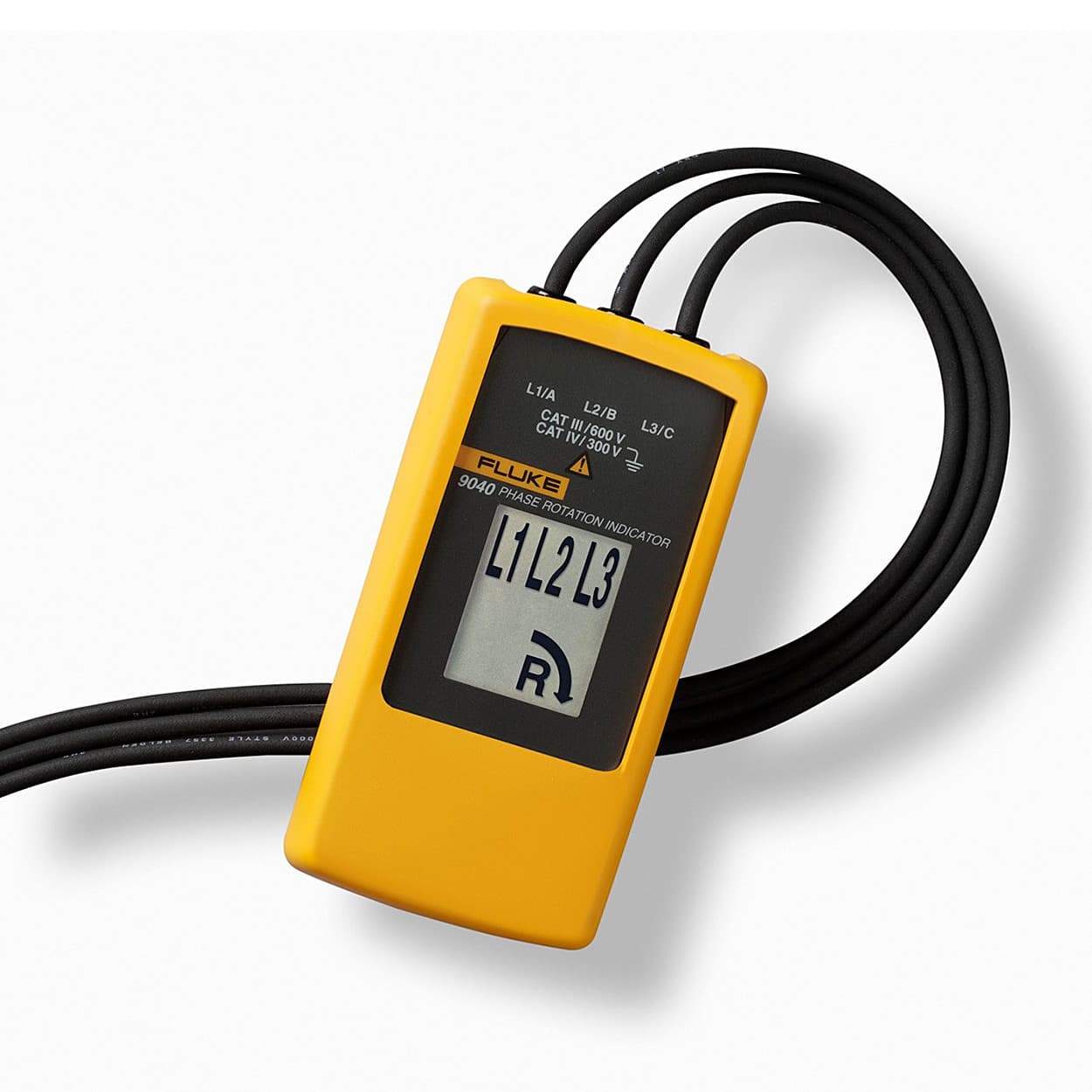

Fluke 9040 40V - 700V Phase Rotation Indicator
Roll over the image to zoom in
Key Features
- Product Type: Electrical Testers
- Weight: 200 g
- Voltage Range: 40-700 V
- Frequency Range: 15-400 Hz
- Operating Timer: Continuous
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹59,271 (Incl. of all taxes)
₹50,230 + ₹9,041 GST (18%)
MRP was MRP ₹73,868
Save 32%
12 Business Days
1
90303900
Download Fluke CatalogueNot available
Highlights

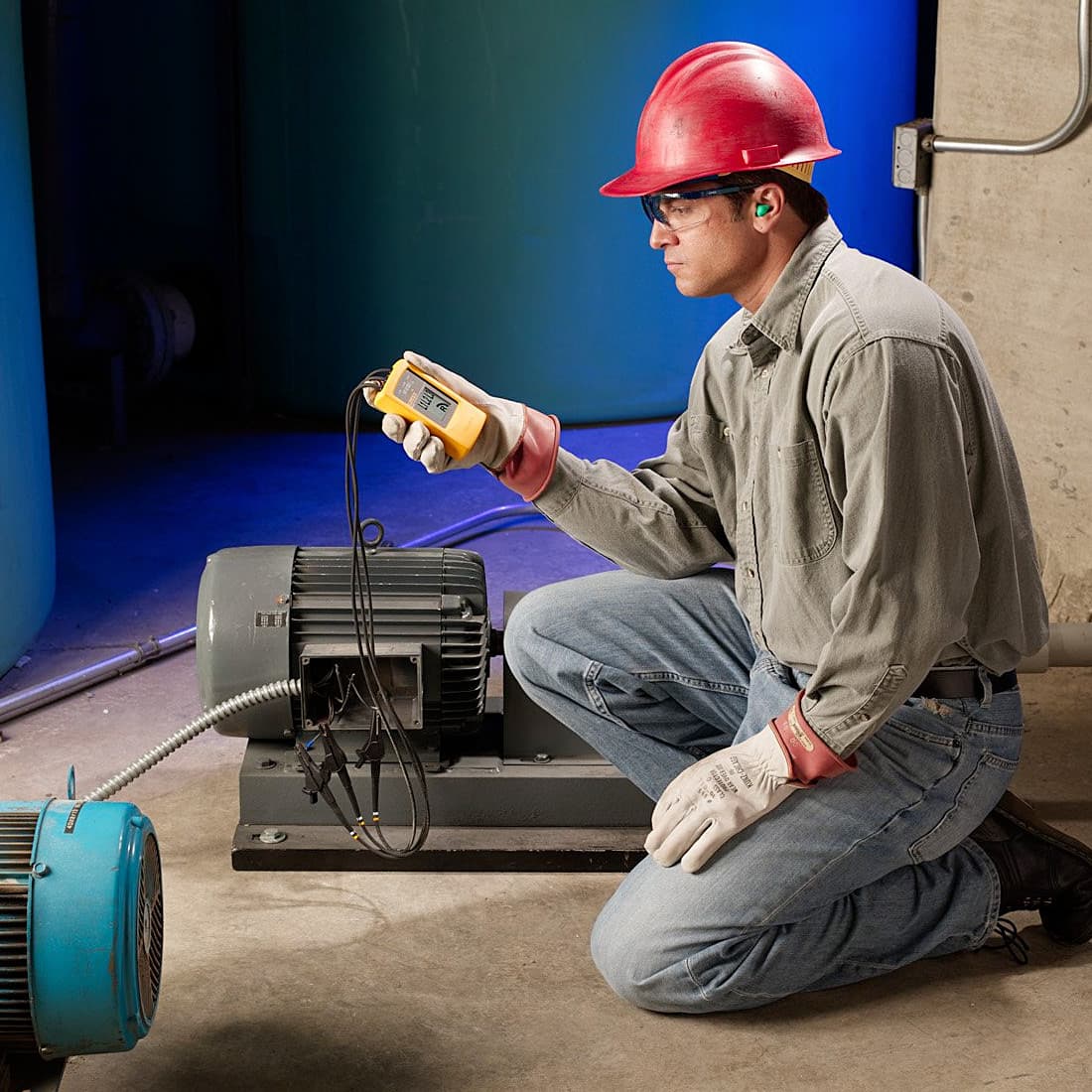

The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections.
It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.
Features:
- 3 phase indication
- Indication of phase rotation
- Clear LCD display
- No battery required.

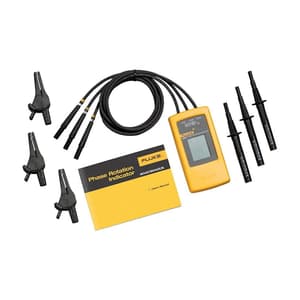

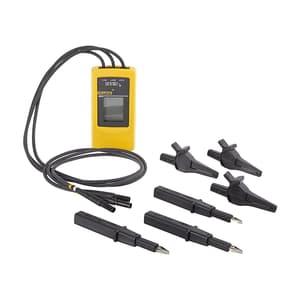

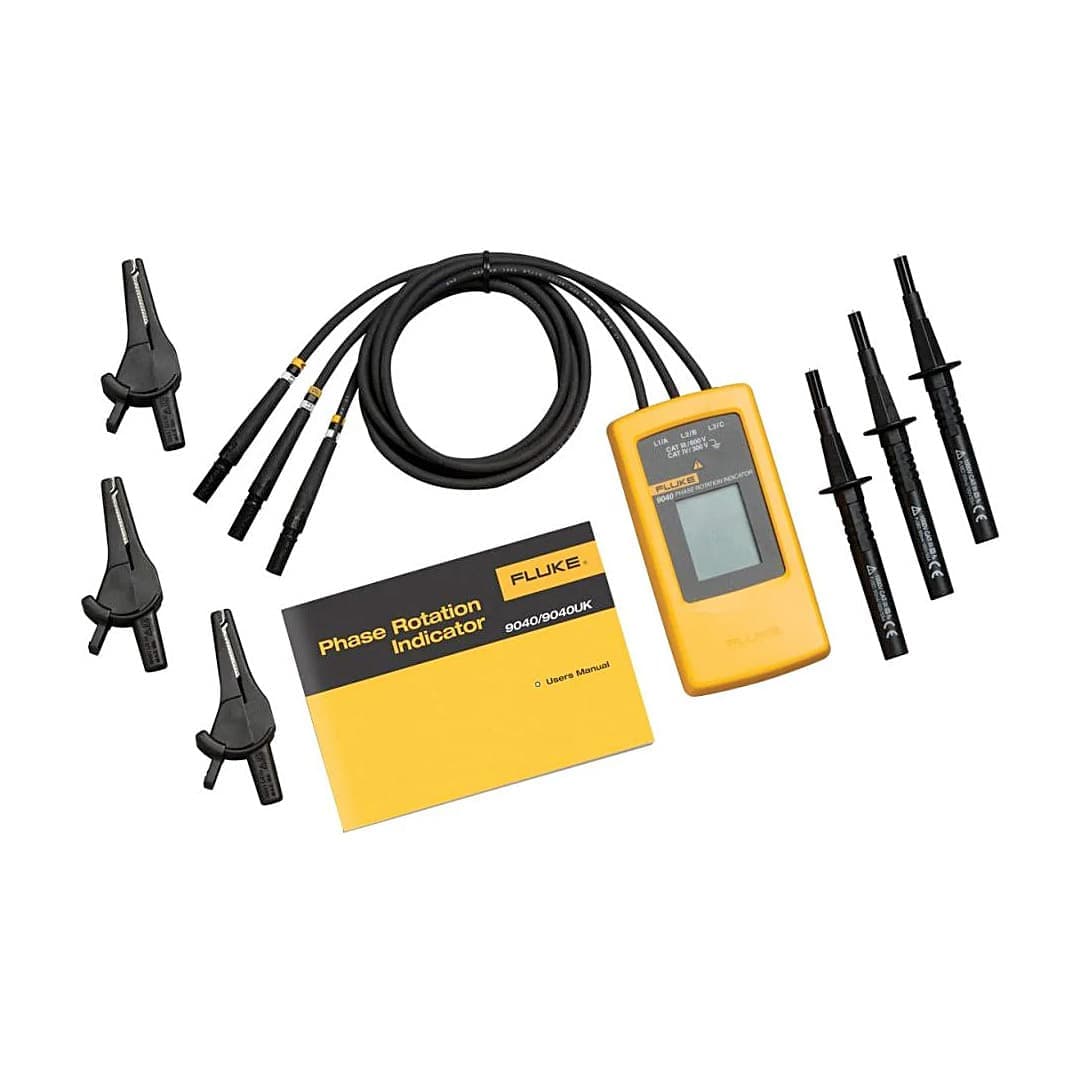

What's Included In This Package:
- Fluke 9040 Phase Rotation Indicator
- 3 self-retaining test probes (black)
- Alligator clip
- User manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Voltage Range | 40-700 V |
|---|---|
| Frequency Range | 15-400 Hz |
| Operating Timer | Continuous |
| Operating Temperature | 0°C to 40°C |
| Dust/Water Resistance | IP 40 |
| Electrical Safety | EN 61010, EN 61557-7 |
| Overvoltage category | CAT III, 600 V / CAT IV, 300V |
| Power supply | From unit under test |
| Warranty | 2 years |
| Size | 124 x 61 x 27 mm |
